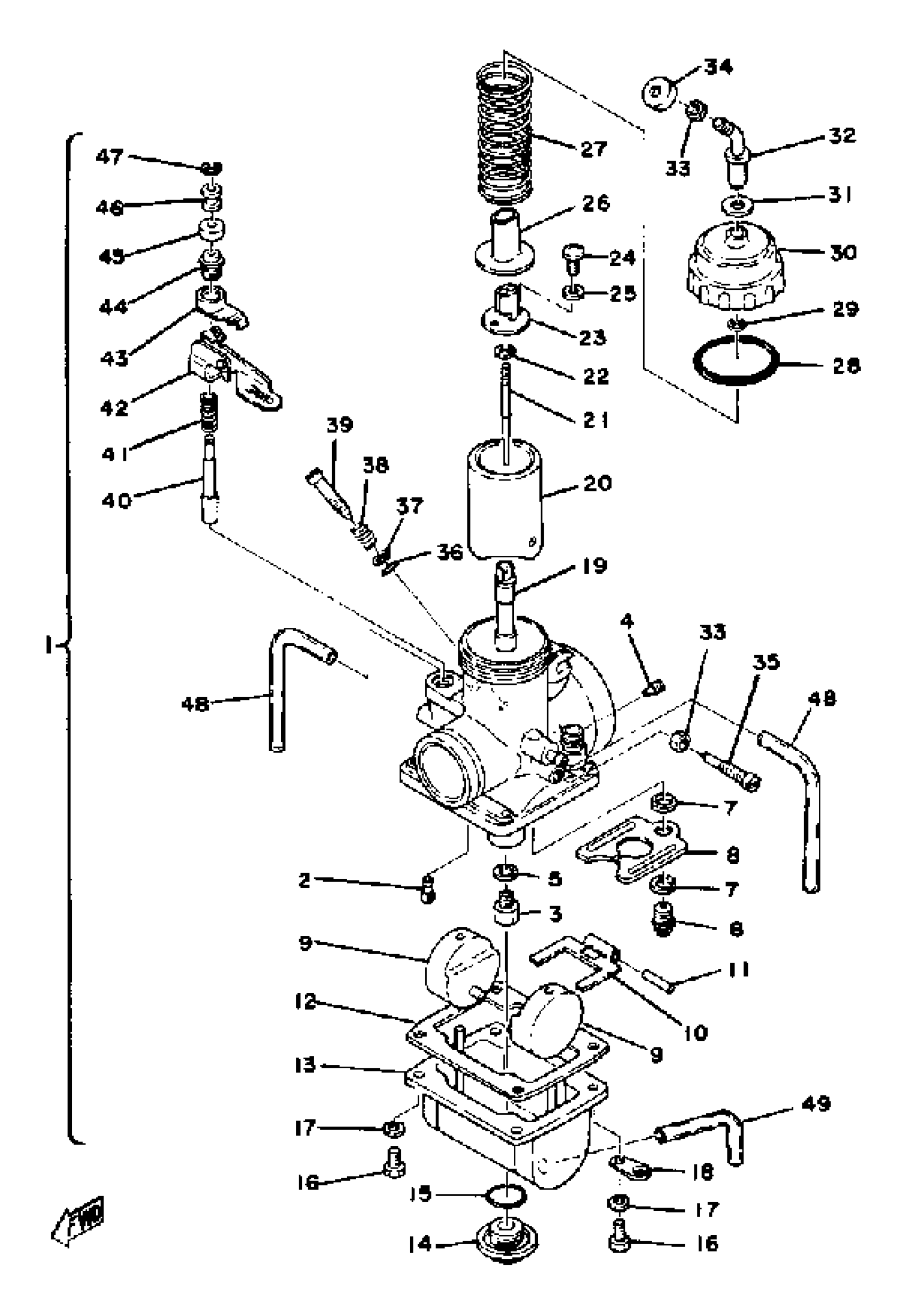

Yamaha YZ125A (YZ125A) 1974 CARBURETOR YZ125D Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(1W1-14101-01-00)

Unavailable

2

. JET, PILOT #60

193-14142-60-00

Unavailable

3

JET, MAIN #300

137-14143-60-A0

$11.99

3

JET, MAIN #310

137-14143-62-A1

Unavailable

3

JET, MAIN #320

137-14143-64-00

Unavailable

4

JET, AIR (#2.0)

239-14172-20-00

$8.99

5

WASHER, MAIN JET

(1G8-14153-00-00)

Unavailable

6

NEEDLE VALVE SET

24X-14107-33-00

$50.99

7

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

8

. PLATE

483-14146-00-00

Unavailable

9

. FLOAT

310-14185-00-00

Unavailable

10

. ARM, FLOAT

310-14187-00-00

Unavailable

11

PIN, FLOAT

127-14186-00-00

$6.65

12

GASKET, FLOAT CHAMBER

483-14184-00-00

$22.99

13

BODY, FLOAT CHAMBER 1

(310-14181-16-00)

Unavailable

14

PLUG, SCREW

500-14115-00-00

Unavailable

15

O-RING (541)

558-14147-00-00

Unavailable

16

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

. PLATE

313-14146-00-00

Unavailable

19

. NOZZLE, MAIN P-8

239-14141-48-00

Unavailable

20

. VALVE, THROTTLE 1

509-14112-30-00

Unavailable

21

NEEDLE

(1W1-14116-22-00)

Unavailable

22

CLIP

3FA-14137-00-00

Unavailable

23

. CONNECTOR

509-14274-00-00

Unavailable

24

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

25

WASHER, SPRING

92990-03100-00

Unavailable

26

. SEAT, SPRING

509-14136-00-00

Unavailable

27

. SPRING, THROTTLE VALVE

363-14131-00-00

Unavailable

28

. O-RING

93210-40289-00

Unavailable

29

CLIP

363-14137-00-00

Unavailable

30

. TOP, MIXING CHAMBER (500-14158-00-33)

500-14158-00-00

Unavailable

31

GASKET

509-14198-00-00

Unavailable

32

. GUIDE, CABLE

500-14155-00-00

Unavailable

33

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

34

CAP

3X3-14169-00-00

Unavailable

35

THROTTLE SCREW SET

40T-14103-00-00

Unavailable

36

. O-RING

6K8-14562-00-00

Unavailable

37

WASHER,NEEDLE

812-14235-00-00

Unavailable

38

. SPRING, AIR ADJUSTING

137-14134-00-00

Unavailable

39

. SCREW, AIR ADJUSTING

1G8-14123-00-00

Unavailable

40

. PLUNGER, STARTER

1W1-14171-00-00

Unavailable

41

. SPRING, PLUNGER

256-14135-00-00

Unavailable

42

. LEVER, STARTER 1

1W1-14175-01-00

Unavailable

43

. PLATE, STARTER LEVER

275-14178-00-00

Unavailable

44

. CAP, PLUNGER

802-14174-00-00

Unavailable

45

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

46

. RING

583-14918-00-00

Unavailable

47

CLIP

137-14137-00-00

Unavailable

48

HOSE

89A-14987-00-00

Unavailable

49

PIPE, OVER FLOW

2J2-14196-00-00

Unavailable
