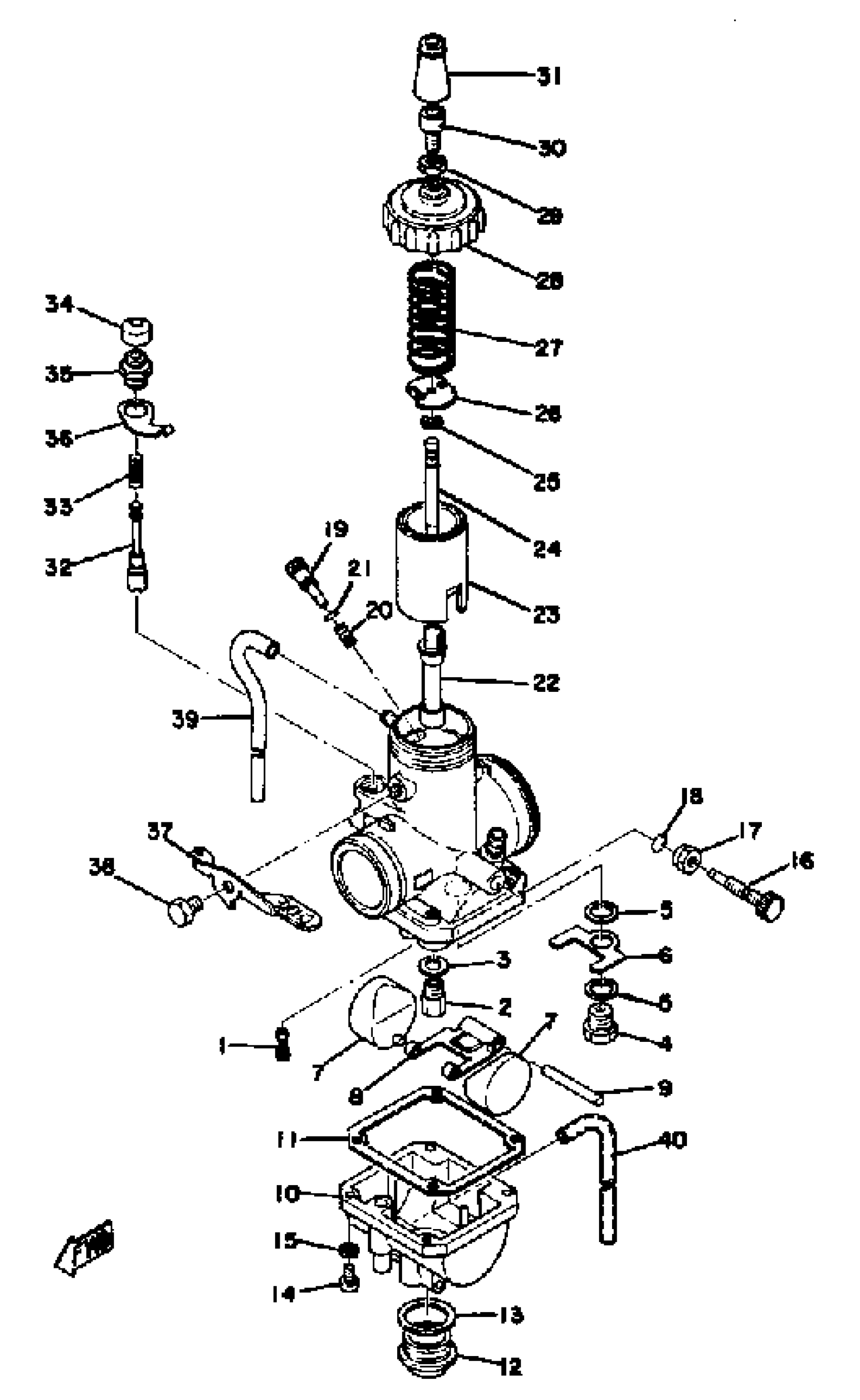

Yamaha YZ125A (YZ125A) 1974 CARBURETOR YZ125C Diagram

#

Description
Price

1

. JET, PILOT #60

193-14142-60-00

Unavailable

1

CARBURETOR ASSEMBLY 1

(537-14101-01-00)

Unavailable

2

JET, MAIN #180

137-14143-36-A1

Unavailable

2

JET,MAIN #190

137-14143-38-A0

Unavailable

2

JET, MAIN #200

137-14143-40-A1

$13.49

3

WASHER, MAIN JET

(346-14153-70-00)

Unavailable

4

VALVE SEAT ASSY

168-14190-28-00

$36.99

5

WASHER, VALVE SEAT

214-14195-00-00

$7.99

6

PLATE

(537-14146-00-00)

Unavailable

7

. FLOAT

280-14185-00-00

Unavailable

8

. ARM, FLOAT

280-14187-00-00

Unavailable

9

PIN, FLOAT

537-14186-00-00

$7.99

10

BODY, FLOAT CHMBR 1

(537-14181-00-33)

Unavailable

11

. GASKET, FLOAT CHAMBER

537-14184-00-00

Unavailable

12

. PLUG, SCREW

(278-14115-00-00)

Unavailable

13

WASHER,SCREW PLUG

278-14117-00-00

Unavailable

14

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

15

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

16

. SCREW, THROTTLE

537-14122-00-00

Unavailable

17

. NUT, CABLE ADJUSTING

537-14161-00-00

Unavailable

18

O-RING

214-14147-00-00

Unavailable

19

AIR SCREW SET

10W-14104-00-00

Unavailable

20

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

21

O-RING (493-CARB.)

354-14147-00-00

Unavailable

22

NOZZLE, MAIN

(278-14141-44-00)

Unavailable

23

VALVE, THROTTLE 1

(537-14112-30-00)

Unavailable

24

. NEEDLE

275-14116-01-00

Unavailable

25

CLIP

3FA-14137-00-00

Unavailable

26

. SEAT, SPRING

537-14136-00-00

Unavailable

27

. SPRING, THROTTLE VALVE

537-14131-00-00

Unavailable

28

TOP, MIXING CHAMBER

(312-14158-00-00)

Unavailable

29

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

30

. SCREW, CABLE ADJUSTING

360-14124-20-00

Unavailable

31

CAP

(525-14169-00-00)

Unavailable

32

. PLUNGER, STARTER

174-14171-00-00

Unavailable

33

. SPRING, PLUNGER

500-14135-00-00

Unavailable

34

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

35

. CAP, PLUNGER

802-14174-00-00

Unavailable

36

. PLATE, STARTER LEVER

537-14178-00-00

Unavailable

37

. LEVER, STARTER 1

537-14175-00-00

Unavailable

38

. PIPE, OVERFLOW

310-14196-00-00

Unavailable

38

. BOLT, HOLDING

537-14162-00-00

Unavailable

40

PIPE, AIR VENT

183-14197-01-00

Unavailable
