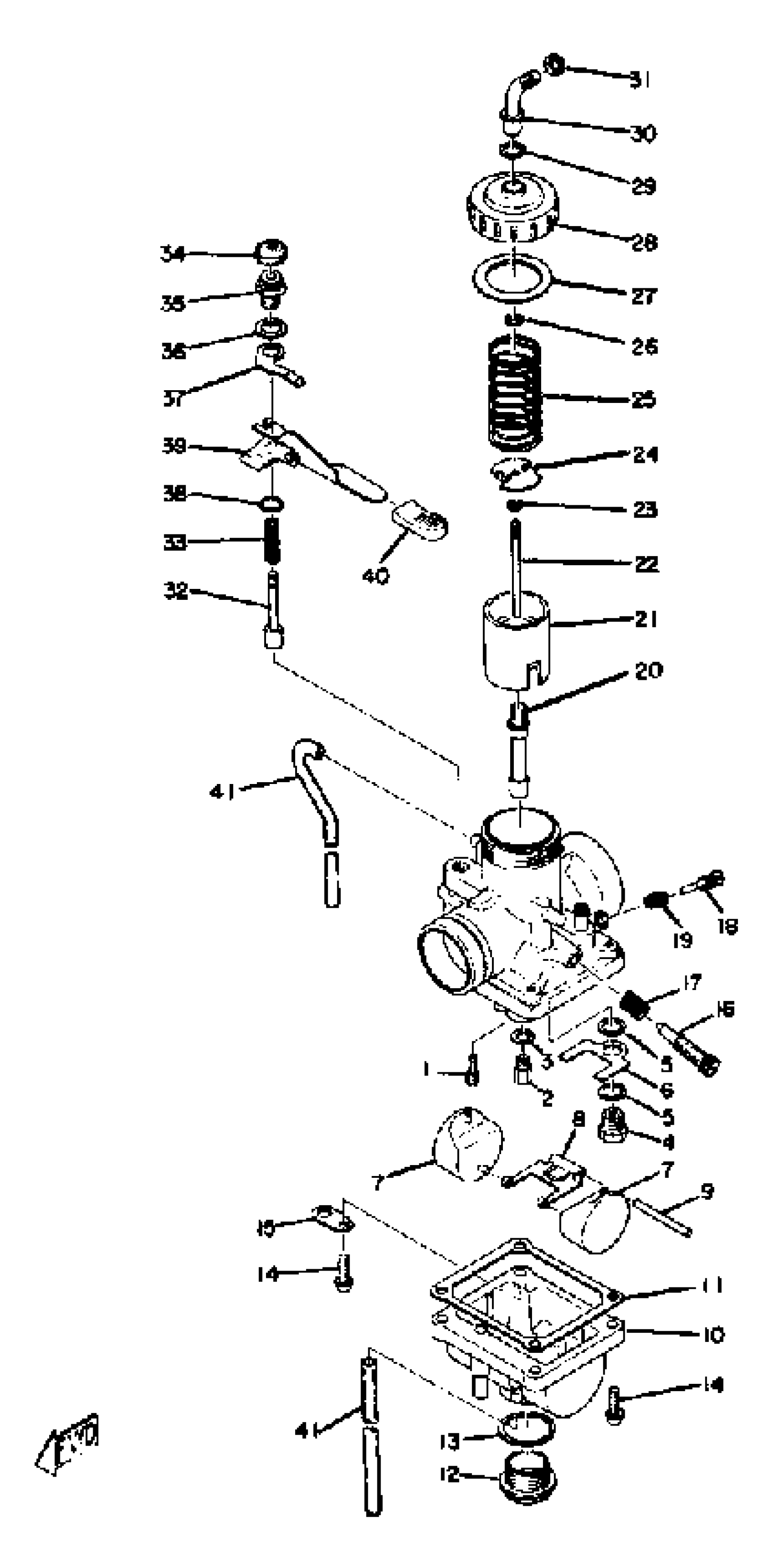

Yamaha YZ125A (YZ125A) 1974 CARBURETOR YZ125A - B Diagram

#

Description

Price

1

. JET, PILOT #60

193-14142-60-00

Unavailable

1

CARBURETOR ASSEMBLY 1

(401-14101-01-00)

Unavailable

2

JET, MAIN #180

137-14143-36-A1

Unavailable

2

JET,MAIN #190

137-14143-38-A0

Unavailable

2

JET, MAIN #200

137-14143-40-A1

$13.49

3

WASHER, MAIN JET

(346-14153-70-00)

Unavailable

4

NEEDLE VALVE SET

23L-14107-25-00

$42.99

5

WASHER, VALVE SEAT

214-14195-00-00

$7.99

6

PLATE

(346-14146-70-00)

Unavailable

7

. FLOAT

280-14185-00-00

Unavailable

8

. ARM, FLOAT

280-14187-00-00

Unavailable

9

PIN, FLOAT

127-14186-00-00

$6.65

10

BODY, FLOAT CHMBR 1

(278-14181-00-33)

Unavailable

11

. GASKET, FLOAT CHAMBER

278-14184-00-00

Unavailable

12

. PLUG, SCREW

(278-14115-00-00)

Unavailable

13

WASHER,SCREW PLUG

278-14117-00-00

Unavailable

14

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

15

PLATE

132-14146-00-00

Unavailable

16

THROTTLE SCREW SET

40T-14103-00-00

Unavailable

17

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

18

AIR SCREW SET

23X-14104-00-00

Unavailable

19

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

20

NOZZLE, MAIN

(278-14141-28-00)

Unavailable

21

VALVE, THROTTLE 1

(278-14112-25-00)

Unavailable

22

. NEEDLE

644-14116-03-00

Unavailable

23

CLIP

137-14137-00-00

Unavailable

24

. SEAT, SPRING 000

401-14136-00-00

Unavailable

25

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

26

CLIP

363-14137-00-00

Unavailable

27

GASKET

246-14126-00-00

Unavailable

28

. TOP, MXXING CHAMBER

401-14158-00-00

Unavailable

29

GASKET

363-14198-00-00

Unavailable

30

. GUIDE, CABLE

363-14155-00-00

Unavailable

31

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

32

. PLUNGER, STARTER

278-14171-00-00

Unavailable

33

. SPRING, PLUNGER

256-14135-00-00

Unavailable

34

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

35

. CAP, PLUNGER

(278-14174-00-00)

Unavailable

36

WASHER, STARTER LVR

(132-14179-00-00)

Unavailable

37

. PLATE, STARTER LVR

(402-14178-00-00)

Unavailable

38

O-RING (248)

93220-09001-00

Unavailable

39

. LEVER, STARTER LH

360-14175-00-00

Unavailable

40

. CAP

(360-14169-00-00)

Unavailable

41

PIPE, AIR VENT

183-14197-01-00

Unavailable
