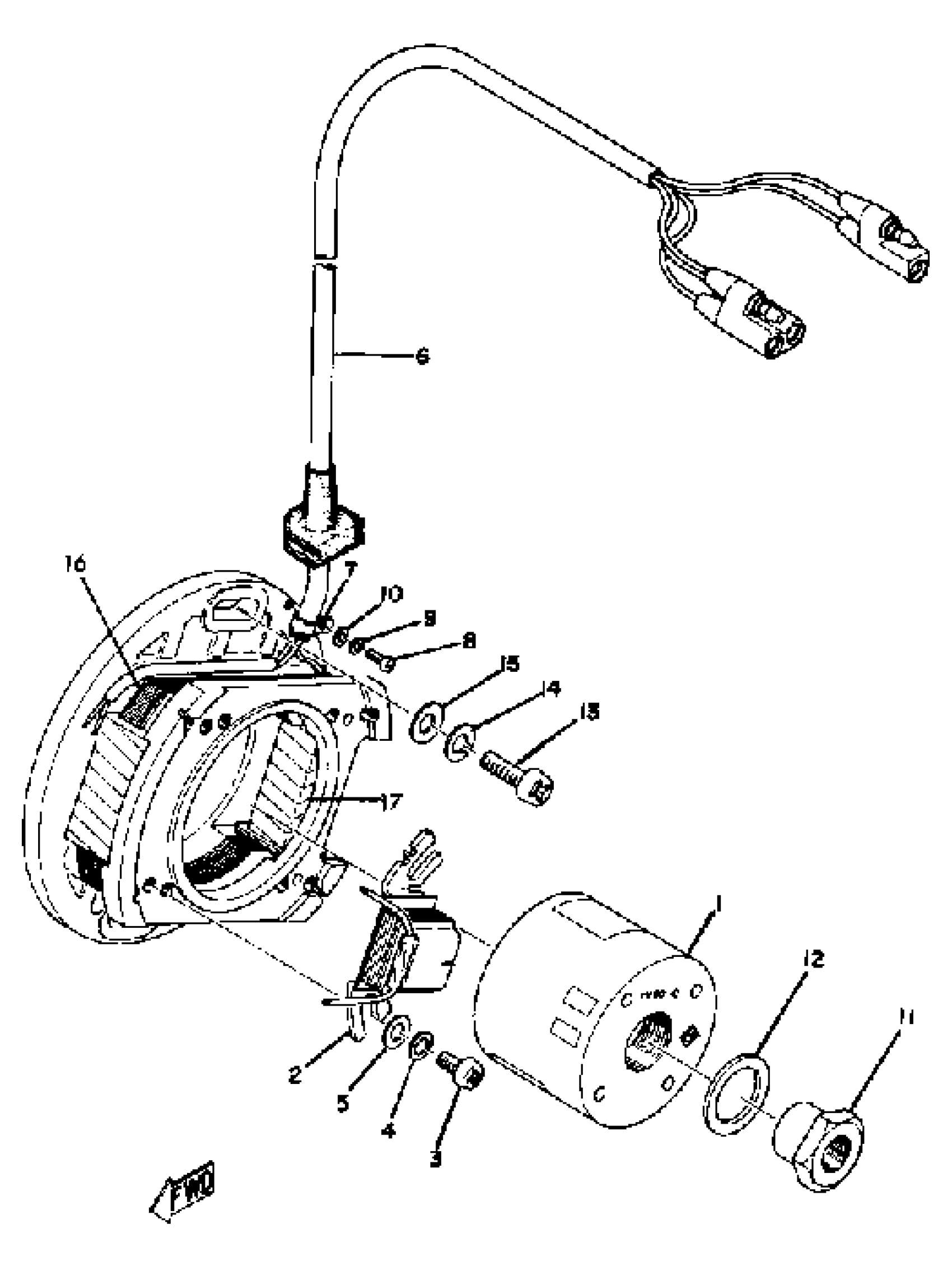

Yamaha YZ125A (YZ125A) 1974 C - D - I - MAGNETO YZ125A - B Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(401-85500-11-00)

Unavailable

1

ROTOR ASSEMBLY

(401-85550-10-00)

Unavailable

2

. COIL PULSER

364-85543-10-00

Unavailable

3

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

. WASHER, PLAIN

92990-05200-00

Unavailable

6

LEAD WIRE ASSEMBLY

(401-85515-10-00)

Unavailable

7

. CLAMP

109-81328-11-00

Unavailable

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

11

. NUT, ROTOR

322-85553-10-00

Unavailable

12

. WASHER, ROTOR

322-85554-10-00

Unavailable

13

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

16

COIL, CHARGE 1

(322-85566-10-00)

Unavailable

17

COIL, CHARGE 2

(322-85567-10-00)

Unavailable
