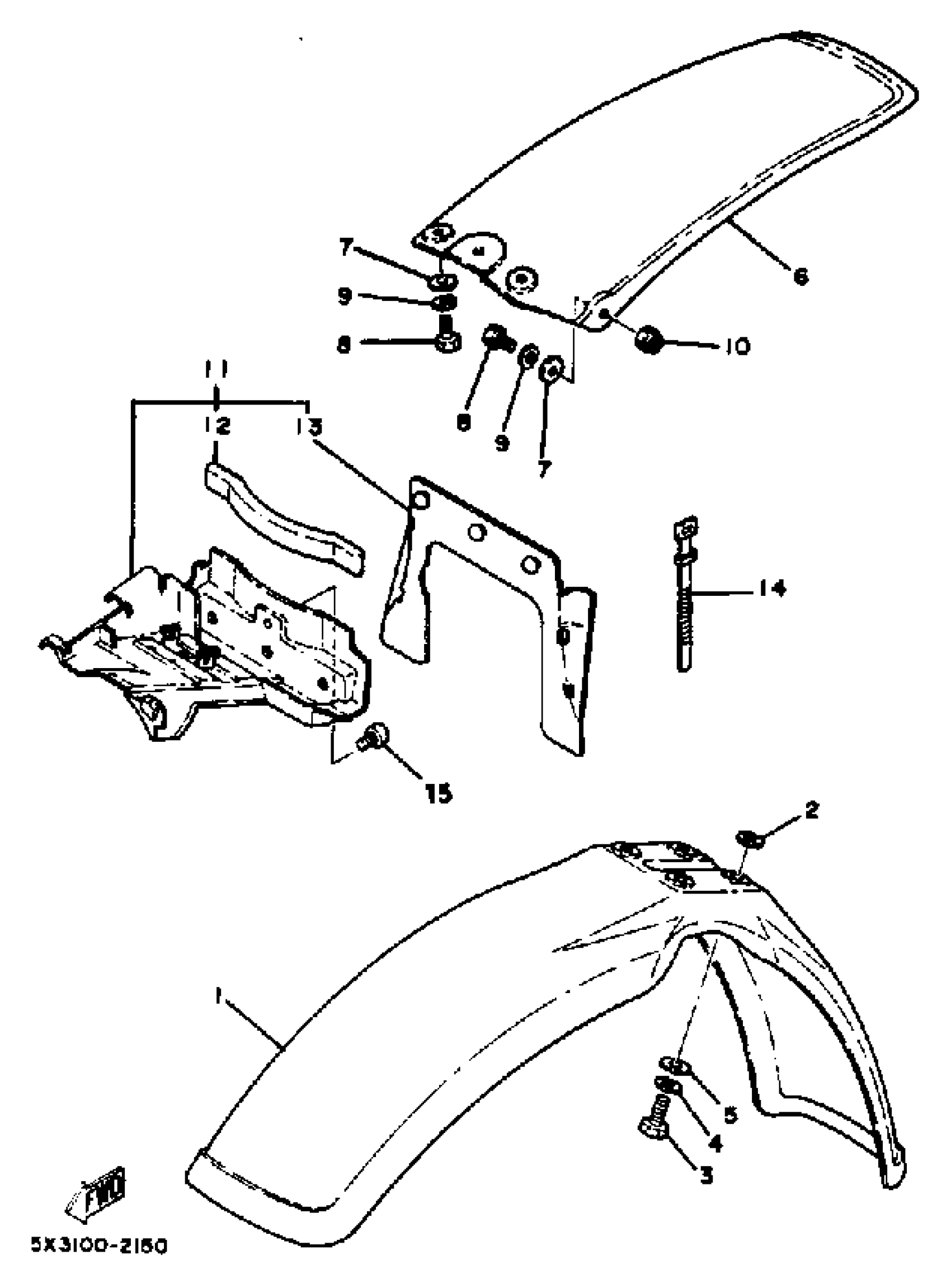

Yamaha YZ100K (YZ100K) 1983 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5X6-21511-01-00

$43.99

2

WASHER, PLATE

90201-06020-00

$9.49

3

BOLT(3DM)

97024-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER (3R8)

90209-06187-00

$8.49

6

FENDER, REAR

3R3-21611-01-00

Unavailable

7

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

GUARD, MUD

(5X3-21620-00-00)

Unavailable

12

. DAMPER

565-21746-00-00

Unavailable

13

. GUARD, FLAP

5X3-21642-00-00

Unavailable

14

BAND, SWITCH CORD

437-83936-01-00

$7.99

15

SCREW, WITH WASHER

(90159-06074-00)

Unavailable
