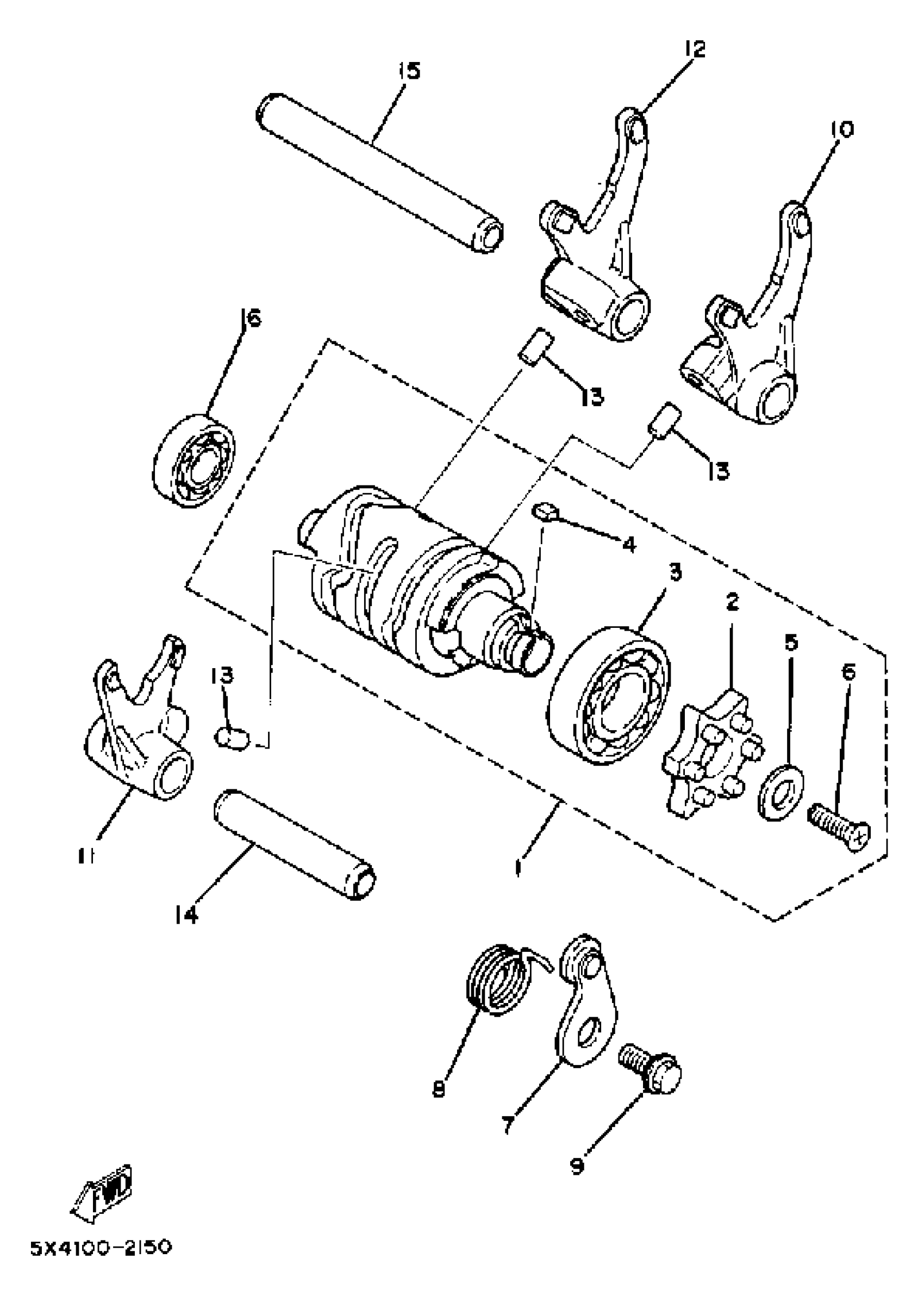

Yamaha YZ100J (YZ100J) 1982 SHIFT CAM - FORK Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

24X-18540-00-00

Unavailable

2

SEGMENT

3R4-18185-00-00

$22.99

3

BEARING(3BN)

93306-00438-00

$37.99

4

KEY, STRAIGHT (3R4)

90282-04036-00

$8.49

5

PLATE, SIDE 1

3R4-18561-00-00

$7.99

6

SCREW, FLAT

98707-05016-00

$7.99

7

STOPPER LEVER ASSEMBLY

3R3-18140-00-00

Unavailable

8

SPRING, TORSION

90508-26515-00

Unavailable

9

BOLT

90109-06190-00

$4.72

10

FORK, SHIFT 1

3R3-18511-00-00

Unavailable

11

FORK, SHIFT 2

3R3-18512-00-00

Unavailable

12

FORK, SHIFT 3

3R3-18513-00-00

Unavailable

13

PIN STRAIGHT 257185520000

90250-06013-00

$9.49

14

BAR, SHIFT FORK GUIDE 1

4BA-18531-00-00

Unavailable

15

BAR, SHIFT FORK GUIDE 2

5X5-18535-01-00

Unavailable

16

BEARING(3WF)

93306-20119-00

Unavailable
