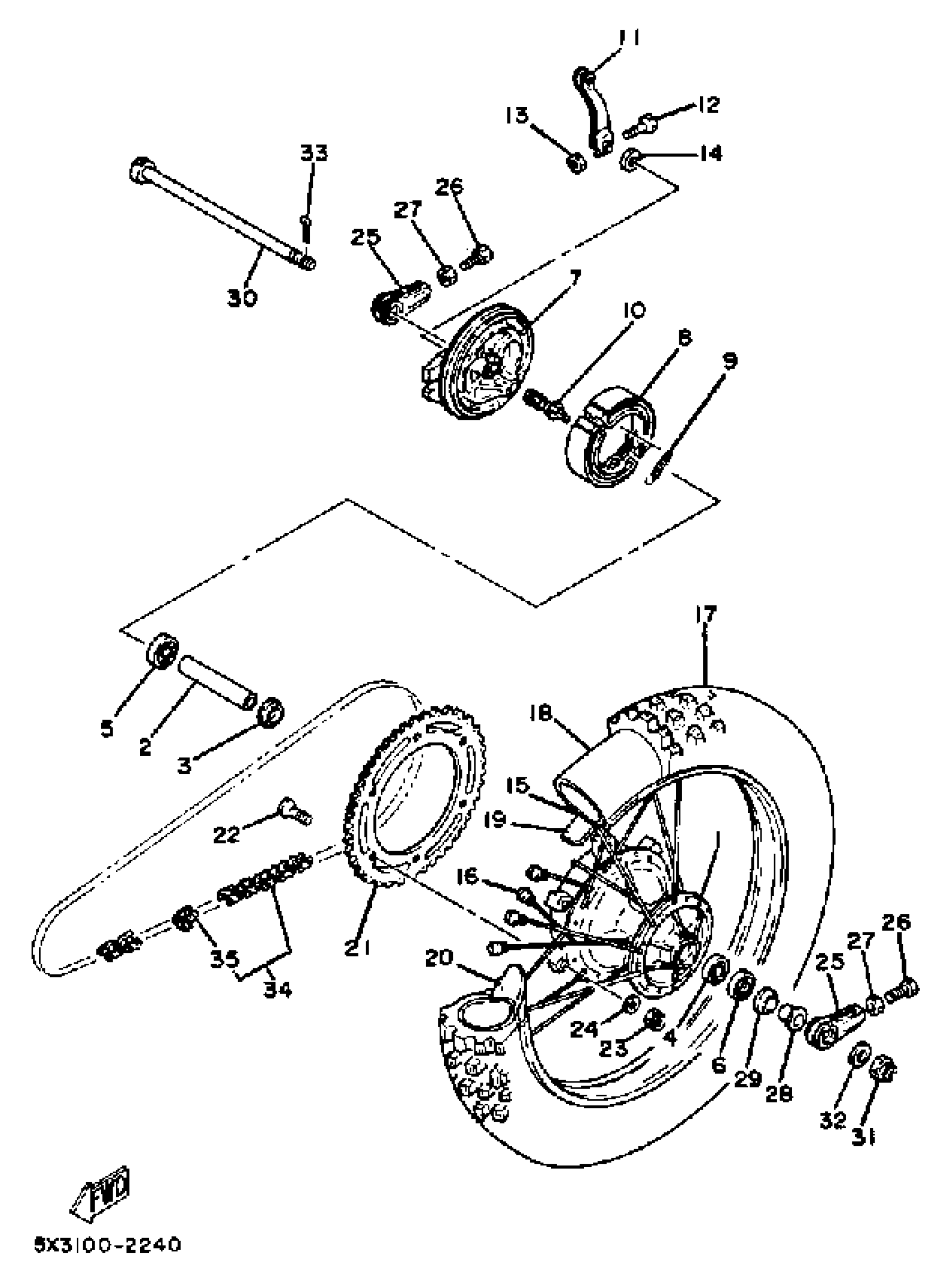

Yamaha YZ100J (YZ100J) 1982 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

3R3-25311-02-98

Unavailable

2

SPACER, BEARING

3R3-25317-00-00

Unavailable

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING

93306-20205-00

$38.99

5

BEARING

93306-30212-00

$40.99

6

OIL SEAL, DD-TYPE

93106-22017-00

Unavailable

7

PLATE BRAKE SHOE

99999-02405-00

Unavailable

8

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

9

SPRING (5T9)

90506-17328-00

Unavailable

10

CAMSHAFT

26A-25351-00-00

Unavailable

11

LEVER, CAMSHAFT

3R6-25355-01-00

Unavailable

12

BOLT, HEXAGON (538)

90101-06278-00

$2.17

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

SEAL, CAM SHAFT

148-25359-00-00

$4.78

15

RIM 1.85X18

94418-18245-00

Unavailable

16

SPOKE SET, REAR

4V2-25304-00-00

Unavailable

17

120/90-18 MK2-TT (110/90-18 61M)

94112-182F7-00

Unavailable

18

TUBE (2RH)

94232-18113-00

Unavailable

19

BAND, RIM (2J4)

94340-18086-00

Unavailable

20

SPACER, BEAD

2X3-25394-00-00

Unavailable

21

SPROCKET, DRIVEN 46T

3R4-25446-01-XX

Unavailable

21

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

21

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

21

SPROCKET, DRIVEN 52T

3R4-25452-01-XX

Unavailable

22

BOLT, HEX SKT HEAD

90110-08038-00

Unavailable

23

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

24

WASHER, PLAIN

92990-08200-00

Unavailable

25

PULLER, CHAIN 1

537-25388-00-00

Unavailable

26

BOLT

90101-08060-00

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

COLLAR

90387-15791-00

Unavailable

29

COVER, HUB DUST

3R3-25367-00-00

Unavailable

30

AXLE, WHEEL

5X3-25381-00-00

Unavailable

31

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

32

WASHER (525)

90201-15238-00

Unavailable

33

PIN, COTTER

91490-30030-00

Unavailable

34

520 DS 106L

94585-20106-00

Unavailable

35

JOINT, CHAIN

94681-68001-00

Unavailable
