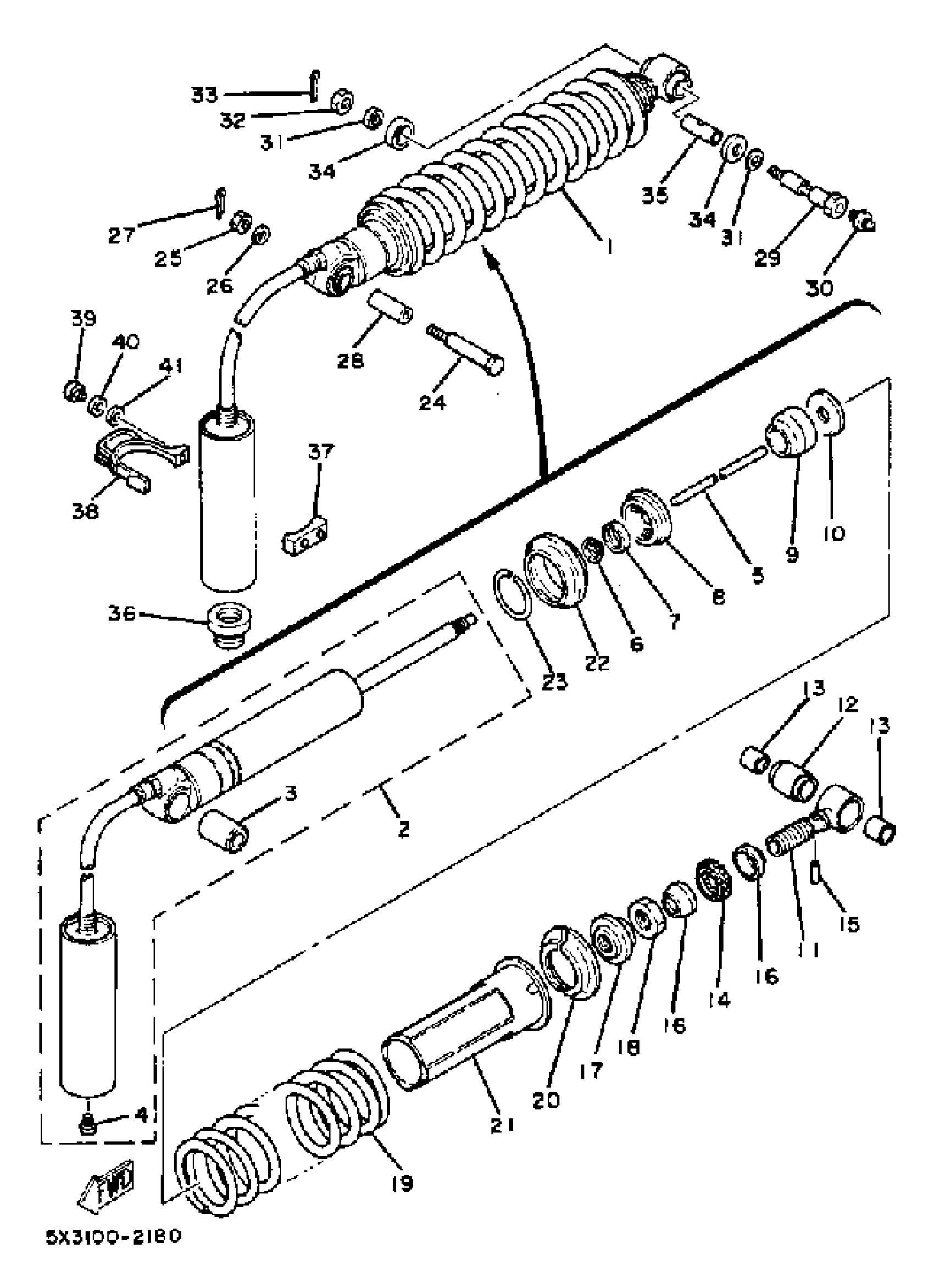

Yamaha YZ100J (YZ100J) 1982 REAR SUSPENSION Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR

(5X3-22210-00-00)

Unavailable

2

DAMPER SUB-ASSEMBLY.

(5X3-22401-00-00)

Unavailable

3

BUSH, RR SHOCK ABS

(5X6-22216-00-00)

Unavailable

4

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

5

ROD, PUSH

(5X3-22489-00-00)

Unavailable

6

SEAL,DUST

23X-22475-01-00

Unavailable

7

SEAL,DUST

23X-22475-01-00

Unavailable

8

. CAP, CASE 001

26A-22472-00-00

Unavailable

9

BUMP, STOP

(5X3-22493-00-00)

Unavailable

10

. SUPPORT, BUMP STOP

3R4-22228-00-00

Unavailable

11

UPPER BRKT SUB ASSEMBLY

(5X3-22409-00-00)

Unavailable

12

. BUSH, SHOCK ABS LWR

5X6-22226-00-00

Unavailable

13

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

$14.99

14

. NUT, ADJUSTING

5X3-22497-00-00

Unavailable

15

. PIN, DOWEL

93604-26132-00

Unavailable

16

. COVER

3R4-22221-01-00

Unavailable

17

. SEAT, SPRING UPPER

3R4-22213-00-00

Unavailable

18

NUT, HEXAGON (29L)

90170-20320-00

Unavailable

19

SPRING

(5X3-22212-00-00)

Unavailable

19

SPRING, MXS HARD

(5Y0-22212-00-00)

Unavailable

20

GUIDE, SPRING 1

3P6-22214-10-00

Unavailable

21

GUIDE, SPRING 2

(5X3-22224-00-00)

Unavailable

22

. SEAT, SPRING LOWER

3R4-22223-00-00

Unavailable

23

. CIRCLIP, OUTER

93440-50078-00

Unavailable

24

BOLT (1M1)

90109-10453-00

Unavailable

25

NUT (682)

95380-10700-00

Unavailable

26

WASHER (7A9)

90201-100F7-00

Unavailable

27

PIN, COTTER

91490-20025-00

Unavailable

28

BUSHING, REAR ARM INNER

2J5-22124-00-00

Unavailable

29

BOLT

(90109-10648-00)

Unavailable

30

NIPPLE, GREASE

93700-06M03-00

Unavailable

31

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

32

NUT, U

95617-10100-00

Unavailable

33

PIN, COTTER

91490-25020-00

Unavailable

34

COVER, THRUST 2

5X6-22129-00-00

Unavailable

35

BUSHING, REAR ARM INNER

2J5-22124-00-00

Unavailable

36

GROMMET (3R4)

90480-22263-00

Unavailable

37

DAMPER, SUB TANK

5X4-22261-00-00

Unavailable

38

HOLDER, SUB TANK

3R3-22262-00-00

Unavailable

39

SCREW, PAN

98507-06014-00

Unavailable

40

WASHER, SPRING

92995-06100-00

Unavailable

41

WASHER, PLAIN (646)

92990-06600-00

Unavailable
