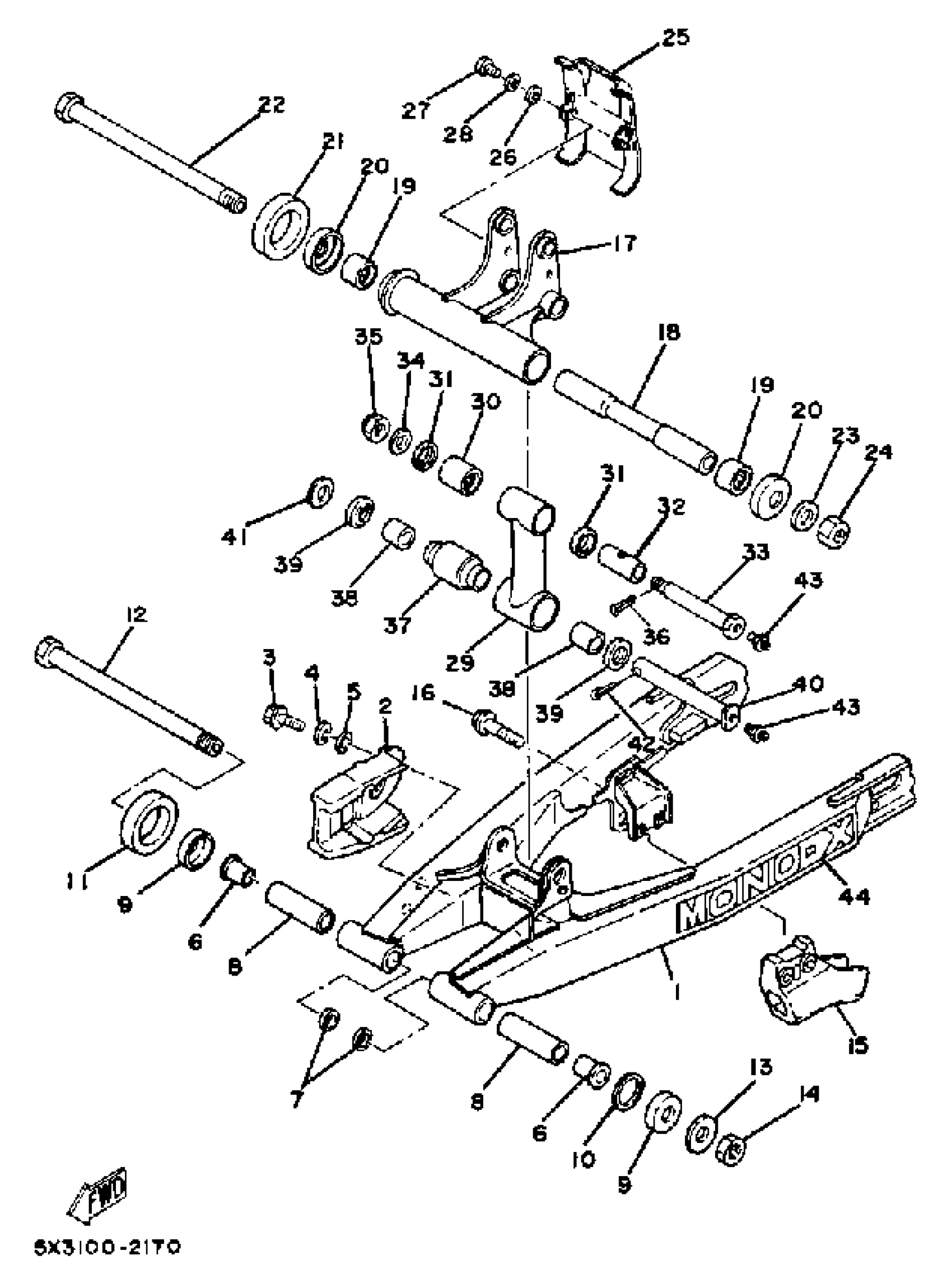

Yamaha YZ100J (YZ100J) 1982 REAR ARM Diagram
#
1
REAR ARM
(5X3-22110-00-35)
Unavailable
2
PORTECTOR, CHAIN
5X3-22147-00-00
Unavailable
5
. WASHER, PLAIN
92990-05200-00
Unavailable
8
BUSH, SOLID
90380-16098-00
Unavailable
11
SEAL, GUARD
1W1-22151-00-00
Unavailable
12
SHAFT, PIVOT
5X4-22141-01-00
Unavailable
14
NUT
90170-16111-00
Unavailable
16
BOLT, FLANGE
95817-08040-00
Unavailable
17
ARM, RELAY
5X3-2217A-00-00
Unavailable
18
COLLAR
90387-163F6-00
Unavailable
19
BRG,CYL-CAL ROLLER 28.5G NT
93317-22208-00
Unavailable
21
SEAL, GUARD
1W1-22151-00-00
Unavailable
22
SHAFT, PIVOT
5X4-22141-01-00
Unavailable
24
NUT
90170-16111-00
Unavailable
25
PROTECTOR
5X3-21652-00-00
Unavailable
26
. WASHER, PLAIN
92990-05200-00
Unavailable
29
ROD, CONNECTING 1
5X3-2217F-00-00
Unavailable
30
BEARING, CYLINDRICAL(2HJ)
93315-22046-00
Unavailable
31
OIL SEAL
93109-20076-00
Unavailable
32
BUSH, SOLID
90380-14095-00
Unavailable
33
BOLT
90109-12646-00
Unavailable
34
WASHER, PLATE
90201-12027-00
Unavailable
35
NUT, SELF LOCKING (23X)
90185-12119-00
Unavailable
36
PIN, COTTER
91490-25020-00
Unavailable
37
BUSH 1
5X6-22123-00-00
Unavailable
38
BUSH, BIMETAL FORM
90384-16156-00
Unavailable
39
COVER, DUST
5X6-2217H-00-00
Unavailable
40
PIN, SPEC''L SHAPE
90249-16154-00
Unavailable
41
WASHER, PLATE (2K7)
90201-17682-00
Unavailable
42
PIN, COTTER
91490-40045-00
Unavailable
43
NIPPLE, GREASE
93700-06M03-00
Unavailable
44
EMBLEM, REAR ARM
5X6-2218A-00-00
Unavailable
