Description

Price

1

GEAR, KICK IDLE

3R3-15651-01-00

Unavailable

2

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

$4.78

3

CIRCLIP

93440-15012-00

$8.49

4

KICK AXLE ASSEMBLY

3R3-15660-00-00

Unavailable

5

GEAR, KICK

3R3-15641-00-00

Unavailable

6

CLIP 315156870000

90468-26048-00

$8.49

7

HOLDER, KICK GEAR

248-15654-00-00

$8.99

8

CIRCLIP(4A6)

99009-30400-00

$8.49

9

SPACER

3R3-15666-00-00

Unavailable

10

SPRING, TORSION

90508-26427-00

Unavailable

11

CIRCLIP (525)

93410-17037-00

$8.49

12

OIL SEAL (17X25X4-401)

93101-17062-00

$14.99

13

KICK CRANK ASSEMBLY

43G-15620-00-00

Unavailable

14

BOSS, KICK CRANK

(5X3-15621-00-00)

Unavailable

15

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

16

BALL (12R)

93507-32031-00

Unavailable

17

. PIN, CLEVIS

91702-12040-00

Unavailable

18

. COVER, KICK LEVER

3R3-15618-01-00

Unavailable

19

. PIN, COTTER

91401-40020-00

Unavailable

20

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

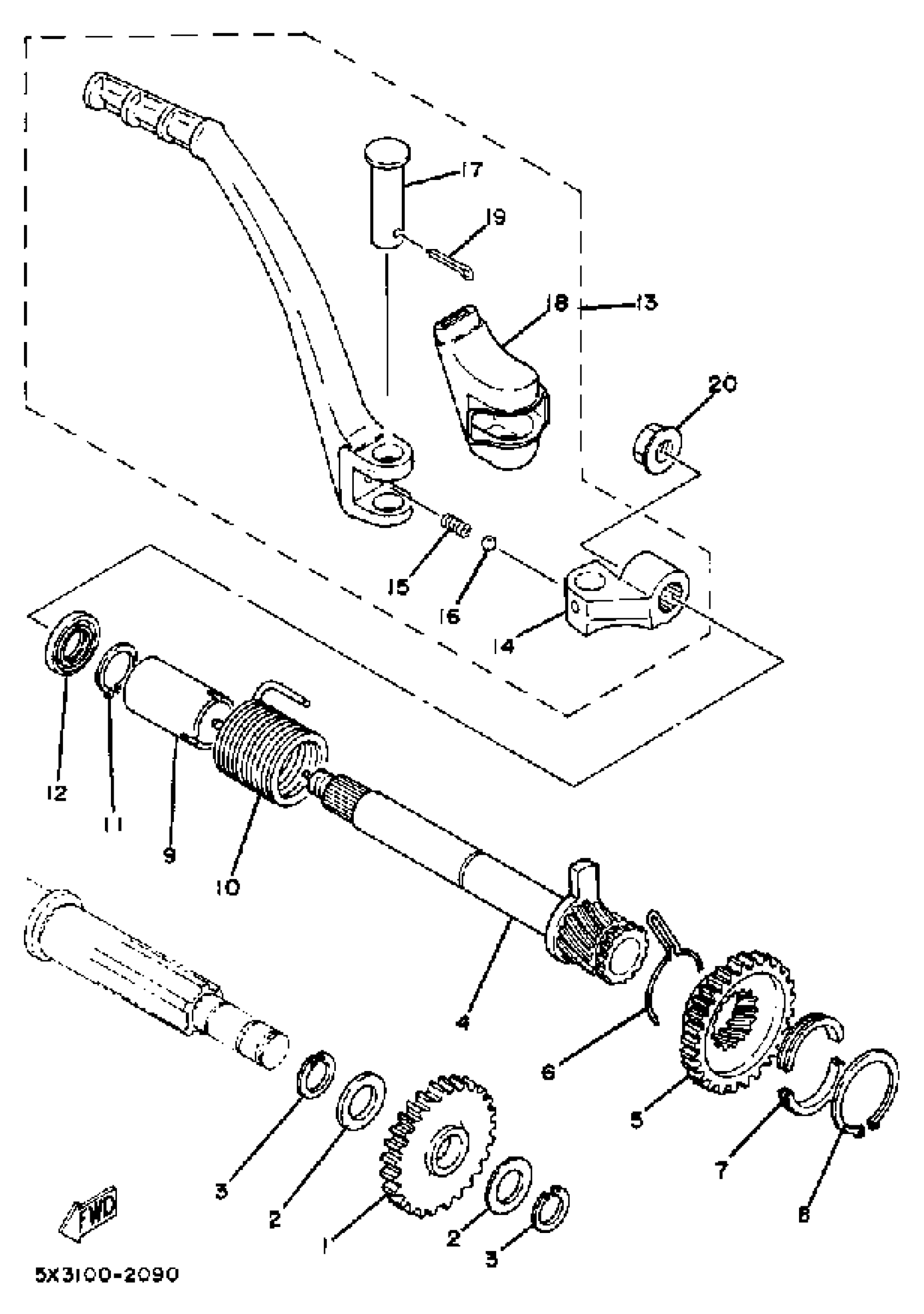

Yamaha YZ100J (YZ100J) 1982 KICK - STARTER Diagram

GEAR, KICK IDLE

SHIM, MAIN AXLE 0.5MM

CIRCLIP

KICK AXLE ASSEMBLY

GEAR, KICK

CLIP 315156870000

HOLDER, KICK GEAR

CIRCLIP(4A6)

SPACER

SPRING, TORSION

CIRCLIP (525)

OIL SEAL (17X25X4-401)

KICK CRANK ASSEMBLY

BOSS, KICK CRANK

SPRING COMPRESSION278156220000

BALL (12R)

. PIN, CLEVIS

. COVER, KICK LEVER

. PIN, COTTER

NUT, FLANGE(3BM)
