1982 Yamaha YZ100J (YZ100J) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1982 Yamaha YZ100J (YZ100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

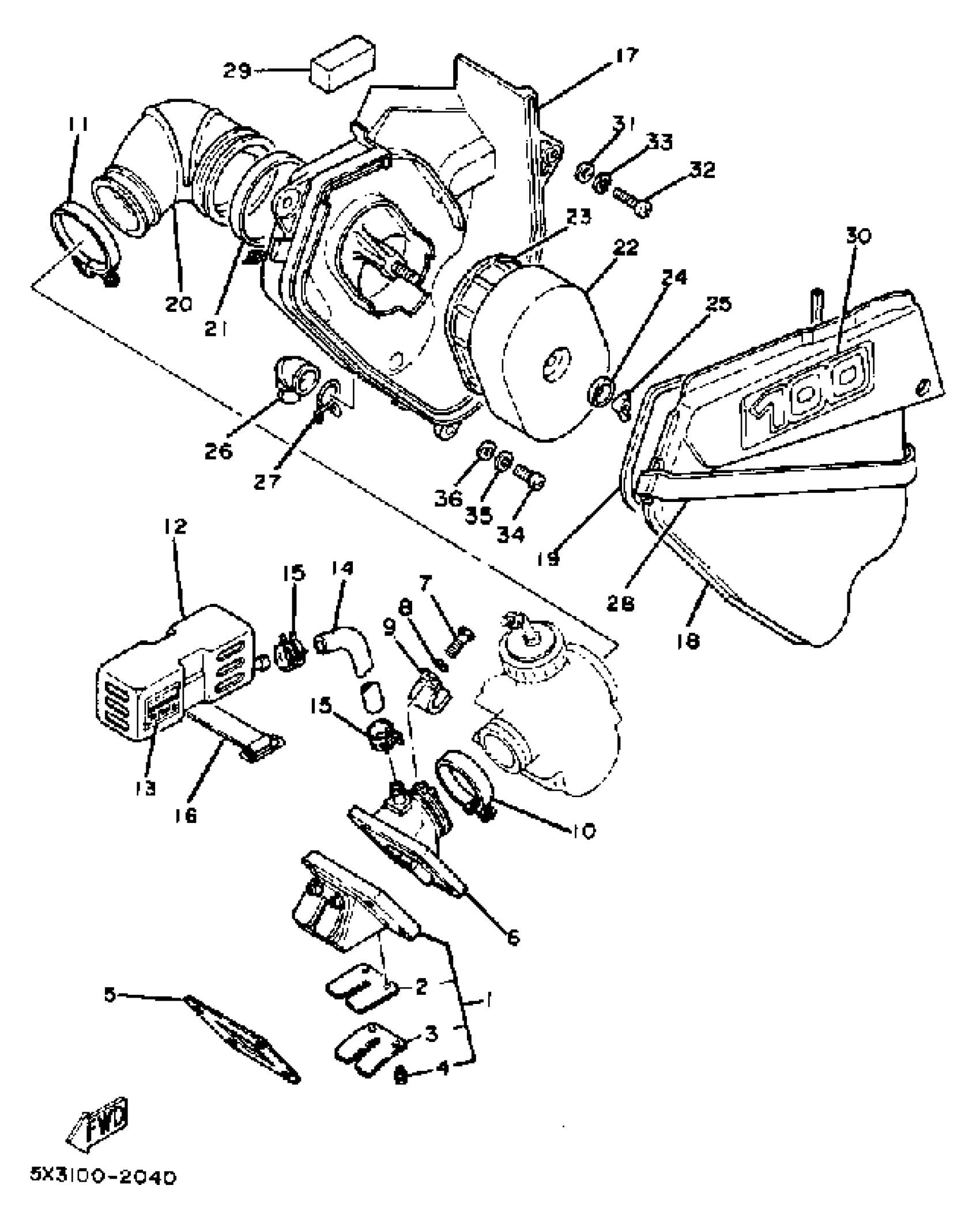

1982 Yamaha YZ100J (YZ100J) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

10V-13610-01-00

1

$137.01

In stock

2

REED VALVE 1

10V-13613-01-00

1

$25.35

In stock

3

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET, VALVE SEAT

3TT-13621-00-00

1

$17.31

In stock

6

JOINT, CARBURETOR

5X3-13565-00-00

1
Out of stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

10

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

11

CLAMP, HOSE

(90460-58807-00)

1
Out of stock

12

CHAMBER, AIR

5X2-13581-00-00

1
Out of stock

13

EMBLEM

4V3-1441K-00-00

1
Out of stock

14

HOSE

90445-15612-00

1
Out of stock

15

CLIP

90467-16181-00

1

$5.32

In stock

16

BAND, BATTERY

2T4-82131-00-00

—
Out of stock

17

CASE, AIR CLEANER 1

5X3-14411-00-00

1
Out of stock

18

CAP, CLEANER CASE 1

5X3-14412-00-00

1
Out of stock

19

SEAL

50M-14462-01-00

1

$8.99

In stock

20

JOINT, AIR CLNR 1

5X3-14453-00-00

1
Out of stock

21

HOSE CLAMP ASSY

90450-75002-00

—

$10.40

In stock

22

ELEMENT, AIR CLNR

5X4-W1442-00-00

1
Out of stock

23

GUIDE, ELEMENT

5X4-14458-00-00

1
Out of stock

24

PLATE, ELEMENT FTNG

2X4-14468-00-00

1
Out of stock

25

NUT, WING (646)

90175-06008-00

—

$1.88

In stock

26

SEAL

1W1-14457-01-00

1
Out of stock

27

CLIP

90467-20M15-00

1

$6.23

In stock

28

BAND

5X3-14455-00-00

1
Out of stock

29

DAMPER, HEADLIGHT (2XJ-84345-00-00)

5X4-14462-00-00

1
Out of stock

30

EMBLEM

5X3-21737-00-00

1
Out of stock

31

WASHER, PLATE

90201-06M08-00

1
Out of stock

32

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

SCREW, PAN

98507-06014-00

—

$6.18

In stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

36

WASHER, PLATE

90201-06M08-00

1
Out of stock
