1982 Yamaha YZ100J (YZ100J) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1982 Yamaha YZ100J (YZ100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

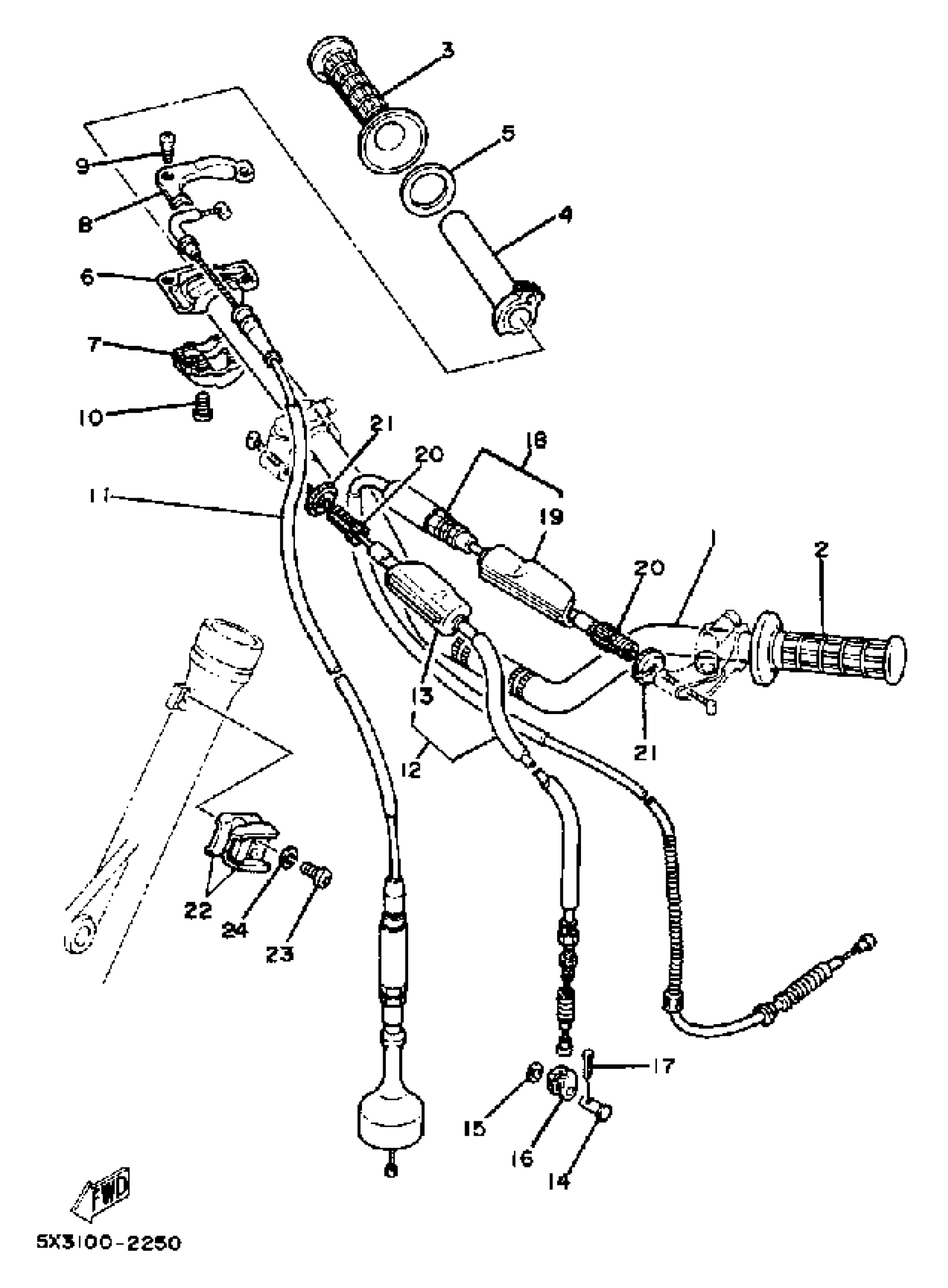

1982 Yamaha YZ100J (YZ100J) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

3G7-26111-00-00

—
Out of stock

2

GRIP (L.H)

1LX-26241-01-00

1
Out of stock

3

GRIP (R.H)

1LX-26242-01-00

1
Out of stock

4

TUBE, THROTTLE GUIDE

22W-26243-00-00

1
Out of stock

5

RING, LEAF

1W1-26249-00-00

1
Out of stock

6

CAP, GRIP UPPER

5X2-26281-00-00

1
Out of stock

7

CAP, GRIP UNDER

322-26282-00-00

1
Out of stock

8

CAP, WIRE

5X2-2628H-01-00

1
Out of stock

9

SCREW, FLAT

98707-04012-00

1
Out of stock

10

SCREW, PAN HEAD

90157-05M19-00

1
Out of stock

11

CABLE, THROTTLE 1

5X3-26311-00-00

1
Out of stock

12

CABLE, BRAKE

5X3-26341-00-00

1
Out of stock

13

COVER, LEVER

498-26372-00-00

—
Out of stock

14

PIN W/HOLE 307181180000

90240-08013-00

1
Out of stock

15

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

16

JOINT, WIRE

156-26347-00-00

—
Out of stock

17

PIN, COTTER

91490-20025-00

—
Out of stock

18

CABLE,CLUTCH

5X3-26335-00-00

1
Out of stock

19

COVER, LEVER

498-26372-00-00

—
Out of stock

20

BOLT

90123-08002-00

—
Out of stock

21

NUT

90179-08030-00

—
Out of stock

22

CLAMP(26A)

90465-16258-00

—
Out of stock

23

SCREW, PAN

98507-06014-00

—
Out of stock

24

WASHER, SPRING

92995-06100-00

1
Out of stock
