1982 Yamaha YZ100J (YZ100J) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1982 Yamaha YZ100J (YZ100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

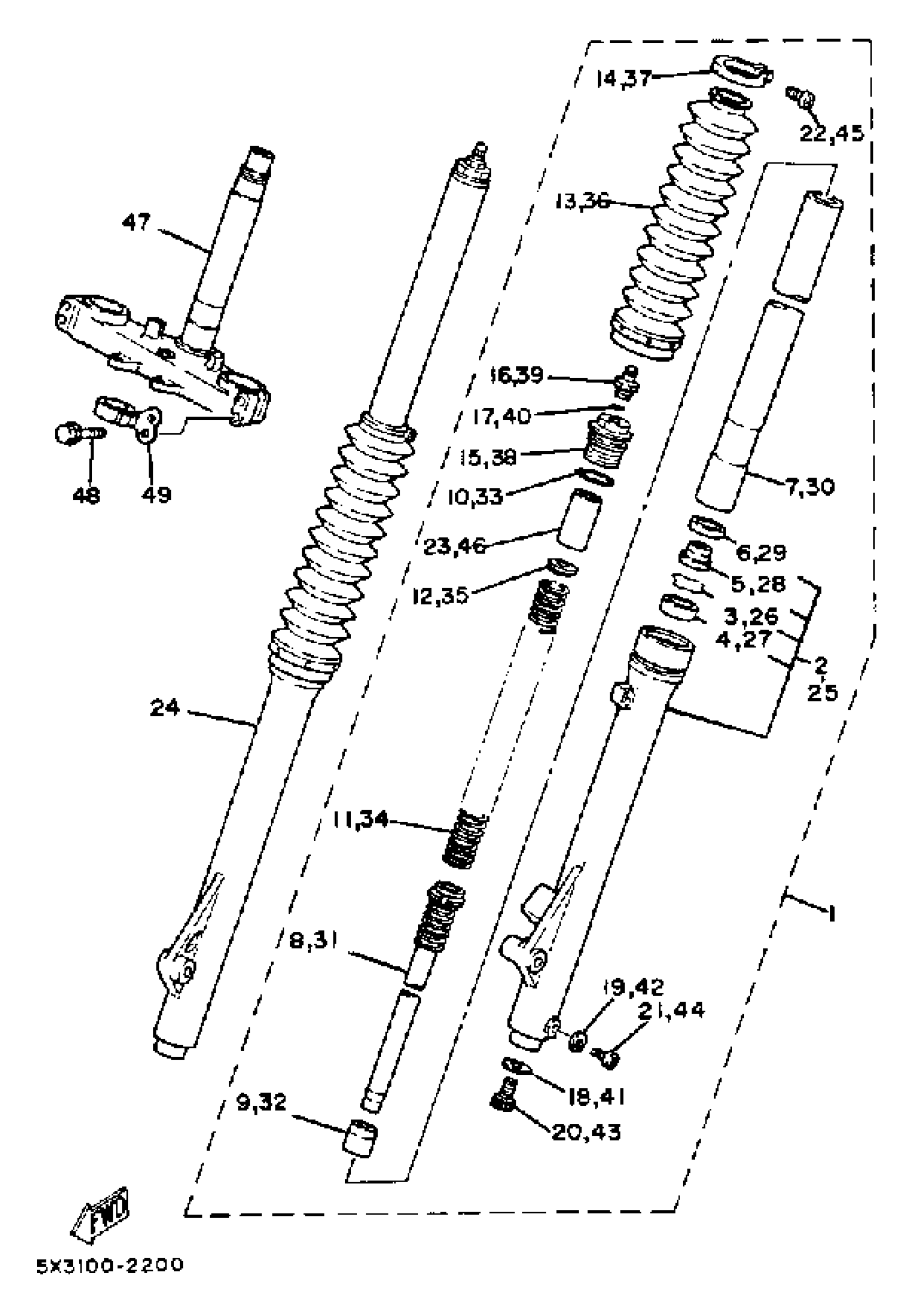

1982 Yamaha YZ100J (YZ100J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(5X3-23102-L0-00)

1
Out of stock

2

TUBE, OUTER 1

(5X3-23126-L0-00)

1
Out of stock

3

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

. SEAL, DUST

509-23144-L0-00

1
Out of stock

6

. COVER, DUST SEAL

3R8-23148-L0-00

1
Out of stock

7

INNER TUBE 1

(5X3-23110-L0-00)

1
Out of stock

8

CYLINDER, FRTFRK

(3R6-23170-L0-00)

1
Out of stock

9

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

10

O-RING

1W1-23114-L0-00

1
Out of stock

11

SPRING, FRTFRK HARD

(5X3-23141-20-00)

1
Out of stock

11

SPRING, FRONT FORK

(5X3-23141-L0-00)

1
Out of stock

11

SPRING, FRONT FORK

(5X3-23141-L0-00)

1
Out of stock

12

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

13

. BOOT, FRONT FORK

2X3-23191-M0-00

1
Out of stock

14

BAND, BOOT

341-92090-60-00

—
Out of stock

15

. BOLT, CAP

5X3-23111-L0-00

1
Out of stock

16

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

17

O-RING

3J2-23147-00-00

—
Out of stock

18

GASKET

509-23158-L0-00

—

$14.34

In stock

19

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

21

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

22

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

23

SPACER

4V5-23118-L1-00

1
Out of stock

24

FRONT FORK ASSEMBLY R

(5X3-23103-L0-00)

1
Out of stock

25

TUBE, OUTER 2

(5X3-23136-L0-00)

1
Out of stock

26

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

27

OIL SEAL

48Y-23145-00-00

1
Out of stock

28

. SEAL, DUST

509-23144-L0-00

1
Out of stock

29

. COVER, DUST SEAL

3R8-23148-L0-00

1
Out of stock

30

INNER TUBE 1

(5X3-23110-L0-00)

1
Out of stock

31

CYLINDER, FRTFRK

(3R6-23170-L0-00)

1
Out of stock

32

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

33

O-RING

1W1-23114-L0-00

1
Out of stock

34

SPRING, FRTFRK HARD

(5X3-23141-20-00)

1
Out of stock

34

SPRING, FRONT FORK

(5X3-23141-L0-00)

1
Out of stock

34

SPRING, FRONT FORK

(5X3-23141-L0-00)

1
Out of stock

35

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

36

. BOOT, FRONT FORK

2X3-23191-M0-00

1
Out of stock

37

BAND, BOOT

341-92090-60-00

—
Out of stock

38

. BOLT, CAP

5X3-23111-L0-00

1
Out of stock

39

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

40

O-RING

3J2-23147-00-00

—
Out of stock

41

GASKET

509-23158-L0-00

—

$14.34

In stock

42

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

43

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

44

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

45

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

46

SPACER

4V5-23118-L1-00

1
Out of stock

47

UNDER BRACKET

(5X3-23340-L0-33)

1
Out of stock

48

BOLT, FLANGE(4FM)

95814-08035-00

—

$6.68

In stock

49

GUIDE, WIRE

3R4-23389-00-00

—
Out of stock
