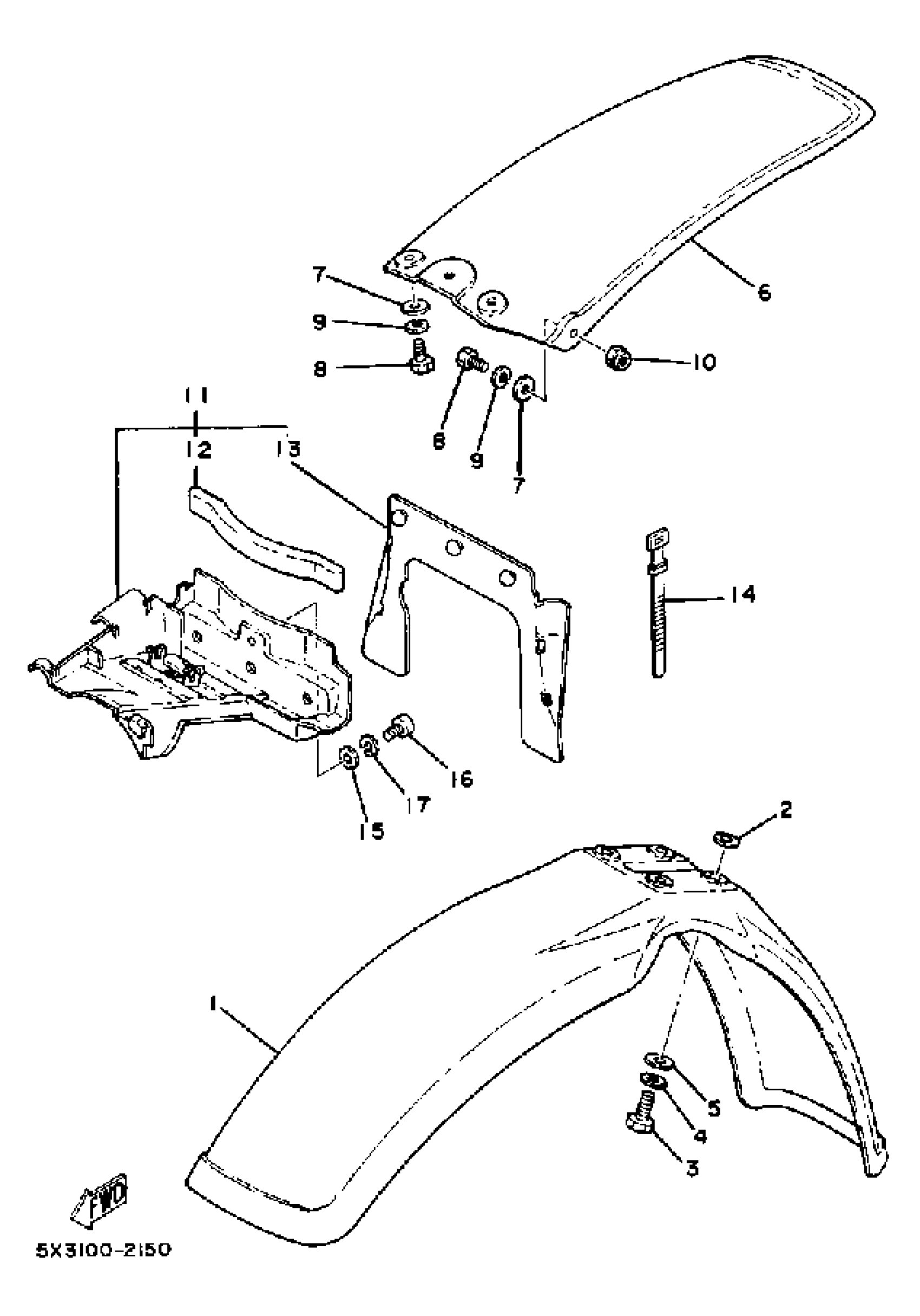

Yamaha YZ100J (YZ100J) 1982 FRONT FENDER - REAR FENDER Diagram

FENDER, FRONT

5X6-21511-01-00

$43.99

WASHER, PLATE

90201-06020-00

$9.49

BOLT(3DM)

97024-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

WASHER (3R8)

90209-06187-00

$8.49

FENDER, REAR

3R3-21611-01-00

Unavailable

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, SPRING

92995-06100-00

Unavailable

NUT, SELF-LOCKING

95617-06100-00

$8.49

GUARD, MUD

(5X3-21620-00-00)

Unavailable

. DAMPER

565-21746-00-00

Unavailable

. GUARD, FLAP

5X3-21642-00-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

$7.99

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

SCREW, PAN

98507-06014-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable
