1982 Yamaha YZ100J (YZ100J) Electrical 1 Diagram

← All diagrams

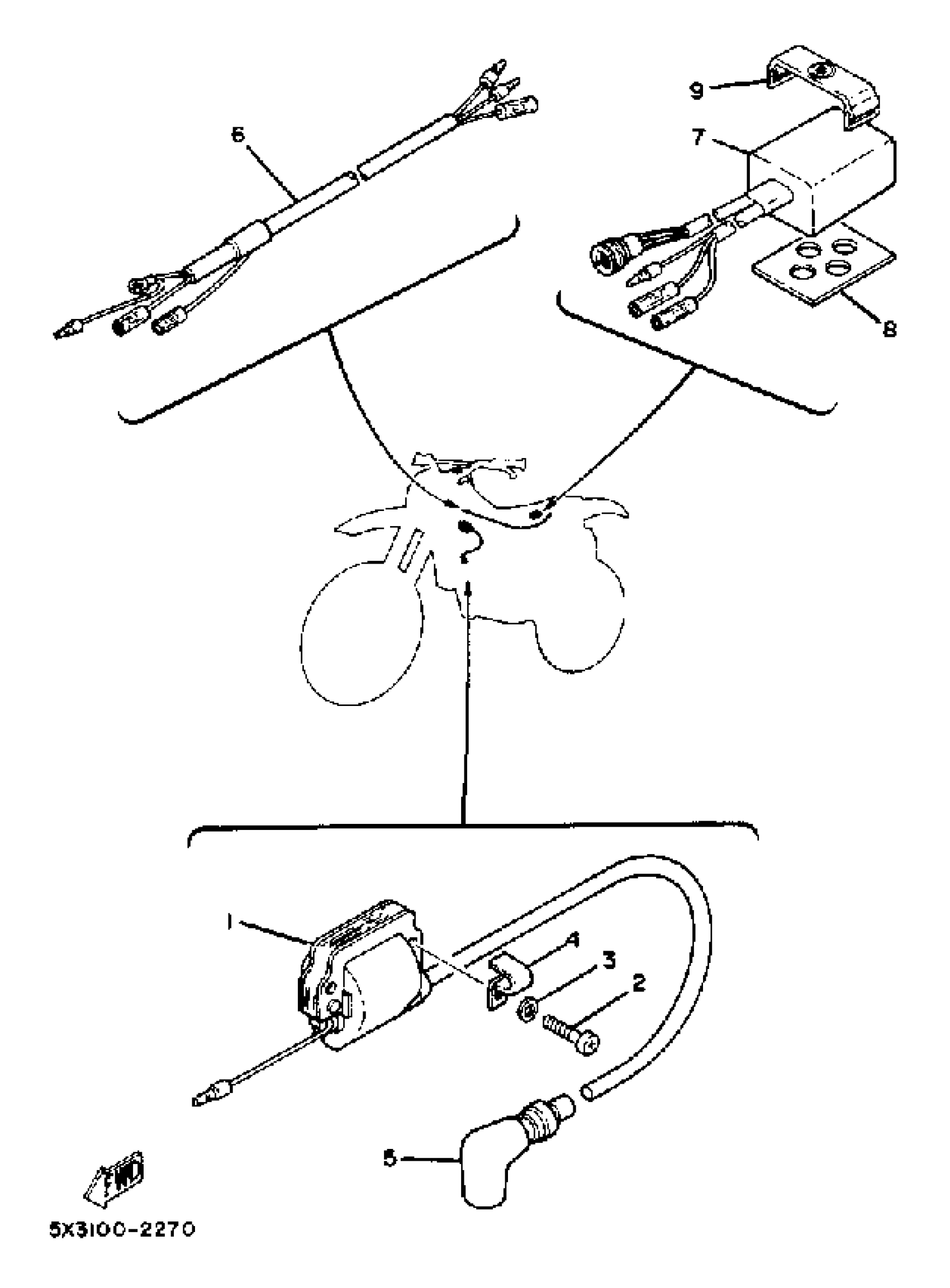

Find the part on the Electrical 1 diagram for your 1982 Yamaha YZ100J (YZ100J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha YZ100J (YZ100J) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

2X6-82310-10-00

1
Out of stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

5

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

6

WIRE HARNESS ASSEMBLY

5X3-82590-00-00

1
Out of stock

7

CDI UNIT ASSEMBLY

5X2-85540-10-00

1
Out of stock

8

DAMPER

3RB-85547-01-00

1
Out of stock

9

BAND, TOOL

21V-21376-00-00

1

$6.38

In stock
