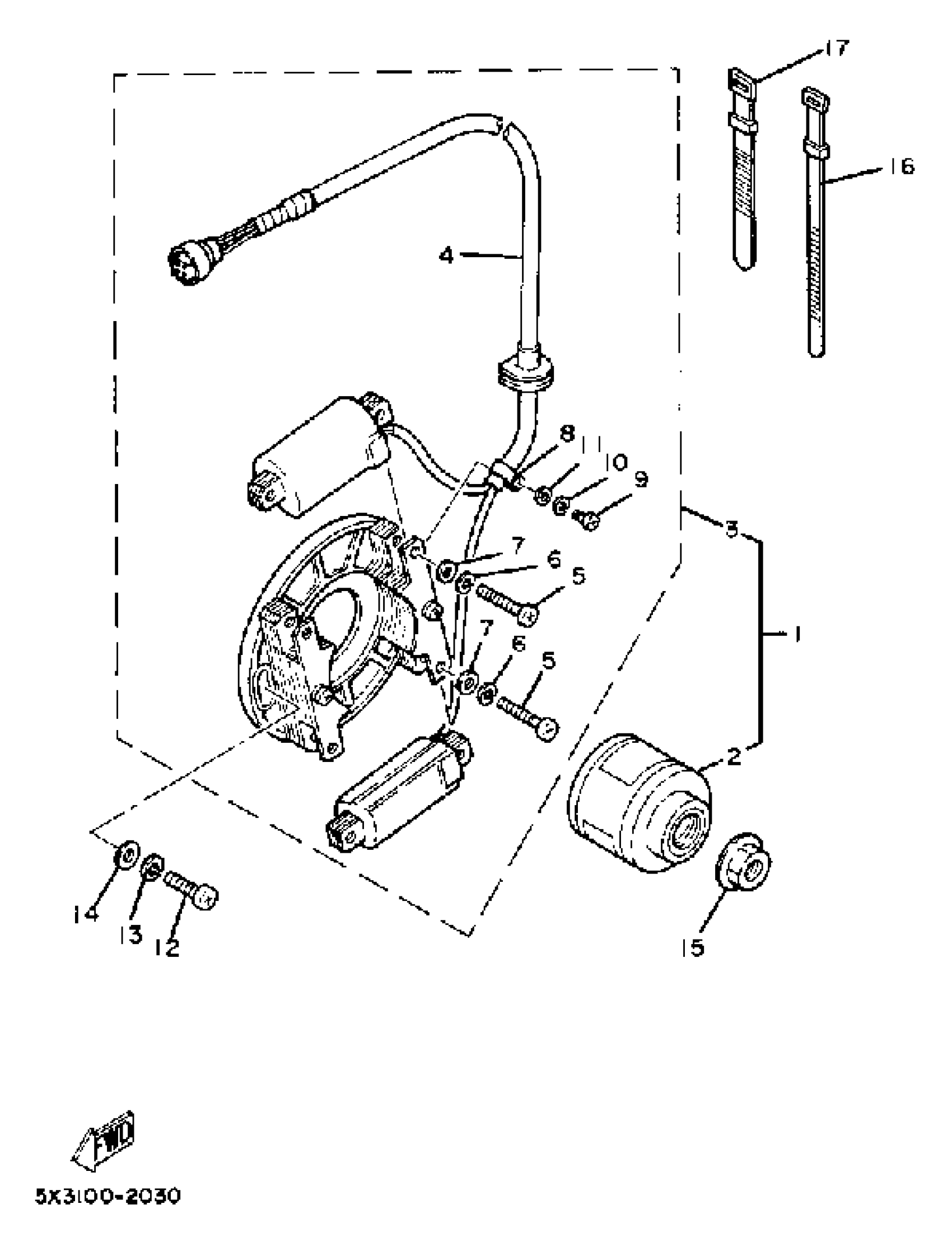

Yamaha YZ100J (YZ100J) 1982 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

5X3-85500-10-00

Unavailable

2

. ROTOR ASSEMBLY

5X3-85550-10-00

Unavailable

3

STATOR ASSEMBLY

(5X3-85510-11-00)

Unavailable

4

.. COIL, CHARGE

5X3-85520-10-00

Unavailable

5

SCREW, PAN HEAD

98517-05030-00

$7.40

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

WASHER, PLAIN (646)

92990-05600-00

Unavailable

8

. CLAMP

109-81328-11-00

Unavailable

9

SCREW, PAN HEAD (713)

98580-04008-00

$4.24

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

11

WASHER, PLAIN (646)

92990-04600-00

$0.91

12

SCREW PAN HEAD

98580-06020-00

$4.89

13

WASHER, SPRING

92995-06100-00

$2.95

14

WASHER, PLAIN (646)

92990-06600-00

$1.84

15

NUT, SPECIAL SHAPE

90179-10257-00

Unavailable

16

BAND, SWITCH CORD

437-83936-01-00

Unavailable

17

BAND, SWITCH CORD

437-83936-11-00

Unavailable
