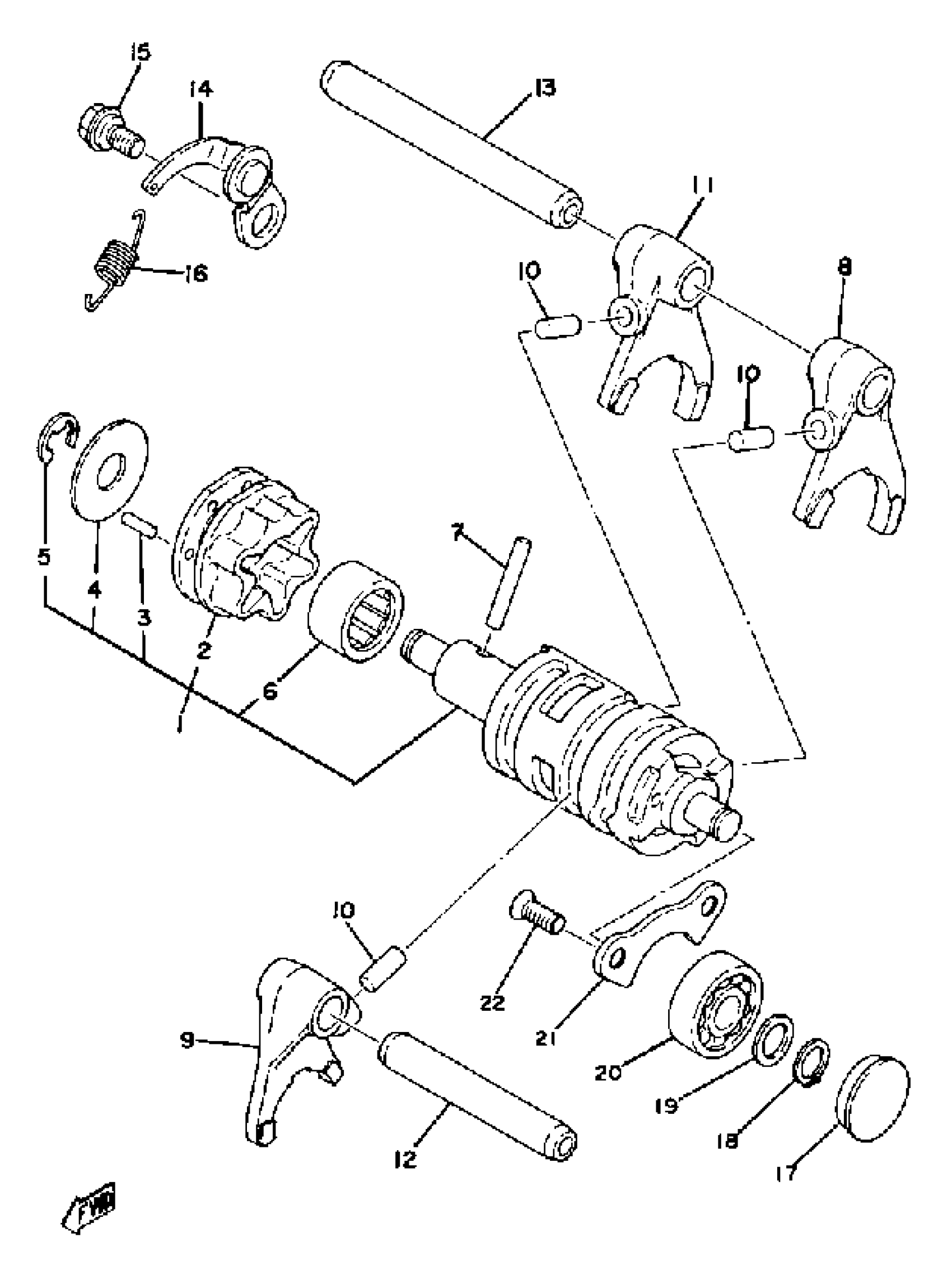

Yamaha YZ100G (YZ100G) 1980 SHIFT CAM-FORK Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

(2W5-18540-00-00)

Unavailable

2

SEGMENT, SHIFT CAM

1W1-18185-00-00

Unavailable

3

PIN,DOWEL (168)

93604-12037-00

$8.49

4

PLATE, SIDE

1W1-18561-00-00

$6.99

5

CIRCLIP(2R6)

99001-08600-00

$8.49

6

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$36.99

7

PIN,DOWEL (611)

93604-30018-00

$2.44

8

FORK, SHIFT 1

2W6-18511-00-00

Unavailable

9

FORK, SHIFT 2

2W6-18512-00-00

Unavailable

10

PIN STRAIGHT 257185520000

90250-06013-00

$9.49

11

FORK, SHIFT 3

2W6-18513-00-00

Unavailable

12

BAR, SHIFT FORK GUIDE 1

2A6-18531-00-00

Unavailable

13

BAR, SHIFT FORK GUID 2

2A6-18535-00-00

Unavailable

14

STOPPER LEVER ASSY

1W1-18140-00-00

Unavailable

15

BOLT

90109-06190-00

$4.72

16

SPRING, TENSION (1W1)

90506-09156-00

Unavailable

17

PLUG, SPEC''L SHAPE

90338-23090-00

Unavailable

18

CIRCLIP(24H)

99009-11400-00

Unavailable

19

WASHER, PLATE(55K)

90201-127J6-00

Unavailable

20

BEARING(3WF)

93306-20119-00

Unavailable

21

PLATE, BRNG COVER

(2W5-15381-00-00)

Unavailable

22

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable
