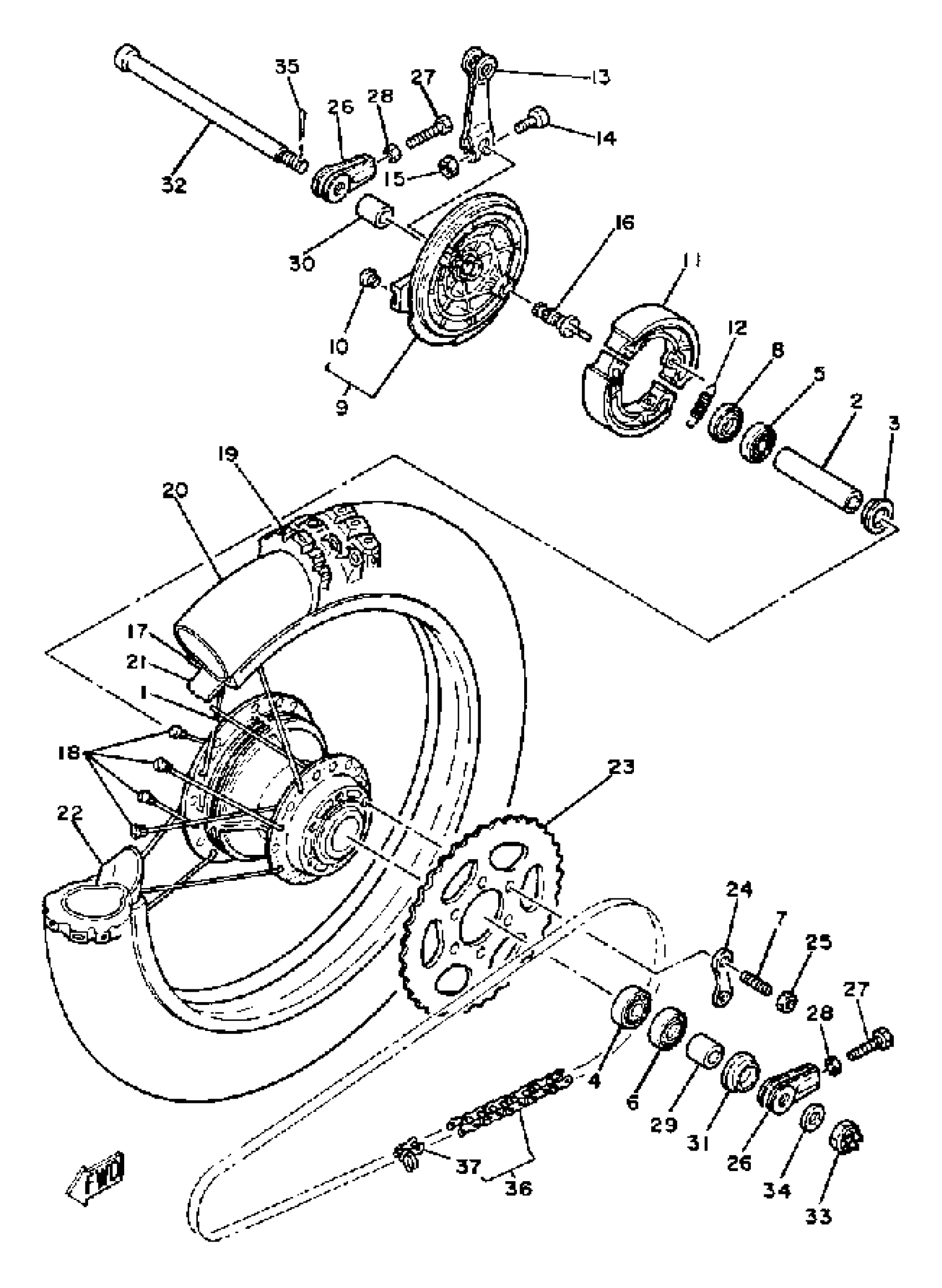

Yamaha YZ100G (YZ100G) 1980 REAR WHEEL Diagram

HUB, REAR

1W1-25311-00-98

Unavailable

SPACER

90560-15313-00

$46.99

FLANGE, SPACER

146-25115-00-00

$6.99

BEARING

93306-30212-00

$40.99

BEARING

93306-20205-00

$38.99

SEAL,OIL

93106-26005-00

$7.20

BOLT, STUD (537 HUB)

90116-10221-00

$4.88

OIL SEAL (22X35X5)

93104-22018-00

$11.49

BRAKE SHOE PLATE ASSEMBLY (2A6-25026-00-98)BRAKE SHOE PLAT

99999-02024-00

Unavailable

GROMMET (397)

90480-10068-00

$8.49

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

SPRING (5T9)

90506-17328-00

Unavailable

LEVER, CAM SHAFT

1E2-25155-00-00

Unavailable

BOLT, HEXAGON (538)

90101-06278-00

$2.17

NUT, HEXAGON

95380-06600-00

Unavailable

CAMSHAFT

2RH-25351-00-00

Unavailable

RIM 1.85X18

94418-18245-00

Unavailable

SPOKE SET, REAR

537-25304-01-00

Unavailable

410-18 4PR M22

(94141-18649-00)

Unavailable

TUBE (2RH)

94232-18113-00

Unavailable

TUBE (3R9)

94241-18153-00

Unavailable

BAND, RIM (2J4)

94340-18086-00

Unavailable

BAND, RIM (2J4)

94340-18086-00

Unavailable

UNAVAILABLE IN PRICE BOOK

237-25394-00-00

Unavailable

SPACER, BEAD

2X3-25394-00-00

Unavailable

SPROCKET, DRIVN 43T (2K5-25443-00) (43T)

2K5-25443-00-XX

Unavailable

SPROCKET, DRIVN 45T

(2K5-25445-00-XX)

Unavailable

SPROCKET, DRIVN 47T

(3R2-25447-00-XX)

Unavailable

WASHER, SPECIAL.

1G8-25412-00-00

Unavailable

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

PULLER, CHAIN 1

537-25388-00-00

Unavailable

BOLT

90101-08060-00

Unavailable

. NUT

95380-08700-00

Unavailable

COLLAR

90387-15601-00

Unavailable

COLLAR

90387-15524-00

Unavailable

COVER, DUST

401-25367-00-00

Unavailable

AXLE, WHEEL

537-25381-01-00

Unavailable

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

WASHER (525)

90201-15238-00

Unavailable

PIN, COTTER

91490-30030-00

Unavailable

520D5-100L DID (94515-20100)

9Y585-20099-00

Unavailable

JOINT, CHAIN

94681-68001-00

Unavailable
