Description

Price

1

GEAR, KICK IDLE

525-15651-00-00

$68.99

2

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

$4.78

3

CIRCLIP

93440-15012-00

$8.49

4

KICK AXLE ASSEMBLY

2A6-15660-01-00

Unavailable

5

GEAR, KICK

1W1-15641-00-00

Unavailable

6

CLIP 315156870000

90468-26048-00

$8.49

7

HOLDER, KICK GEAR

248-15654-00-00

$8.99

8

CIRCLIP(4A6)

99009-30400-00

$8.49

9

COVER, SPRING

401-15676-00-00

$7.99

10

SPRING, TORSION (1W1)

90508-26346-00

Unavailable

11

SPACER, KICK AXLE SPRING

1W1-15666-00-00

$16.49

12

OIL SEAL (17X25X4-401)

93101-17062-00

$14.99

13

KICK CRANK ASSEMBLY (1W1-15611-02-33)

1W1-15620-01-00

Unavailable

14

BOSS, KICK CRANK

1W1-15621-01-00

Unavailable

15

SPRING, COMPRESSION (1W1)

90501-10459-00

$7.49

16

BALL

93503-16003-00

Unavailable

17

WASHER, PLATE (525)

90201-12541-00

Unavailable

18

CIRCLIP (137)

93430-08007-00

Unavailable

19

COVER, KICK CRANK BOSS

1W1-15618-01-00

Unavailable

20

PLUG, TAPER

90336-06030-00

Unavailable

21

BOLT, SOCKET

91317-08025-00

Unavailable

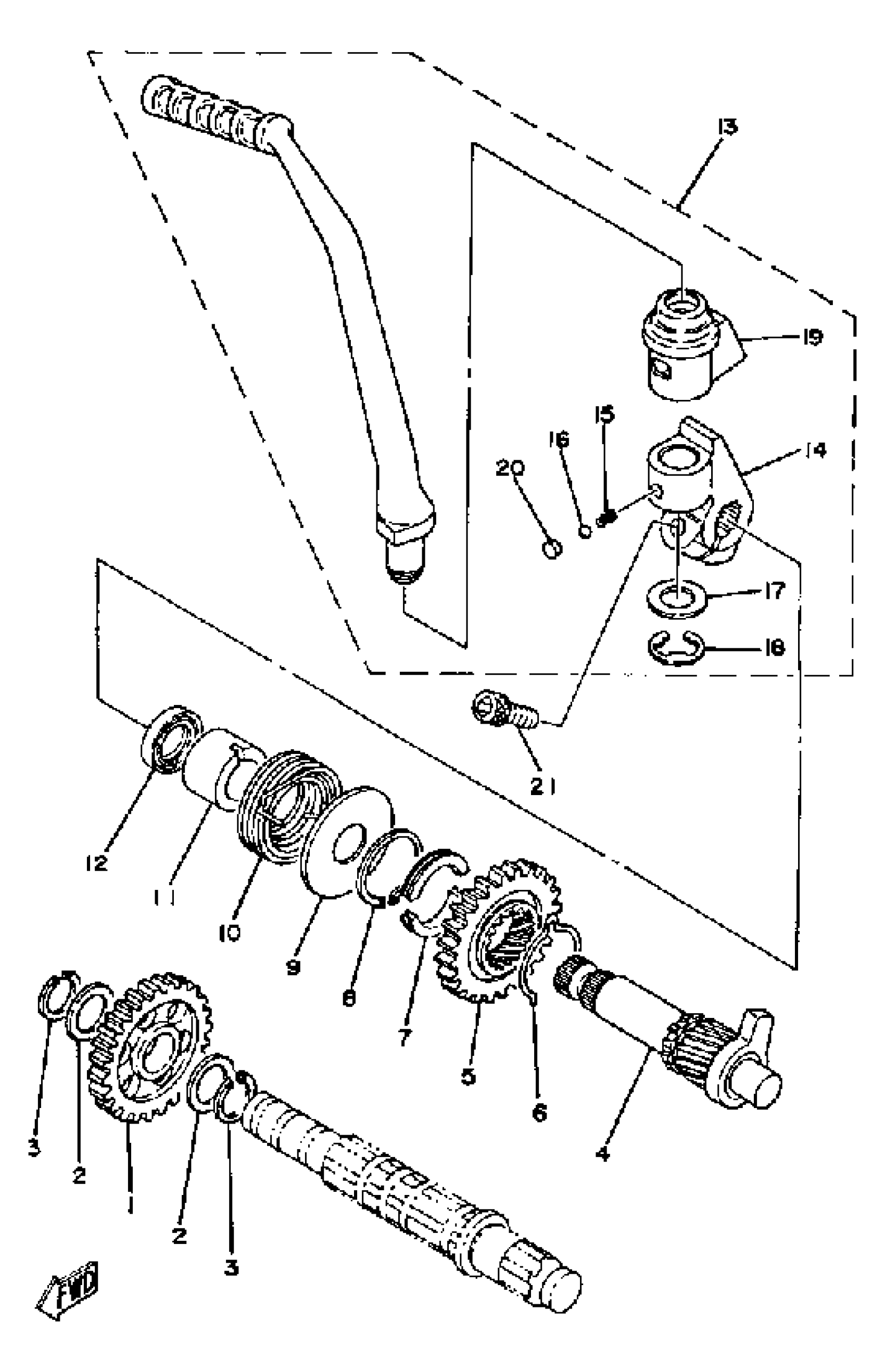

Yamaha YZ100G (YZ100G) 1980 KICK-STARTER Diagram

GEAR, KICK IDLE

SHIM, MAIN AXLE 0.5MM

CIRCLIP

KICK AXLE ASSEMBLY

GEAR, KICK

CLIP 315156870000

HOLDER, KICK GEAR

CIRCLIP(4A6)

COVER, SPRING

SPRING, TORSION (1W1)

SPACER, KICK AXLE SPRING

OIL SEAL (17X25X4-401)

KICK CRANK ASSEMBLY (1W1-15611-02-33)

BOSS, KICK CRANK

SPRING, COMPRESSION (1W1)

BALL

WASHER, PLATE (525)

CIRCLIP (137)

COVER, KICK CRANK BOSS

PLUG, TAPER

BOLT, SOCKET
