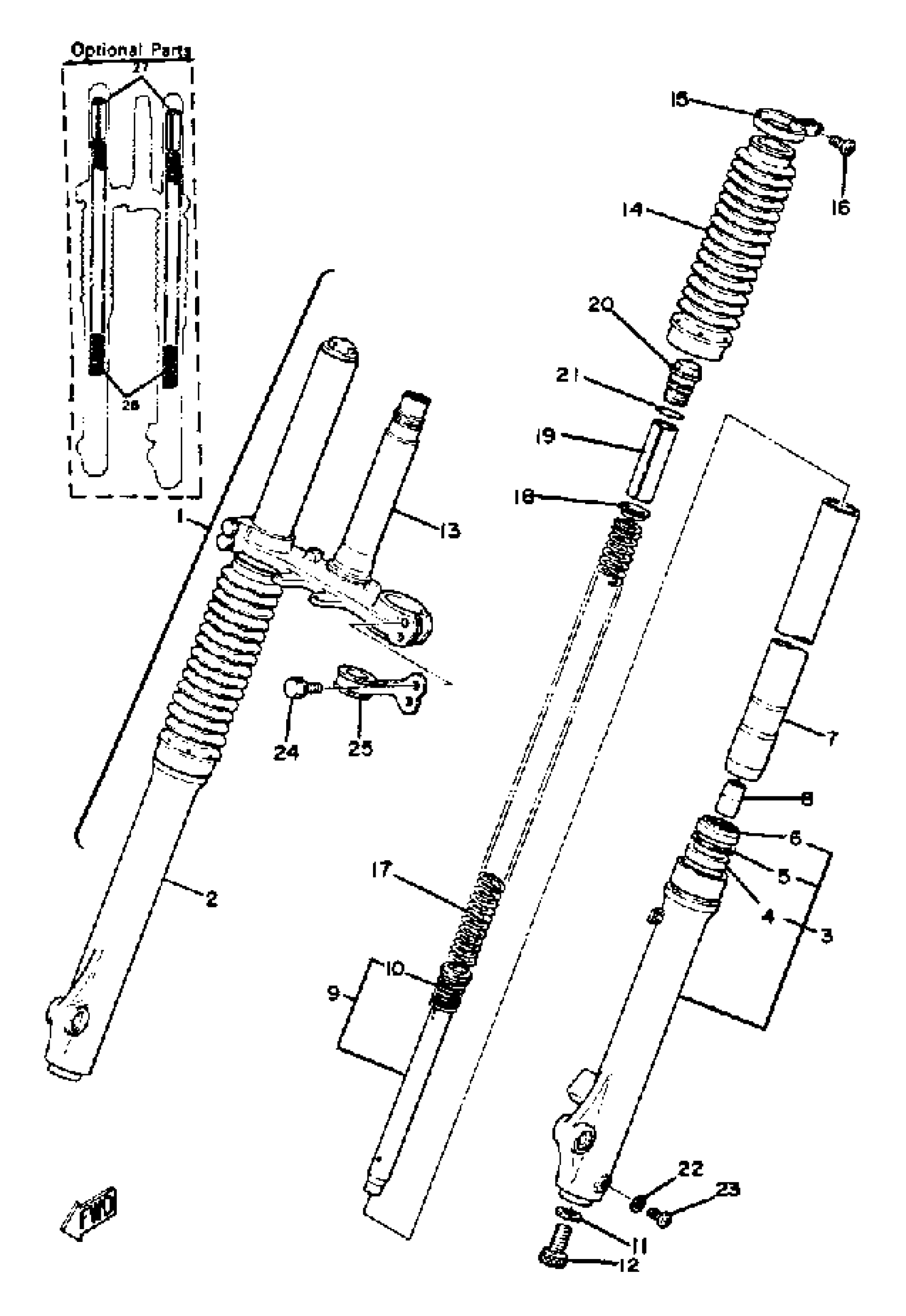

Yamaha YZ100G (YZ100G) 1980 FRONT FORK YZ100G Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3R2-23101-00-00)

Unavailable

2

OUTER TUBE LH

(3R2-23106-00-00)

Unavailable

3

OUTER TUBE RH

(3R2-23107-00-00)

Unavailable

4

OIL SEAL

1T3-23145-00-00

$16.49

5

RING, SNAP

4A1-23156-00-00

$5.49

6

SEAL, DUST

4G0-23144-01-00

Unavailable

7

INNER TUBE 1

(3R2-23110-00-00)

Unavailable

8

TAPER SPINDLE

1W1-23173-L0-00

$31.99

9

CYLINDER, FRTFRK

(3R2-23170-00-00)

Unavailable

10

.. SPRING, REBOUND

509-23151-L0-00

Unavailable

11

GASKET

509-23158-L0-00

$16.49

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

13

UNDER BRACKET

(3R2-23340-00-33)

Unavailable

14

. BOOT, FRONT FORK

3R2-23191-00-00

Unavailable

15

BAND, BOOT

341-92090-60-00

$25.99

16

SCREW

509-23194-L0-00

Unavailable

17

SPRING, FRONT FORK

(3R2-23141-00-00)

Unavailable

18

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

19

SPACER

11H-23118-00-00

Unavailable

20

. BOLT, CAP (583-23111-00)

2W6-23111-00-00

Unavailable

21

GASKET

240-23114-00-00

Unavailable

22

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

23

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

24

. BOLT, HEXAGON SOCKET HEAD

5X6-23181-L0-00

Unavailable

25

GUIDE, WIRE

3R4-23389-00-00

Unavailable

26

SPRING, FRONT FORK

(3R2-23141-20-00)

Unavailable

26

SPRING, FRONT FORK

(3R2-23141-30-00)

Unavailable

27

SPACER

(3R2-23118-60-00)

Unavailable
