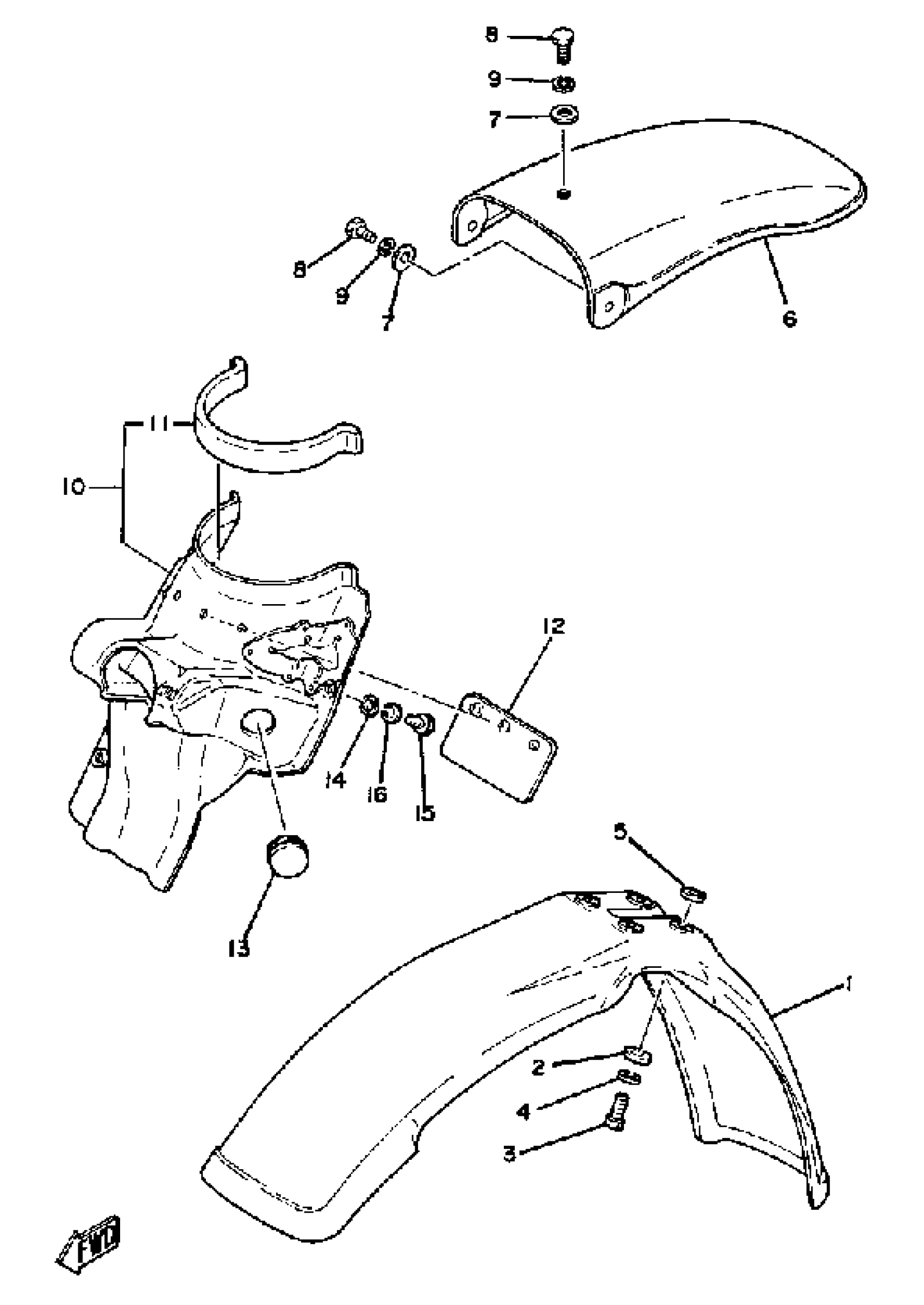

Yamaha YZ100G (YZ100G) 1980 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3R2-21511-01-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.54

3

BOLT(3DM)

97024-06020-00

$5.75

4

WASHER, SPRING

92995-06100-00

$2.95

5

WASHER (3R8)

90209-06187-00

$5.76

6

FENDER, REAR

2K5-21611-00-00

Unavailable

7

WASHER, PLATE

90201-06380-00

$0.54

8

BOLT(8CP)

97017-06014-00

$4.91

9

WASHER, SPRING

92995-06100-00

$2.95

10

GUARD, MUD

(3R9-21620-00-00)

Unavailable

11

DAMPER

2A6-21639-00-00

Unavailable

12

FLAP

1M1-21621-00-00

$12.80

13

GROMMET

90480-01254-00

Unavailable

14

WASHER, PLATE

90201-06380-00

$0.54

15

BOLT(8CP)

97017-06014-00

$4.91

16

WASHER, SPRING

92995-06100-00

$2.95
