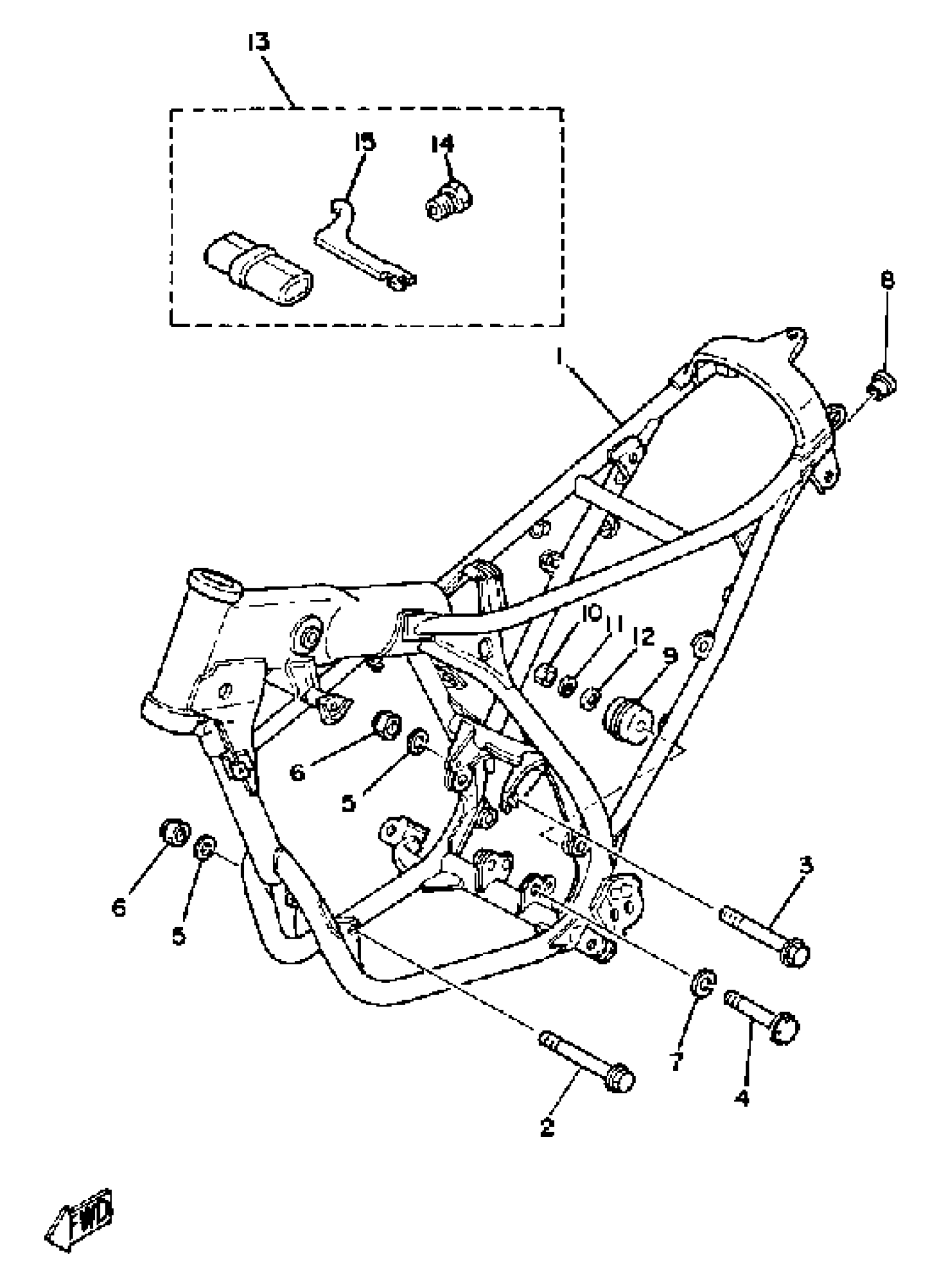

Yamaha YZ100G (YZ100G) 1980 FRAME-TOOL YZ100H Diagram

#

Description

Price

1

FRAME

(3R2-21110-02-33)

Unavailable

2

BOLT (1W1)

90105-08099-00

$5.60

3

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

4

BOLT

90105-10037-00

Unavailable

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

7

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

8

PLUG

90339-11001-00

Unavailable

9

TENSIONER

2X6-22178-00-00

Unavailable

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

WASHER, SPRING

92995-06100-00

Unavailable

12

SPACER

(90560-06198-00)

Unavailable

13

TOOL KIT

5X2-28100-00-00

Unavailable

14

PULLER, ROTOR

(2K7-85555-00-00)

Unavailable

15

SPRING SEAT WRENCH

(1M1-28137-00-00)

Unavailable
