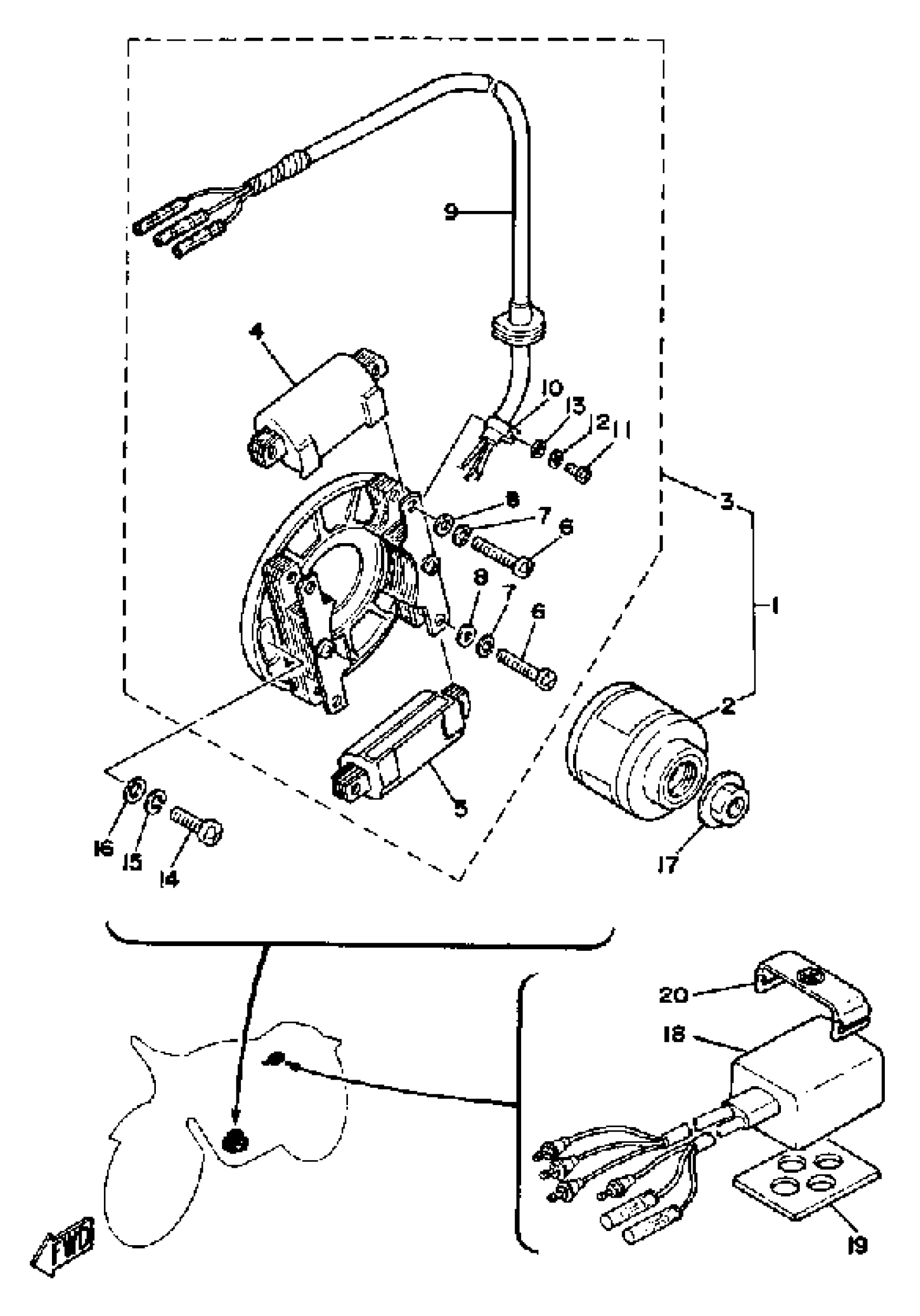

Yamaha YZ100G (YZ100G) 1980 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

2X6-85500-11-00

Unavailable

2

ROTOR ASSEMBLY

(2X6-85550-10-00)

Unavailable

3

. STATOR ASSEMBLY

2X6-85510-11-00

Unavailable

4

COIL,CHARGE

3R4-85520-11-00

Unavailable

5

.. COIL, CHARGE 2

2X6-85567-10-00

Unavailable

6

SCREW, PAN HEAD

98517-05030-00

$10.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

9

.. LEAD WIRE ASSEMBLY

2X6-85515-10-00

Unavailable

10

. CLAMP

109-81328-11-00

Unavailable

11

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

WASHER, PLAIN (646)

92990-04600-00

$5.99

14

SCREW PAN HEAD

98580-06020-00

$8.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

NUT, SPECIAL SHAPE

90179-10257-00

Unavailable

18

CDI UNIT ASSEMBLY

2X6-85540-10-00

Unavailable

19

DAMPER

3RB-85547-01-00

Unavailable

20

BAND, TOOL

21V-21376-00-00

Unavailable
