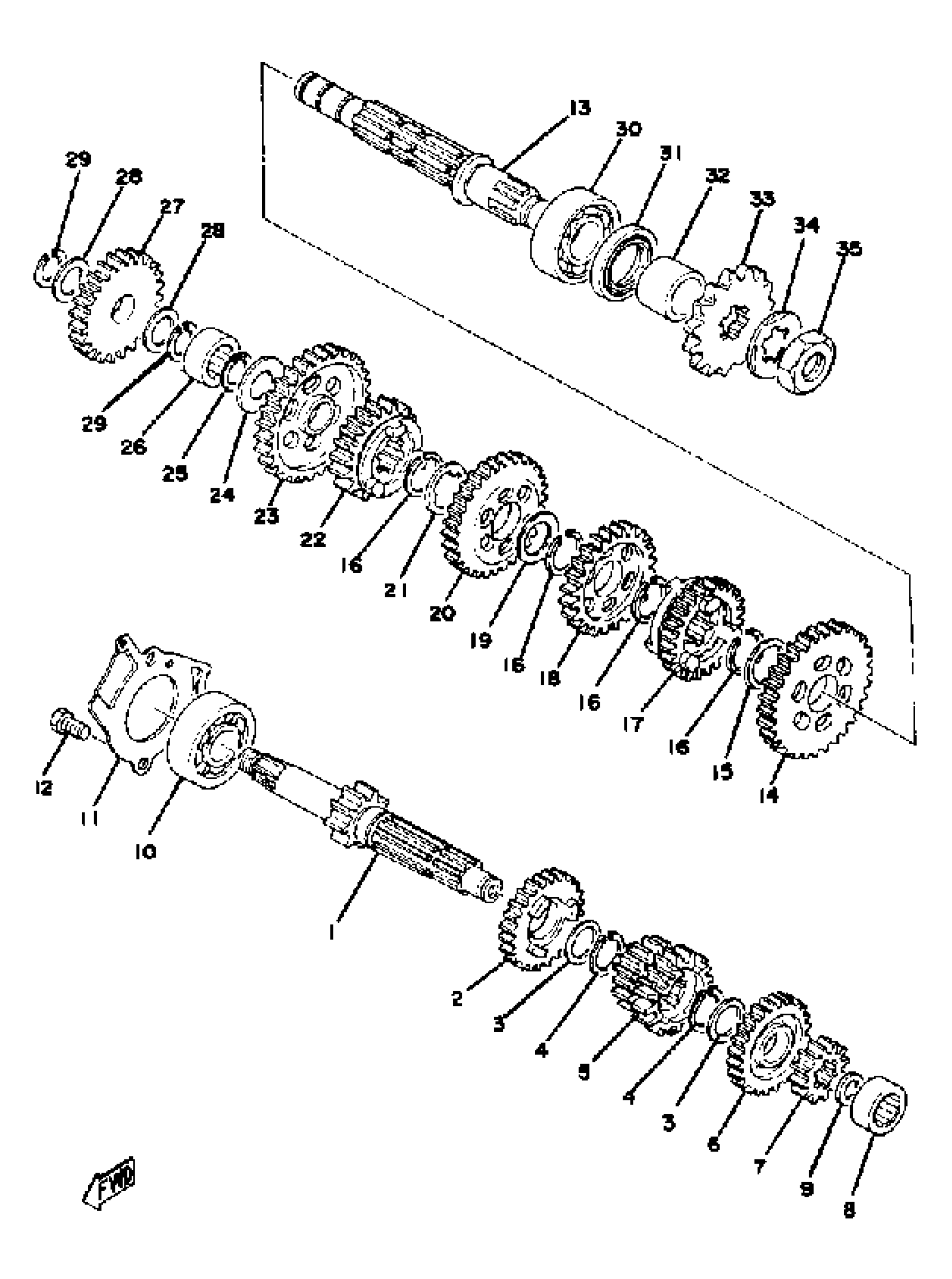

Yamaha YZ100D (YZ100D) 1977 TRANSMISSION YZ100D Diagram

#

Description
Price

1

AXLE, MAIN

(1G8-17411-00-00)

Unavailable

2

GEAR, 5TH PINION

537-17151-00-00

Unavailable

3

WASHER PLATE 132172160000

90201-20266-00

$9.49

4

CIRCLIP (525)

93410-20038-00

$3.76

5

GEAR, 3RD PINION

(537-17131-01-00)

Unavailable

6

GEAR, 6TH PINION

(537-17161-00-00)

Unavailable

7

GEAR, 2ND PINION

(537-17121-00-00)

Unavailable

8

BEARING, CYLINDER.#11

93311-31522-00

Unavailable

9

WASHER PLATE 278156130000

90201-15234-00

$8.49

9

WASHER (566)

90201-15701-00

$8.49

10

BEARING(4HM)

93306-30317-00

$39.99

11

PLATE, COVER

1G8-17471-00-00

Unavailable

12

BOLT (661)

97013-06012-00

$5.60

13

UNAVAILABLE IN PRICE BOOK

527-17421-00-00

Unavailable

14

GEAR, 2ND WHEEL

(537-17221-01-00)

Unavailable

15

WASHER, PLATE (537)

90201-22555-00

Unavailable

16

CIRCLIP (537)

93410-22039-00

Unavailable

17

GEAR, 6TH WHEEL

(537-17261-01-00)

Unavailable

18

GEAR, 4TH WHEEL

(537-17241-02-00)

Unavailable

19

WASHER, PLATE

90201-22629-00

Unavailable

20

GEAR, 3RD WHEEL

(537-17231-02-00)

Unavailable

21

WASHER (537)

90209-18135-00

Unavailable

22

GEAR, 5TH WHEEL

537-17251-01-00

Unavailable

23

GEAR, 1ST WHEEL

(537-17211-00-00)

Unavailable

24

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

25

CIRCLIP

93440-15012-00

Unavailable

26

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

27

GEAR, KICK IDLE

525-15651-00-00

Unavailable

28

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

Unavailable

29

CIRCLIP

93440-15012-00

Unavailable

30

BEARING(1GJ)

93306-20458-00

Unavailable

31

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

32

COLLAR (3V3)

90387-202A0-00

Unavailable

33

SPROCKET, DRIVE 11T

93832-11007-00

Unavailable

33

SPROCKET, DRIVE 12T

93832-12014-00

Unavailable

33

SPROCKET, DRIVE 13T

93832-13027-00

Unavailable

34

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

35

NUT (1L8)

90179-16226-00

Unavailable
