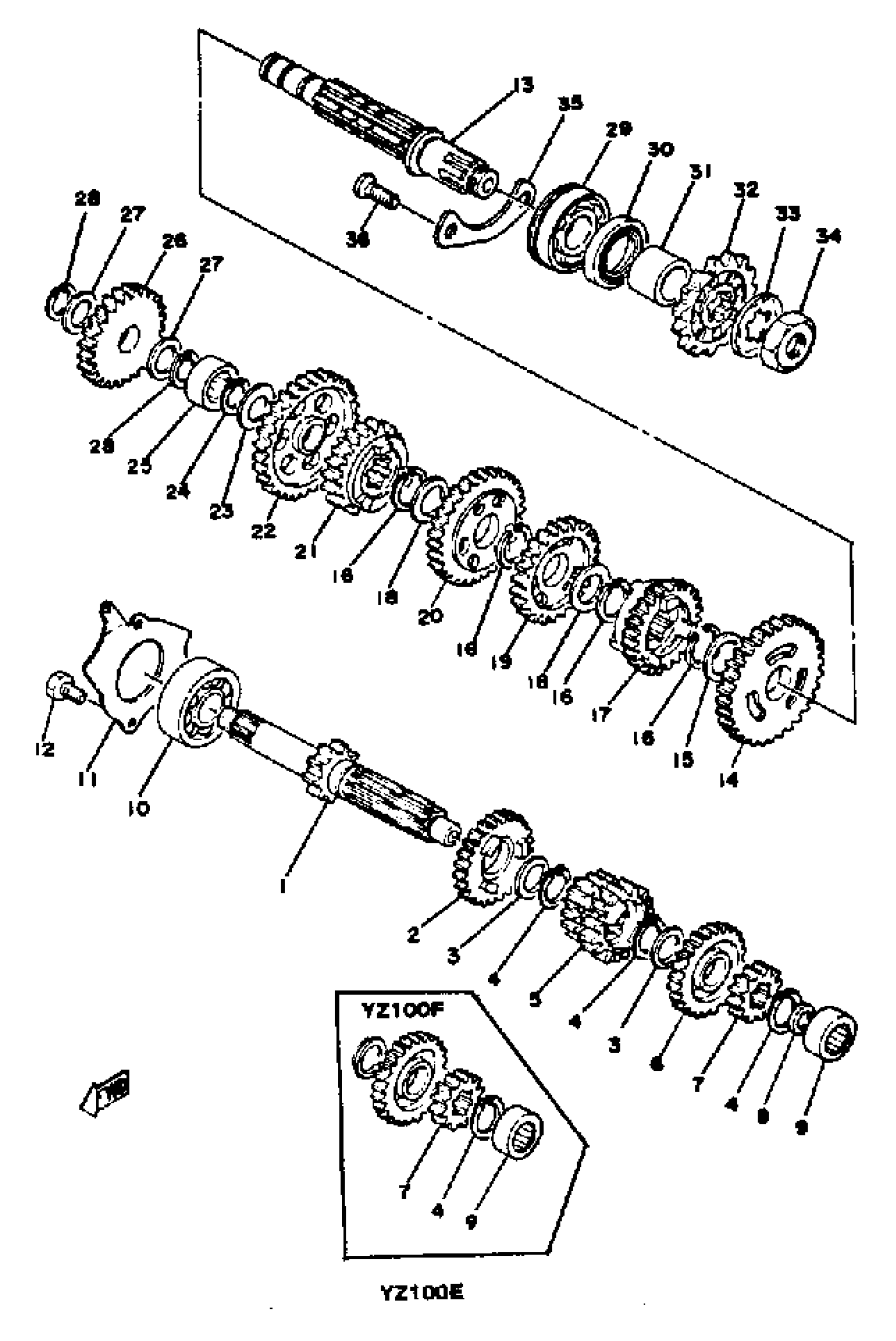

Yamaha YZ100D (YZ100D) 1977 TRANSMISSION YZ100 E - F Diagram

#

Description
Price

1

AXLE, MAIN

1W1-17411-00-00

Unavailable

2

GEAR, 5TH PINION

2W5-17151-00-00

Unavailable

3

WASHER PLATE 132172160000

90201-20266-00

$9.49

4

CIRCLIP (525)

93410-20038-00

$3.76

5

GEAR, 3RD PINION

2W5-17131-00-00

Unavailable

6

GEAR, 6TH PINION

(2W5-17161-00-00)

Unavailable

7

GEAR, 2ND PINION

1W1-17121-00-00

Unavailable

8

WASHER (566)

90201-15701-00

$8.49

9

BRG,CYL-CAL ROLLER 16G KY (1W1

93311-41530-00

$44.99

10

BEARING(4HM)

93306-30317-00

$39.99

11

PLATE, BEARING COVER

1W1-17471-01-00

$5.49

12

BOLT (661)

97013-06012-00

$5.60

13

AXLE, DRIVE

1W1-17421-00-00

Unavailable

14

GEAR, 2ND WHEEL (1W1-17221-00)

2W5-17221-00-00

Unavailable

15

WASHER, PLATE (537)

90201-22555-00

$8.49

16

CIRCLIP (537)

93410-22039-00

Unavailable

17

GEAR, 6TH WHEEL

2W5-17261-00-00

Unavailable

18

WASHER (537)

90209-18135-00

Unavailable

19

GEAR, 4TH WHEEL

2W5-17241-00-00

Unavailable

20

GEAR, 3RD WHEEL

2W6-17231-01-00

Unavailable

21

GEAR, 5TH WHEEL

2W5-17251-00-00

Unavailable

22

GEAR, 1ST WHEEL

1W1-17211-01-00

Unavailable

23

WASHER (566)

90201-15701-00

$8.49

24

CIRCLIP

93440-15012-00

Unavailable

25

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

26

GEAR, KICK IDLE

525-15651-00-00

Unavailable

27

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

Unavailable

28

CIRCLIP

93440-15012-00

Unavailable

29

BRG,R-B 6304 52MM 150G NT

93306-30411-00

Unavailable

30

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

31

COLLAR (3V3)

90387-202A0-00

Unavailable

32

SPROCKET, DRIVE 11T

93832-11007-00

Unavailable

32

SPROCKET, DRIVE 12T

93832-12014-00

Unavailable

32

SPROCKET, DRIVE 13T

93832-13027-00

Unavailable

33

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

34

NUT (1L8)

90179-16226-00

Unavailable

35

PLATE 2, BEARING COVER

1W1-15381-00-00

Unavailable

36

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable
