Description

Price

1

SHIFT PEDAL ASSY

2A6-18110-00-00

Unavailable

1

PEDAL, CHANGE

2W5-18111-00-00

Unavailable

2

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

3

BOLT, HEXAGON

97017-06020-00

$4.06

4

OIL SEAL

93101-12173-00

$13.49

5

. SHIFT SHAFT ASSEMBLY 1

1W1-18101-03-00

Unavailable

6

CIRCLIP

99006-10600-00

$9.49

7

ROLLER, CHANGE LEVER

401-18178-00-00

$19.99

8

SHIFT LEVER ASSY

4F2-18120-00-00

Unavailable

9

SPRING, TENSION (1W1)

90506-08155-00

$10.49

10

SHAFT, CHANGE STOPPER SPRING

1W1-18197-01-00

Unavailable

11

SPRING, TORSION (1W1)

90508-32349-00

$10.49

12

WASHER (692)

90201-12M34-00

Unavailable

13

CIRCLIP

99006-10600-00

$9.49

14

SCREW (1W1)

90149-08111-00

Unavailable

15

NUT (583)

90170-08193-00

Unavailable

16

WASHER LOCK 248181390000

90215-08014-00

Unavailable

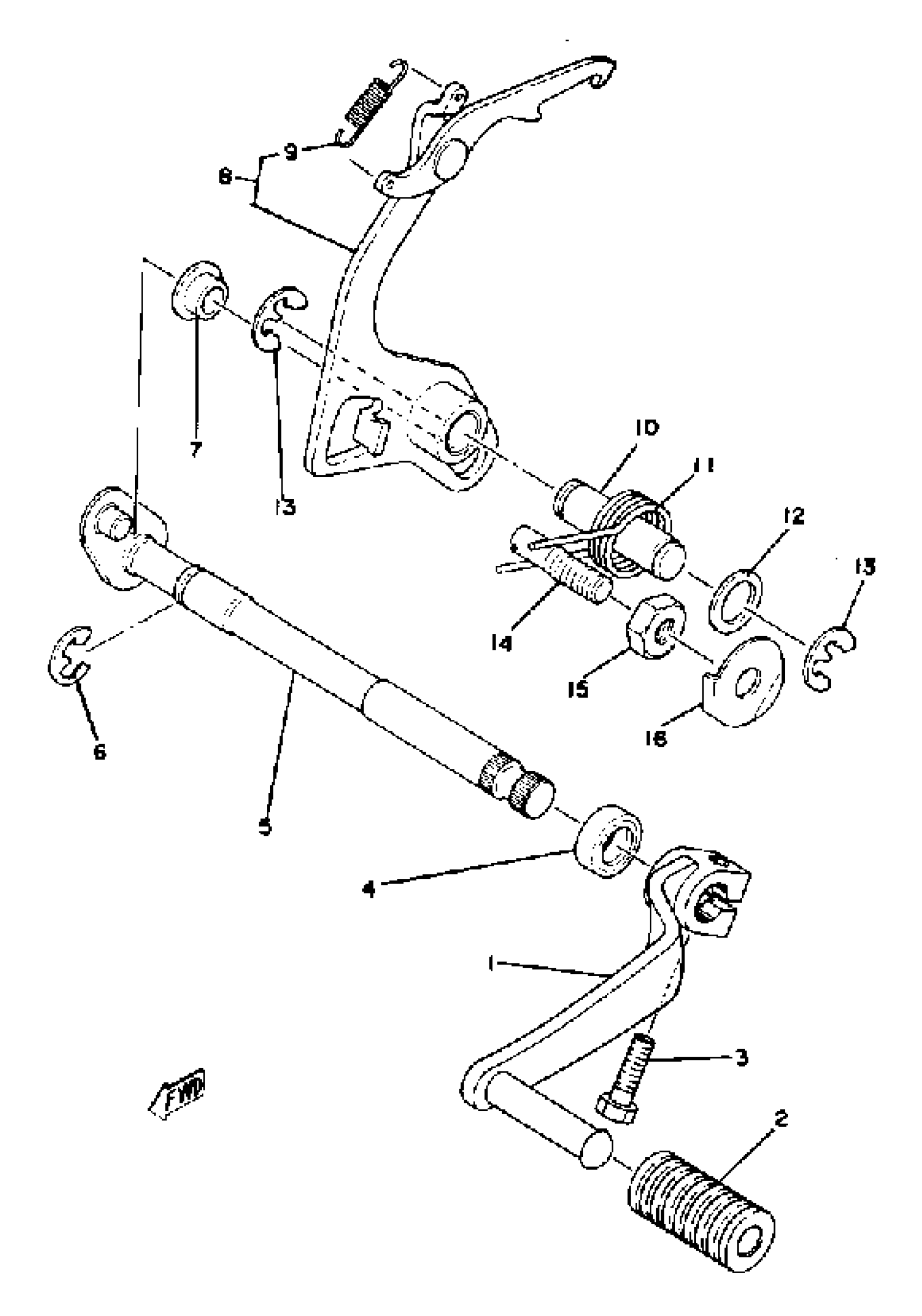

Yamaha YZ100D (YZ100D) 1977 SHIFT SHAFT YZ100 E - F Diagram

SHIFT PEDAL ASSY

PEDAL, CHANGE

COVER, CHANGE PEDAL

BOLT, HEXAGON

OIL SEAL

. SHIFT SHAFT ASSEMBLY 1

CIRCLIP

ROLLER, CHANGE LEVER

SHIFT LEVER ASSY

SPRING, TENSION (1W1)

SHAFT, CHANGE STOPPER SPRING

SPRING, TORSION (1W1)

WASHER (692)

CIRCLIP

SCREW (1W1)

NUT (583)

WASHER LOCK 248181390000
