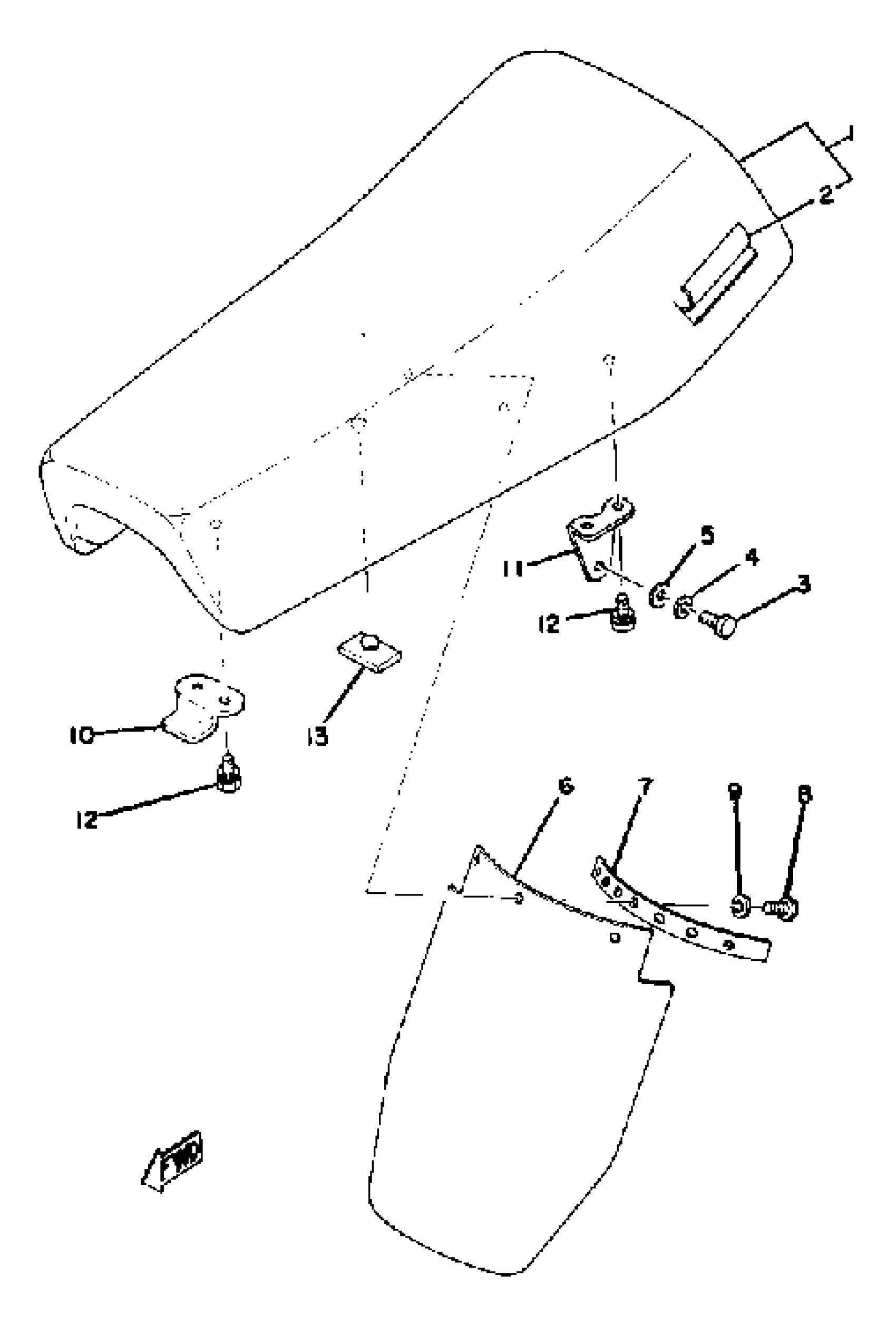

Yamaha YZ100D (YZ100D) 1977 SEAT YZ100D Diagram

#

Description
Price

1

SEMI-DBL SEAT ASSEMBLY

(537-24770-00-00)

Unavailable

2

COVER, SM-DBL SEAT

(537-24771-00-00)

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

4

WASHER, SPRING

92995-06100-00

$2.95

5

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

6

FLAP

(483-21621-00-00)

Unavailable

7

WASHER, SPECIAL 1

(1G8-21615-00-00)

Unavailable

8

SCREW, PAN

98507-06014-00

$5.76

9

WASHER, SPRING

92995-06100-00

$2.95

10

BRACKET, SEAT

2Y0-24748-00-00

Unavailable

11

BRACKET, SEAT

509-24738-01-00

Unavailable

12

BOLT (583)

90101-06304-00

$5.44

13

DAMPER, SEAT

509-24724-00-00

$8.84
