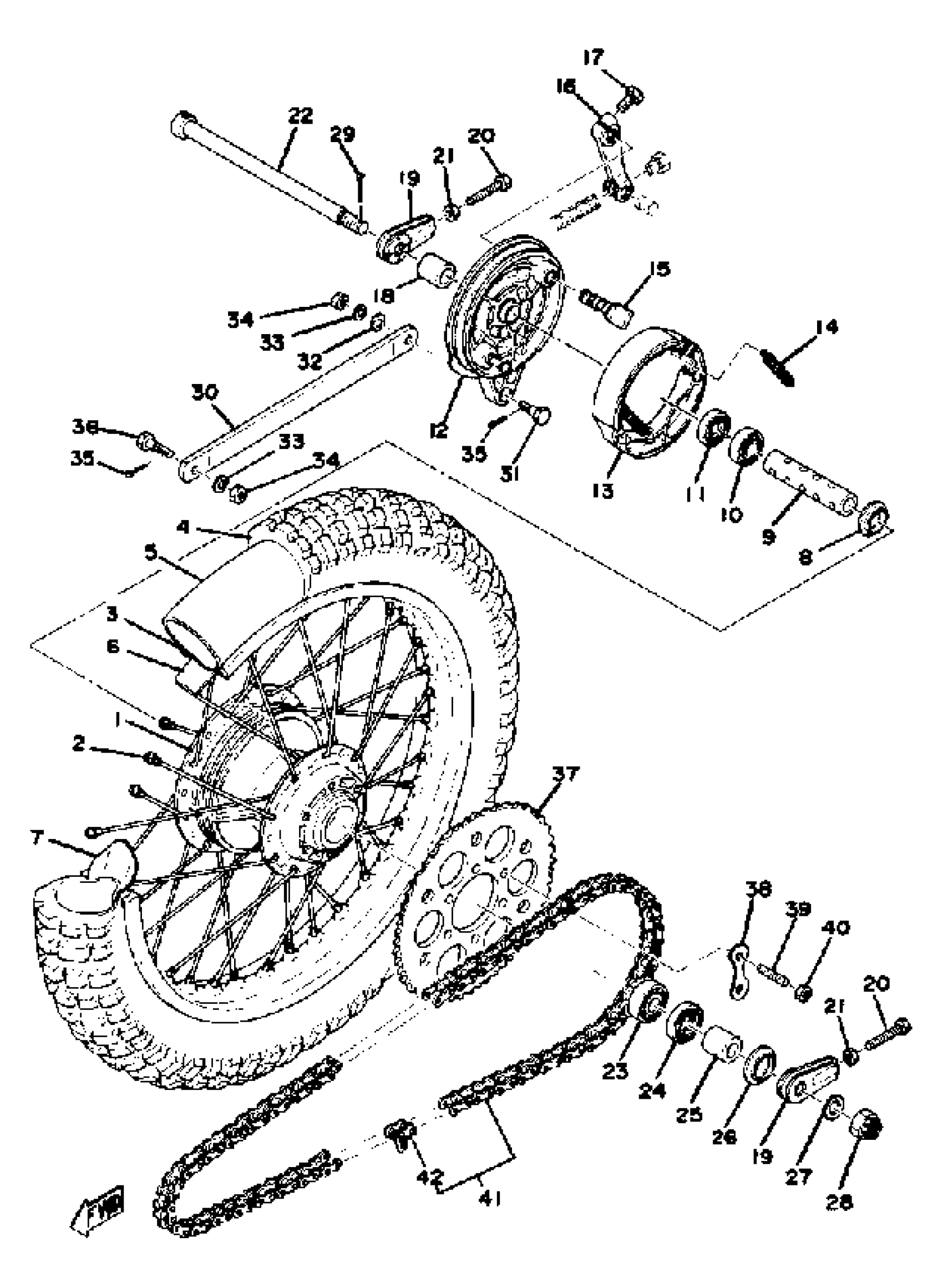

Yamaha YZ100D (YZ100D) 1977 REAR WHEEL YZ100D Diagram

#

Description
Price

1

HUB, REAR

(1G8-25311-00-98)

Unavailable

2

SPOKE SET, REAR

537-25304-01-00

Unavailable

3

RIM 1.85X18

94418-18245-00

Unavailable

4

CS 350X18 C-755-1

(94135-18551-00)

Unavailable

5

TUBE (2RH)

94232-18113-00

$29.99

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER, BEAD

2X3-25394-00-00

Unavailable

8

FLANGE, SPACER

146-25115-00-00

$6.99

9

SPACER(23A)

90560-15312-00

$38.99

10

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

11

OIL SEAL (22X35X5)

93104-22018-00

$11.49

12

BRAKE SHOE PLATE ASSY

437-25026-10-35

Unavailable

13

BRAKE SHOE SET-2PCS

183-W2536-00-00

Unavailable

14

SPRING (5T9)

90506-17328-00

Unavailable

15

CAMSHAFT

2RH-25351-00-00

$34.99

16

LEVER, CAM SHAFT

214-25355-00-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

COLLAR

90387-15524-00

Unavailable

19

PULLER, CHAIN 1

537-25388-00-00

Unavailable

20

BOLT

90101-08060-00

Unavailable

21

. NUT

95380-08700-00

Unavailable

22

AXLE, WHEEL

537-25381-01-00

Unavailable

23

BEARING

93306-30212-00

Unavailable

24

SEAL,OIL

93106-26005-00

Unavailable

25

COLLAR

90387-15523-00

Unavailable

26

COVER, DUST

401-25367-00-00

Unavailable

27

WASHER (525)

90201-15238-00

Unavailable

28

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

29

PIN, COTTER

91490-30030-00

Unavailable

30

BAR, TENSION

(537-25371-00-00)

Unavailable

31

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

32

WASHER, PLAIN

92990-08200-00

Unavailable

33

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

34

. NUT

95380-08700-00

Unavailable

35

PIN, COTTER

91490-20025-00

Unavailable

36

BOLT 1092537300

90109-08063-00

Unavailable

37

SPROCKET, DRIVEN 44T

(1G8-25444-00-00)

Unavailable

37

SPROCKET, DRIVEN 46T (SPECIAL XX ALUMINUM) (46T)

1G8-25446-01-XX

Unavailable

37

SPROCKET, DRIVEN 38T

(1J4-25438-00-00)

Unavailable

37

SPROCKET, DRIVEN 38T

(1J4-25438-00-XX)

Unavailable

37

SPROCKET, DRIVEN 40T

(1J4-25440-01-XX)

Unavailable

37

SPROCKET, DRIVEN 42T

(1J4-25442-00-00)

Unavailable

37

SPROCKET, DRIVEN 42T

(1J4-25442-00-XX)

Unavailable

38

WASHER, SPECIAL.

1G8-25412-00-00

Unavailable

39

BOLT, STUD (537 HUB)

90116-10221-00

Unavailable

40

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

41

DRIVE CHAIN 520-90L

(94585-20090-00)

Unavailable

41

CHAIN 520TR-94L (DK520TR-94L)

94585-20094-00

Unavailable

42

. JOINT CHAIN

94680-11001-00

Unavailable
