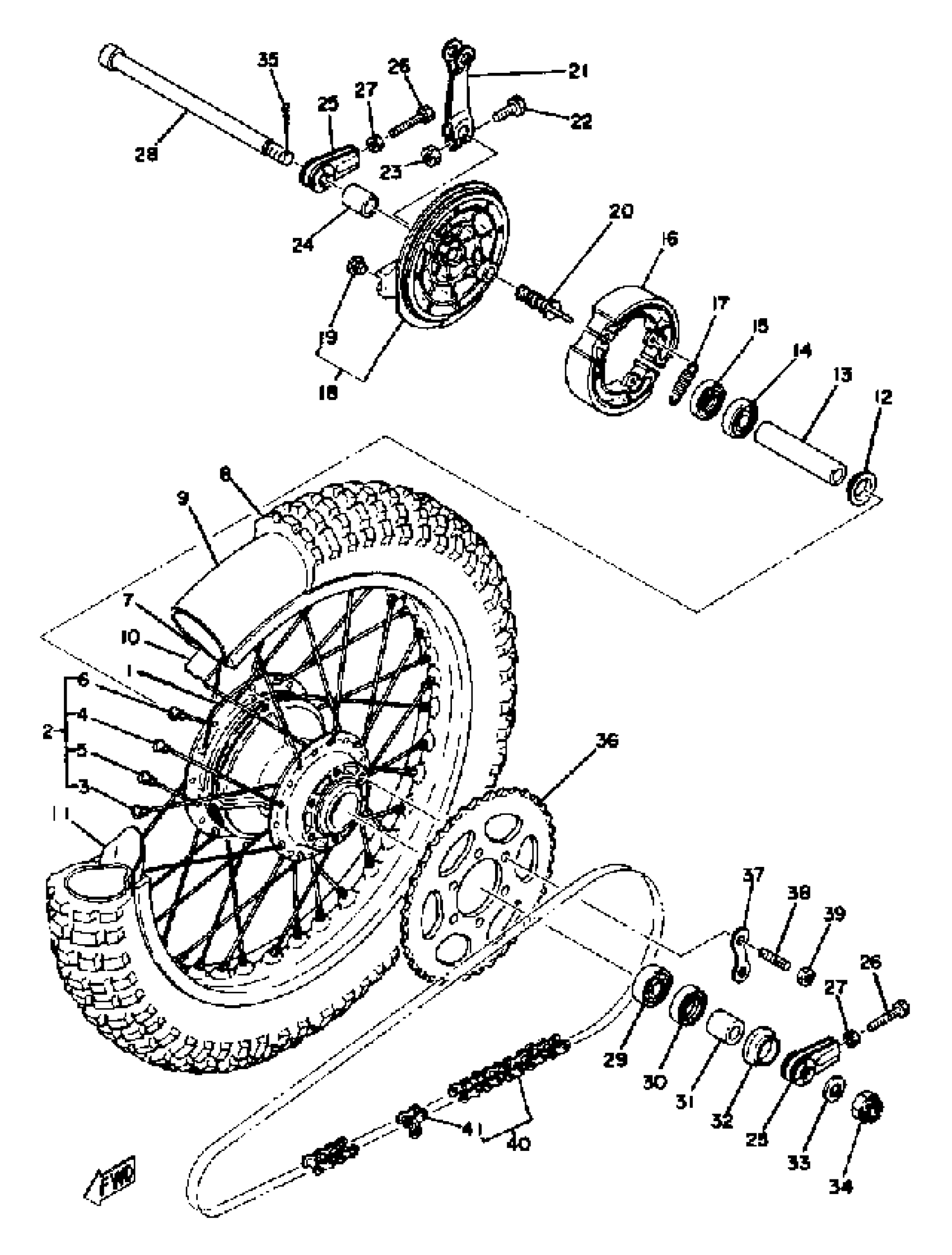

Yamaha YZ100D (YZ100D) 1977 REAR WHEEL YZ100 E - F Diagram

#

Description
Price

1

HUB, REAR

1W1-25311-00-98

Unavailable

2

SPOKE SET, REAR

537-25304-01-00

Unavailable

3

SPOKE SET, INNER 2

(537-25396-90-00)

Unavailable

4

SPOKE SET, OUTER 2

(537-25397-90-00)

Unavailable

5

SPOKE SET, INNER 1

(537-25391-90-00)

Unavailable

6

SPOKE SET, OUTER 1

(537-25392-90-00)

Unavailable

7

RIM 1.85X18

94418-18245-00

Unavailable

8

CS 350X18 C-755-1

(94135-18551-00)

Unavailable

9

TUBE (2RH)

94232-18113-00

$29.99

10

BAND, RIM (2J4)

94340-18086-00

$17.99

11

UNAVAILABLE IN PRICE BOOK (537-25394-00)

2X3-18043-00-00

Unavailable

12

FLANGE, SPACER

146-25115-00-00

$6.99

13

SPACER(23A)

90560-15312-00

$38.99

14

BEARING(3DL)

93306-20226-00

$38.99

15

OIL SEAL (22X35X5)

93104-22018-00

$11.49

16

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

17

SPRING (5T9)

90506-17328-00

Unavailable

18

BRAKE SHOE PLATE ASSEMBLY (2A6-25026-00-98)BRAKE SHOE PLAT

99999-02024-00

Unavailable

19

GROMMET (397)

90480-10068-00

Unavailable

20

CAMSHAFT

2RH-25351-00-00

Unavailable

21

UNAVAILABLE IN PRICE BOOK

1E6-25155-00-00

Unavailable

22

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

COLLAR

90387-15524-00

Unavailable

25

PULLER, CHAIN 1

537-25388-00-00

Unavailable

26

BOLT

90101-08060-00

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

AXLE, WHEEL

537-25381-01-00

Unavailable

29

BEARING

93306-30212-00

Unavailable

30

SEAL,OIL

93106-26005-00

Unavailable

31

COLLAR

90387-15523-00

Unavailable

32

COVER, DUST

401-25367-00-00

Unavailable

33

WASHER (525)

90201-15238-00

Unavailable

34

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

35

PIN, COTTER

91490-30030-00

Unavailable

35

PIN, COTTER

91490-30030-00

Unavailable

36

SPROCKET, DRIVN 41T

2K5-25441-00-XX

Unavailable

36

SPROCKET, DRIVN 43T (2K5-25443-00) (43T)

2K5-25443-00-XX

Unavailable

36

SPROCKET, DRIVN 45T

(2K5-25445-00-XX)

Unavailable

37

WASHER, SPECIAL.

1G8-25412-00-00

Unavailable

38

BOLT, STUD (537 HUB)

90116-10221-00

Unavailable

39

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

40

DID520DS-98L (DID520DS 98L)

9Y58E-20097-00

Unavailable

41

. JOINT CHAIN

94680-11001-00

Unavailable
