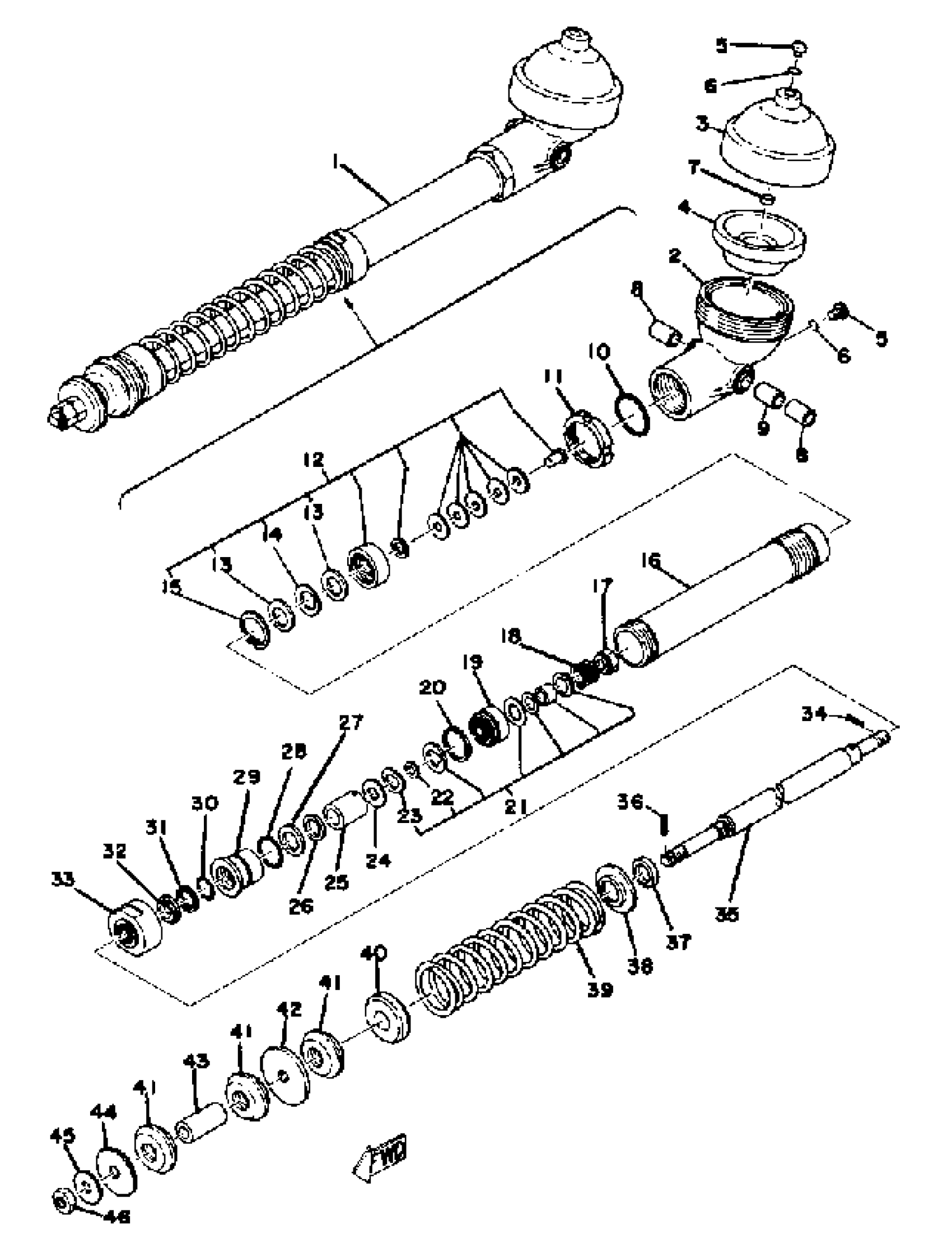

Yamaha YZ100D (YZ100D) 1977 REAR CUSHION YZ100D Diagram

#

Description

Price

1

SHK/ABS ASSEMBLY, REAR

(1J4-22210-01-00)

Unavailable

2

HOUSING, MEMBRANE

(509-22411-01-00)

Unavailable

3

CAP, HOUSING

(509-22412-00-00)

Unavailable

4

MEMBRANE

(483-22413-02-00)

Unavailable

5

SCREW, BIND(2TV)

98980-06008-00

$3.19

6

O-RING (26H)

93210-06632-00

$8.49

7

. VALVE, RUBBER

483-22419-01-00

Unavailable

8

BUSH, BIMETAL SOLID

(90382-12019-00)

Unavailable

9

. COLLAR (122-148-26)

90387-12493-00

Unavailable

10

O-RING (483MXS)

93210-42263-00

Unavailable

11

NUT, SPECIAL SHAPE

(90179-44068-00)

Unavailable

12

SPRING SEAT SB/ASSEMBLY

(509-22406-01-00)

Unavailable

13

PLATE, VALVE 3

(509-22453-01-00)

Unavailable

14

LEAF, SPRING 2

(483-22458-00-00)

Unavailable

15

CIRCLIP(47Y)

99009-35500-00

$8.49

16

CYLINDER, SHOCK ABS

(509-22471-01-00)

Unavailable

17

NUT, SPEC''L SHAPE

(90179-12228-00)

Unavailable

18

SPRING, COMPRESSION

(90501-29327-00)

Unavailable

19

PISTON, SHOCK ABS

(483-22431-00-00)

Unavailable

20

RING, SHK/ABS PSTN

(509-22437-00-00)

Unavailable

21

VALVE SUB ASSEMBLY, BTM

(509-22405-01-00)

Unavailable

22

PLATE, VALVE 2

(509-22435-01-00)

Unavailable

23

LEAF, SPRING 1

(483-22436-00-00)

Unavailable

24

WASHER, PLATE

(90201-12525-00)

Unavailable

25

STOPPER

(509-22482-02-00)

Unavailable

26

SPACER

(90560-18143-00)

Unavailable

27

DAMPER 1

(483-22483-02-00)

Unavailable

28

. O-RING

93210-31264-00

Unavailable

29

HOUSING, SEAL RING

(483-22473-00-00)

Unavailable

30

O-RING (122)

93210-23029-00

Unavailable

31

OIL SEAL, SO-TYPE

(93104-22052-00)

Unavailable

32

. OIL SEAL, SD-TYPE (SD-22-30-55)

93102-22141-00

Unavailable

33

CAP, CASE

(483-22472-01-00)

Unavailable

34

PIN, COTTER

91490-25020-00

Unavailable

35

ROD, PISTON

(509-22481-02-00)

Unavailable

36

PIN COTTER

91490-30025-00

Unavailable

37

. WASHER, PLATE

90202-22091-00

Unavailable

38

GUIDE, SPRING 1

(483-22214-01-00)

Unavailable

39

SPRING, RED

(90501-85402-00)

Unavailable

39

SPRING, 3.4 R/WHT

(90501-85423-00)

Unavailable

39

SPRING, 3.6 R/YEL

(90501-85424-00)

Unavailable

39

SPRING, 4.0 R/GRN

(90501-85425-00)

Unavailable

39

SPRING, 4.2 R/BLU

(90501-85426-00)

Unavailable

40

SEAT, SPRING UPPER

(509-22213-01-00)

Unavailable

41

. UNAVAILABLE IN PRICE BOOK

583-22492-01-00

Unavailable

42

. NUT, SPECIAL SHAPE

90179-16189-00

Unavailable

43

. COLLAR (142-22-48)

90387-14274-00

Unavailable

44

. WASHER, PLATE

90201-14582-00

Unavailable

45

WASHER, PLATE(3FC)

90201-142M6-00

Unavailable

46

NUT(6TC)

95337-14600-00

Unavailable
