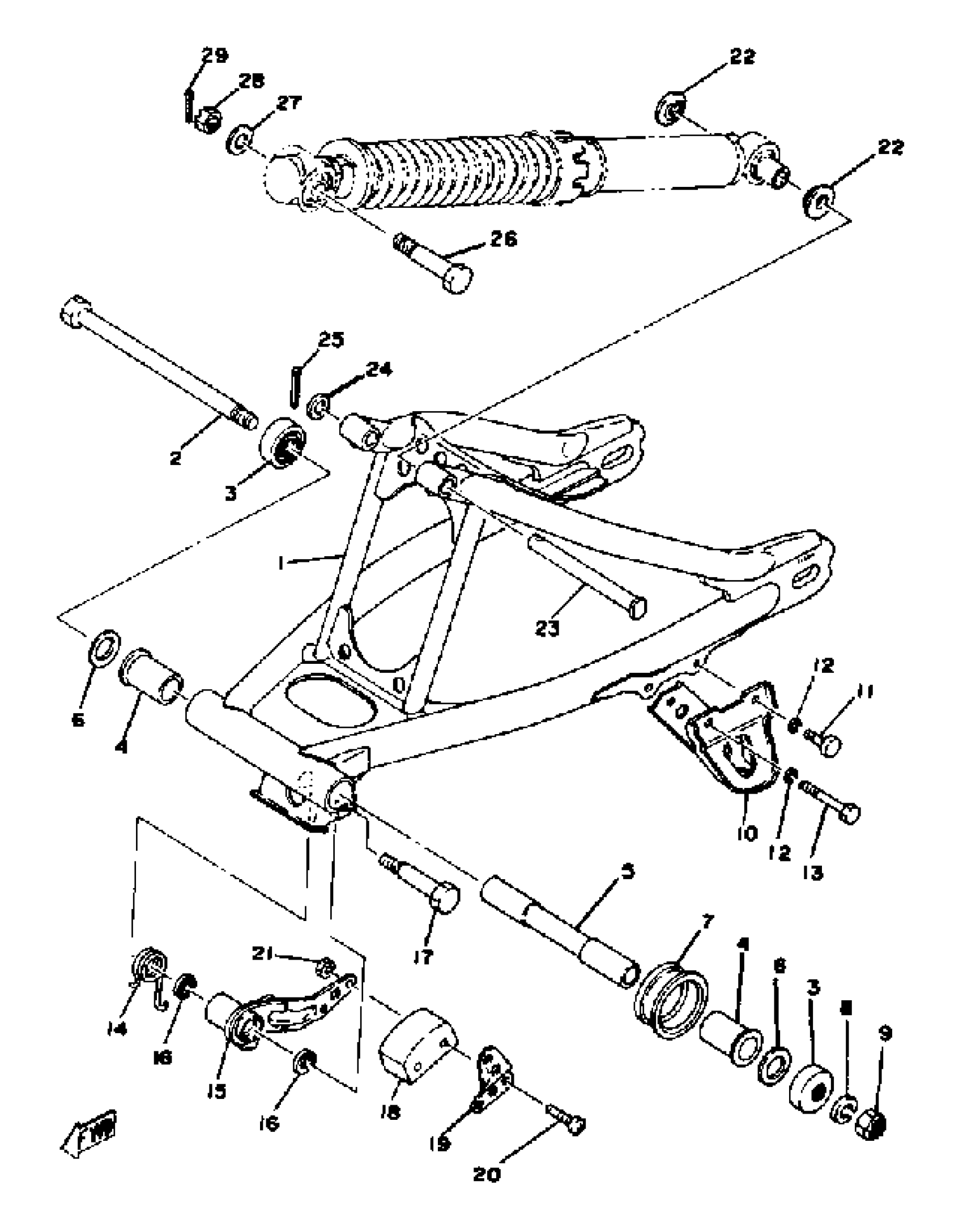

Yamaha YZ100D (YZ100D) 1977 REAR ARM YZ100 E - F Diagram

#

Description
Price

1

REAR ARM

(2K5-22110-00-33)

Unavailable

2

SHAFT, PIVOT

2N4-22141-00-00

$28.99

3

COVER, THRUST 1

401-22128-01-00

$29.99

4

BUSHING (401-22123-00)

90386-18028-00

$26.99

5

BUSH 2

18G-22124-00-00

Unavailable

6

SHIM

401-22127-00-00

$7.99

7

SEAL, GUARD

2A6-22151-00-00

$9.99

8

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

9

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

10

GUARD, CHAIN

2W6-22153-00-00

Unavailable

11

BOLT (661)

97013-06012-00

$5.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

14

SPRING, TORSION (1J4)

90508-35350-00

Unavailable

15

ARM, TENSIONER

2A6-22179-01-00

Unavailable

16

OIL SEAL (2K8)

93109-14021-00

Unavailable

17

BOLT (1J4)

90109-10483-00

Unavailable

18

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

19

GUIDE, CHAIN

1W1-22187-00-00

Unavailable

20

SCREW, PAN

98507-05035-00

Unavailable

21

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

22

COVER, THRUST

1W1-22128-00-00

Unavailable

23

PIN,CLEVIS

90240-12059-00

Unavailable

24

WASHER, PLATE(663)

92990-12600-00

Unavailable

25

PIN, COTTER

91490-30030-00

Unavailable

26

BOLT (1M1)

90109-10453-00

Unavailable

27

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

28

NUT, CASTLE

95307-10900-00

Unavailable

29

PIN, COTTER

91490-20025-00

Unavailable
