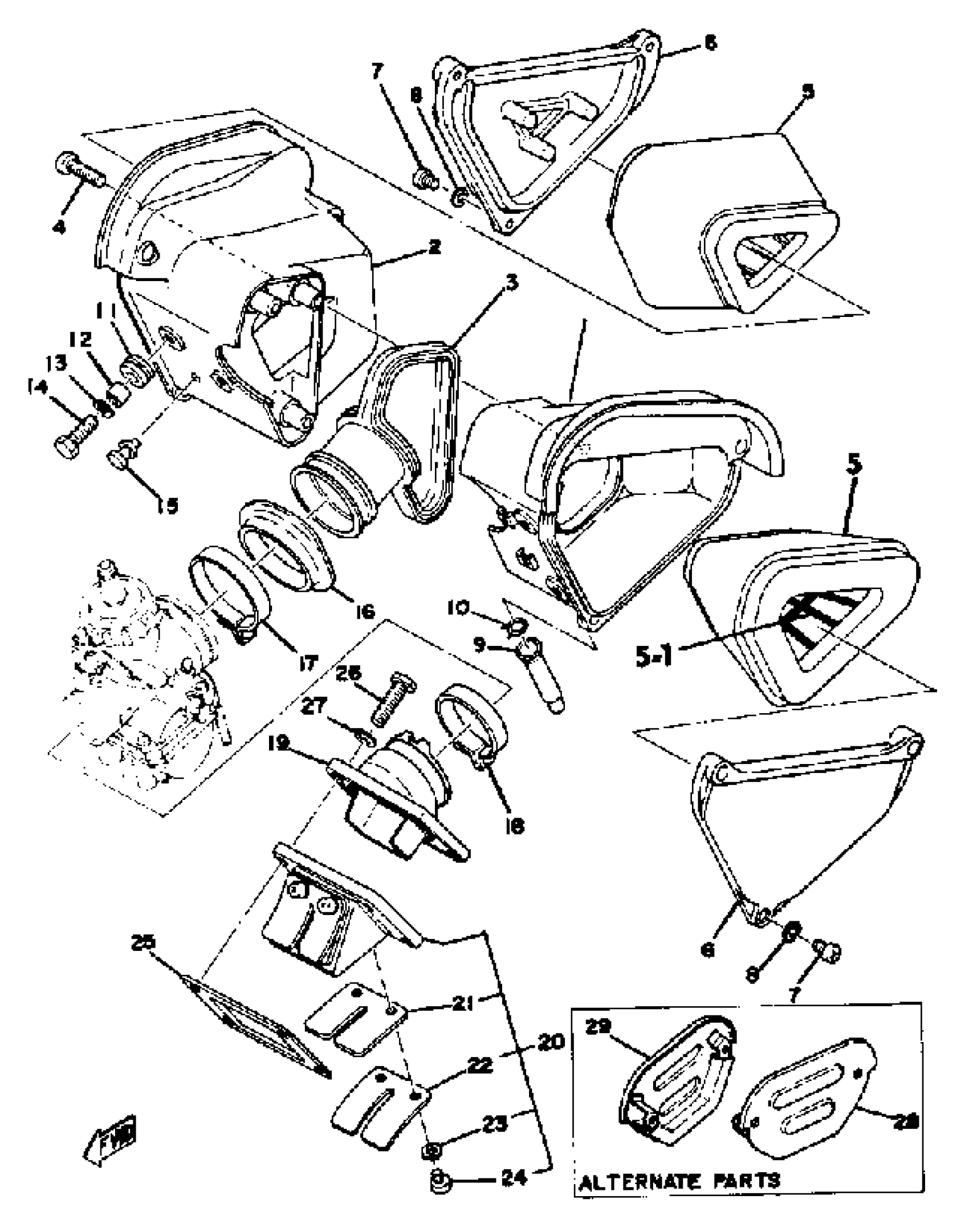

Yamaha YZ100D (YZ100D) 1977 INTAKE YZ100D Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

(2K5-14411-00-00)

Unavailable

1

GUIDE, ELEMENT

537-14458-00-00

Unavailable

2

CASE, AIR CLEANER 2

(2K5-14421-00-00)

Unavailable

3

JOINT, AIR CLEANER 1

(537-14453-00-00)

Unavailable

4

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

5

ELEMENT, AIR CLNR (537-14450-00)

537-14451-00-00

Unavailable

6

CAP, CLEANER CASE 1

537-14412-00-00

Unavailable

7

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

8

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

9

SEAL (509-14457-01)

509-14457-00-00

Unavailable

10

CLIP (371)

90467-14015-00

$8.49

11

GROMMET 839774310000

90480-14023-00

$7.49

12

COLLAR 437216330000

90387-07391-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

BOLT, HEXAGON

97017-06025-00

$4.24

15

GROMMET

(90480-05169-00)

Unavailable

16

COVER 1

537-14417-00-00

Unavailable

17

BAND

90460-54062-00

Unavailable

18

CLAMP, HOSE (5H0)

90460-43179-00

Unavailable

19

JOINT, CARBURETOR

(1J4-13565-00-00)

Unavailable

20

REED VALVE ASSY

345-13610-20-00

Unavailable

21

. REED, VALVE (401-13613-00)

2R9-13613-00-00

Unavailable

22

. STOPPER, REED VALVE

345-13616-70-00

Unavailable

23

WASHER, SPRING

92990-03100-00

Unavailable

24

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

25

GASKET, VALVE SEAT

87A-13621-00-00

Unavailable

26

BOLT, HEXAGON

97017-06025-00

$4.24

27

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

28

CAP, CLEANER CASE 1

(1J4-14412-10-00)

Unavailable

29

CAP, CLEANER CASE 2

(1J4-14422-10-00)

Unavailable
