- YZ100D (YZ100D) 1977
HANDLE - WIRE YZ100E

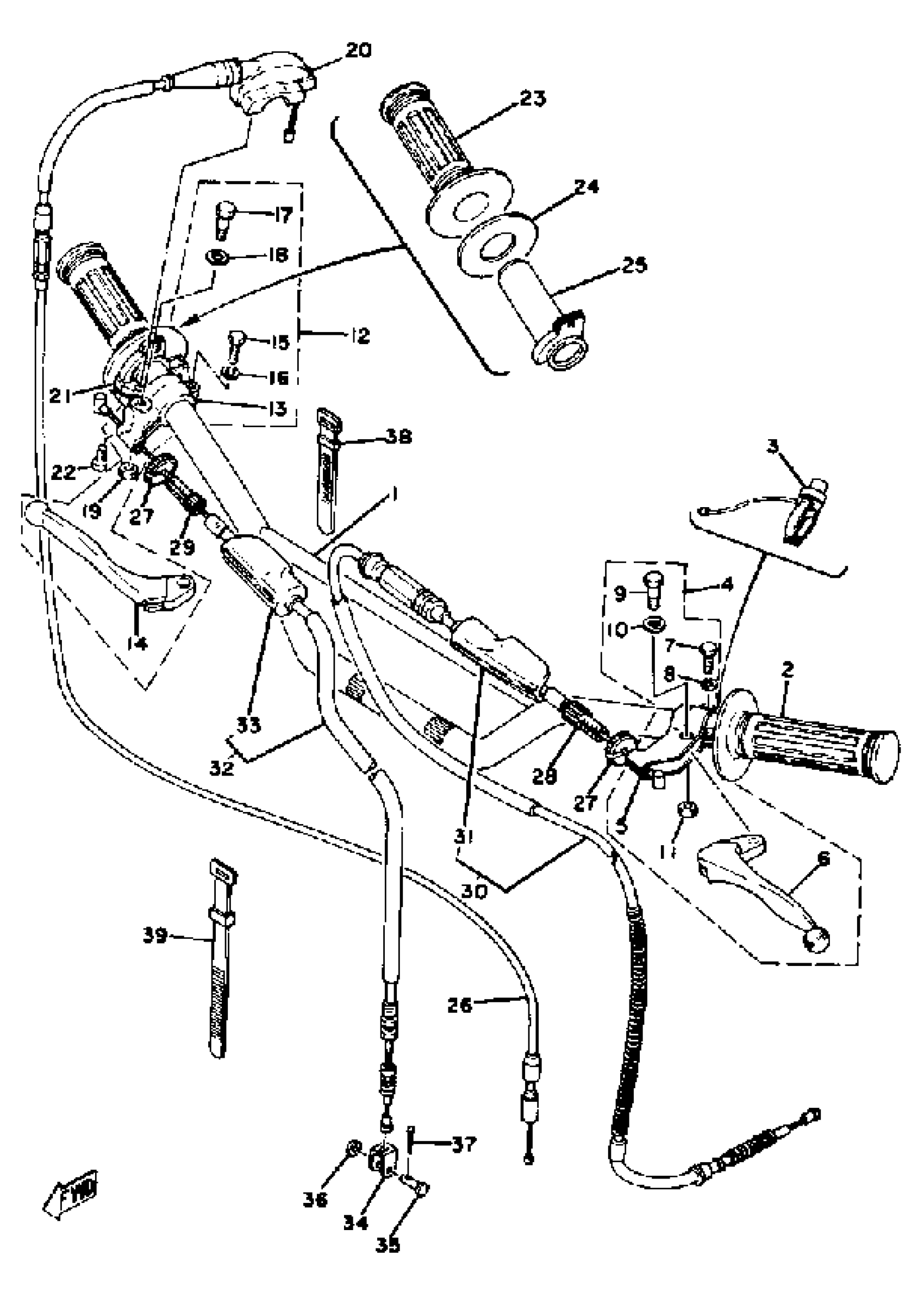

Yamaha YZ100D (YZ100D) 1977 HANDLE - WIRE YZ100E Diagram
#
Description
Price
3
SWITCH, HANDLE 1
23X-83976-01-00
Unavailable
4
LEVER HOLDER ASSEMBLY 1 (583-82910-10)
583-82910-11-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
12
LEVER HOLDER ASSEMBLY 2
(583-82920-11-00)
Unavailable
13
HOLDER, LEVER 2
516-82921-30-00
Unavailable
16
WASHER, SPRING
92995-06100-00
Unavailable
20
CAP, GRIP UPPER
322-26281-00-98
Unavailable
21
CAP, GRIP UNDER
322-26282-00-00
Unavailable
22
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
23
GRIP (R.H)
583-26242-00-00
Unavailable
24
RING, LEAF
1W1-26249-00-00
Unavailable
25
TUBE, THROTTLE GUIDE
22W-26243-00-00
Unavailable
26
CABLE, THROTTLE 1
2K5-26311-02-00
Unavailable
27
NUT
90179-08030-00
Unavailable
28
BOLT
90123-08002-00
Unavailable
29
BOLT
90123-08002-00
Unavailable
30
CABLE, CLUTCH
2K5-26335-00-00
Unavailable
31
COVER, LEVER
498-26372-00-00
Unavailable
32
CABLE, BRAKE
2K5-26341-00-00
Unavailable
33
COVER, LEVER
498-26372-00-00
Unavailable
34
JOINT, WIRE
156-26347-00-00
Unavailable
35
PIN W/HOLE 307181180000
90240-08013-00
Unavailable
37
PIN, COTTER
91490-20025-00
Unavailable
38
BAND, SWITCH CORD
437-83936-01-00
Unavailable
39
BAND, SWITCH CORD
437-83936-11-00
Unavailable
