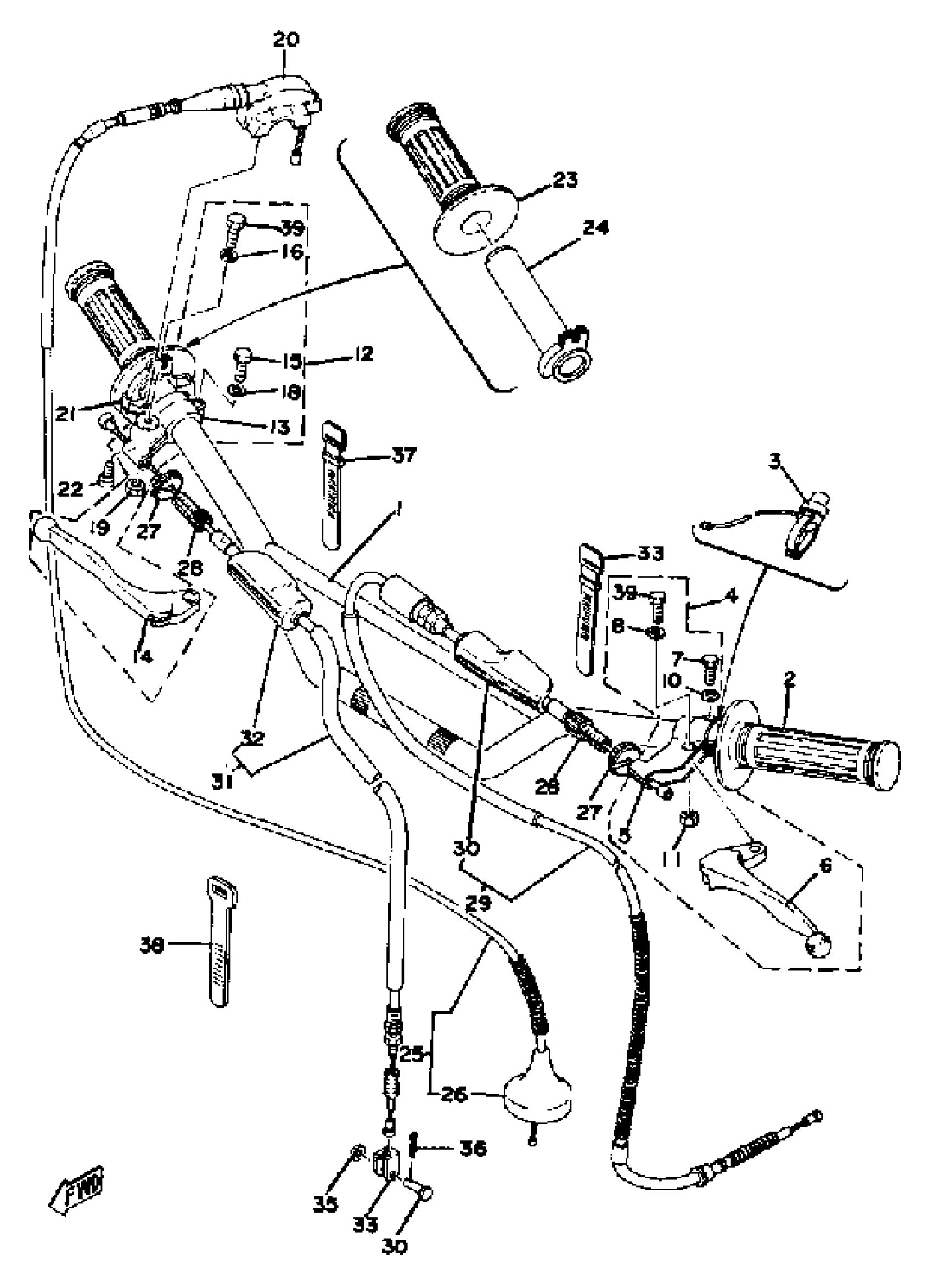

Yamaha YZ100D (YZ100D) 1977 HANDLE - WIRE YZ100D Diagram

#

Description
Price

1

HANDLEBAR

(1J4-26111-00-00)

Unavailable

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

3

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

4

LEVER HOLDER ASSEMBLY 1 (583-82910-10)

583-82910-11-00

Unavailable

5

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

6

LEVER, HANDLE (L.H)

1J3-83912-20-00

$44.99

7

BOLT, HEXAGON

97013-06022-00

$0.90

8

WASHER, PLATE 1562722600

90201-08083-00

$9.49

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

LEVER HOLDER ASSEMBLY 2

(583-82920-11-00)

Unavailable

13

HOLDER, LEVER 2

516-82921-30-00

Unavailable

14

LEVER (R.H)

2A6-83922-00-00

$42.99

15

BOLT, HEXAGON

97013-06022-00

$0.90

16

WASHER, PLATE 1562722600

90201-08083-00

$9.49

18

WASHER, SPRING

92995-06100-00

Unavailable

19

NUT, SELF-LOCKING

95617-06100-00

$8.49

20

CAP, GRIP UPPER

322-26281-00-98

Unavailable

21

CAP, GRIP UNDER

322-26282-00-00

Unavailable

22

SCREW, PAN HEAD

98580-05020-00

Unavailable

23

GRIP (R.H)

583-26242-00-00

Unavailable

24

TUBE, THROTTLE GUIDE

22W-26243-00-00

Unavailable

25

CABLE, THROTTLE 1

537-26311-00-00

Unavailable

26

. CAP, RUBBER

431-26329-00-00

Unavailable

27

NUT

90179-08030-00

Unavailable

28

BOLT

90123-08002-00

Unavailable

29

CABLE, CLUTCH

537-26335-00-00

Unavailable

30

COVER, LEVER

498-26372-00-00

Unavailable

31

CABLE, BRAKE

1G8-26341-00-00

Unavailable

32

COVER, LEVER

498-26372-00-00

Unavailable

33

JOINT, WIRE

156-26347-00-00

Unavailable

34

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

35

WASHER, PLATE 1562722600

90201-08083-00

$9.49

36

PIN, COTTER

91490-20025-00

Unavailable

37

BAND, SWITCH CORD

437-83936-01-00

Unavailable

38

BAND

341-26397-01-00

Unavailable

39

BOLT(3GB)

90109-061F3-00

Unavailable
