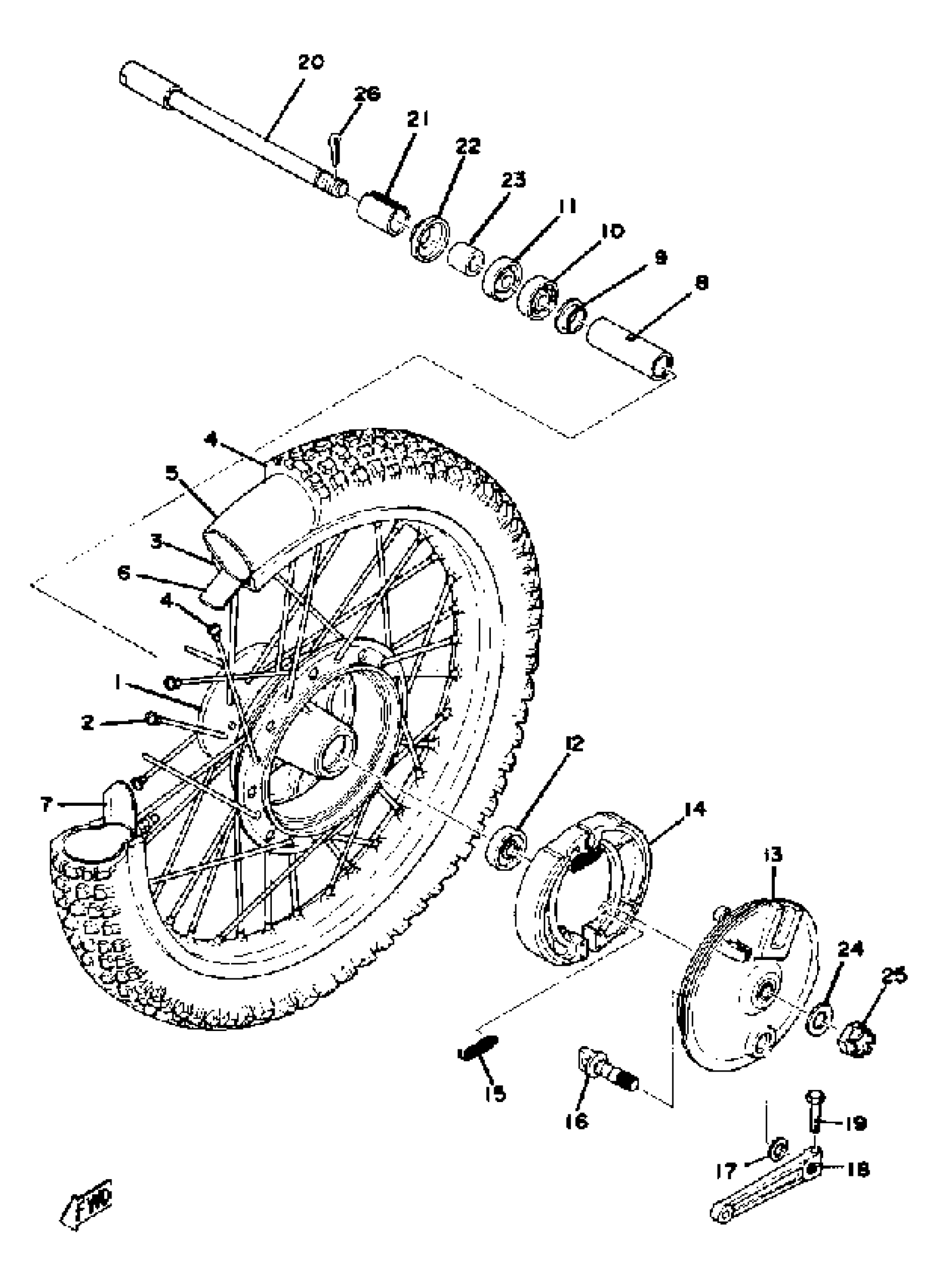

Yamaha YZ100D (YZ100D) 1977 FRONT WHEEL YZ100D Diagram

#

Description
Price

1

HUB, FRONT

1K7-25111-10-98

Unavailable

2

SPOKE SET, FRONT

2W6-25104-02-00

Unavailable

3

RIM 1.60X21

94416-21326-00

Unavailable

4

275X21 BS M7

(94127-21216-00)

Unavailable

5

TUBE, FRONT (2A6)

94227-21123-00

$47.99

6

BAND, RIM

(94327-21024-00)

Unavailable

7

SPACER, BEAD

1T1-25194-00-00

Unavailable

8

SPACER

90560-15116-00

Unavailable

9

FLANGE, SPACER

146-25116-00-00

$8.99

10

BEARING

93306-20205-00

$38.99

11

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

12

BEARING(3DL)

93306-20226-00

$38.99

13

PLATE, BRAKE SHOE

(322-25121-00-98)

Unavailable

14

BRAKE SHOE KIT

322-W253A-10-00

$29.99

15

SPRING (5T9)

90506-17328-00

Unavailable

16

CAMSHAFT

23X-25151-00-00

Unavailable

17

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

18

LEVER, CAMSHAFT 1

322-25155-00-00

Unavailable

19

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

20

AXLE, WHEEL

275-25181-00-00

Unavailable

21

COLLAR (322-25186-00)

90387-15116-00

Unavailable

22

COVER, HUB DUST

322-25118-00-00

Unavailable

23

COLLAR (322-25183-00)

90387-15418-00

Unavailable

24

WASHER, PLAIN

92990-14200-00

Unavailable

25

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

26

PIN, COTTER

91490-30030-00

Unavailable
