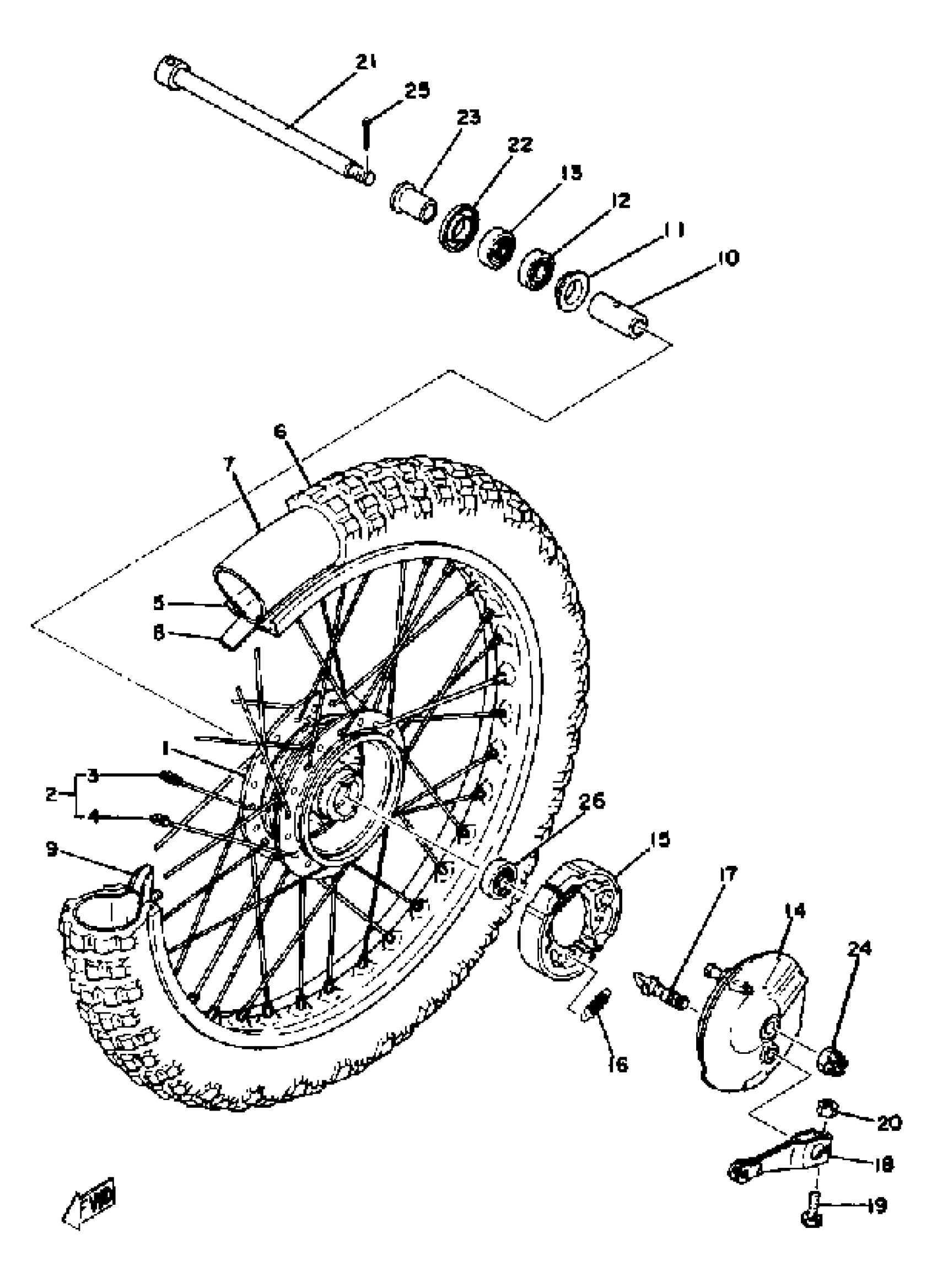

Yamaha YZ100D (YZ100D) 1977 FRONT WHEEL YZ100 E - F Diagram

#

Description

Price

1

HUB, FRONT

248-25111-00-98

Unavailable

2

SPOKE SET, FRONT

345-25104-01-00

Unavailable

3

SPOKE SET, INNER 1

(345-25196-90-00)

Unavailable

4

SPOKE SET, OUTER 1

(345-25197-90-00)

Unavailable

5

RIM 1.40X21

(94414-21155-00)

Unavailable

5

RIM 1.60X21

94416-21265-00

Unavailable

6

275X21 IRC MX45

(94127-21287-00)

Unavailable

6

300X21 IRC MX

(94130-21376-00)

Unavailable

7

TUBE

94230-21126-00

Unavailable

8

BAND, RIM

(94330-21088-00)

Unavailable

9

SPACER, BEAD

1T1-25194-00-00

Unavailable

10

SPACER

90560-12138-00

Unavailable

11

FLANGE, SPACER

109-25315-00-00

$7.99

12

BEARING

93306-30102-00

$39.99

13

OIL SEAL (18X37X8-109)

93102-18008-00

$25.99

14

PLATE, BRAKE SHOE

2K5-25121-01-98

Unavailable

15

BRAKESHOE SET

22F-W2534-00-00

Unavailable

16

SPRING, TENSION (566).

90506-16150-00

Unavailable

17

CAM SHAFT

122-25351-02-00

Unavailable

18

LEVER, CAMSHAFT 1 (401-25155-00)

401-25155-11-00

Unavailable

19

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

SHAFT, WHEEL

353-25381-00-00

Unavailable

22

COVER, HUB DUST

2K5-25118-00-00

Unavailable

23

COLLAR (462)

90387-12265-00

Unavailable

24

NUT 3532518200

90171-10004-00

Unavailable

25

PIN, COTTER

91490-20025-00

Unavailable

26

BEARING

93306-30102-00

$39.99
