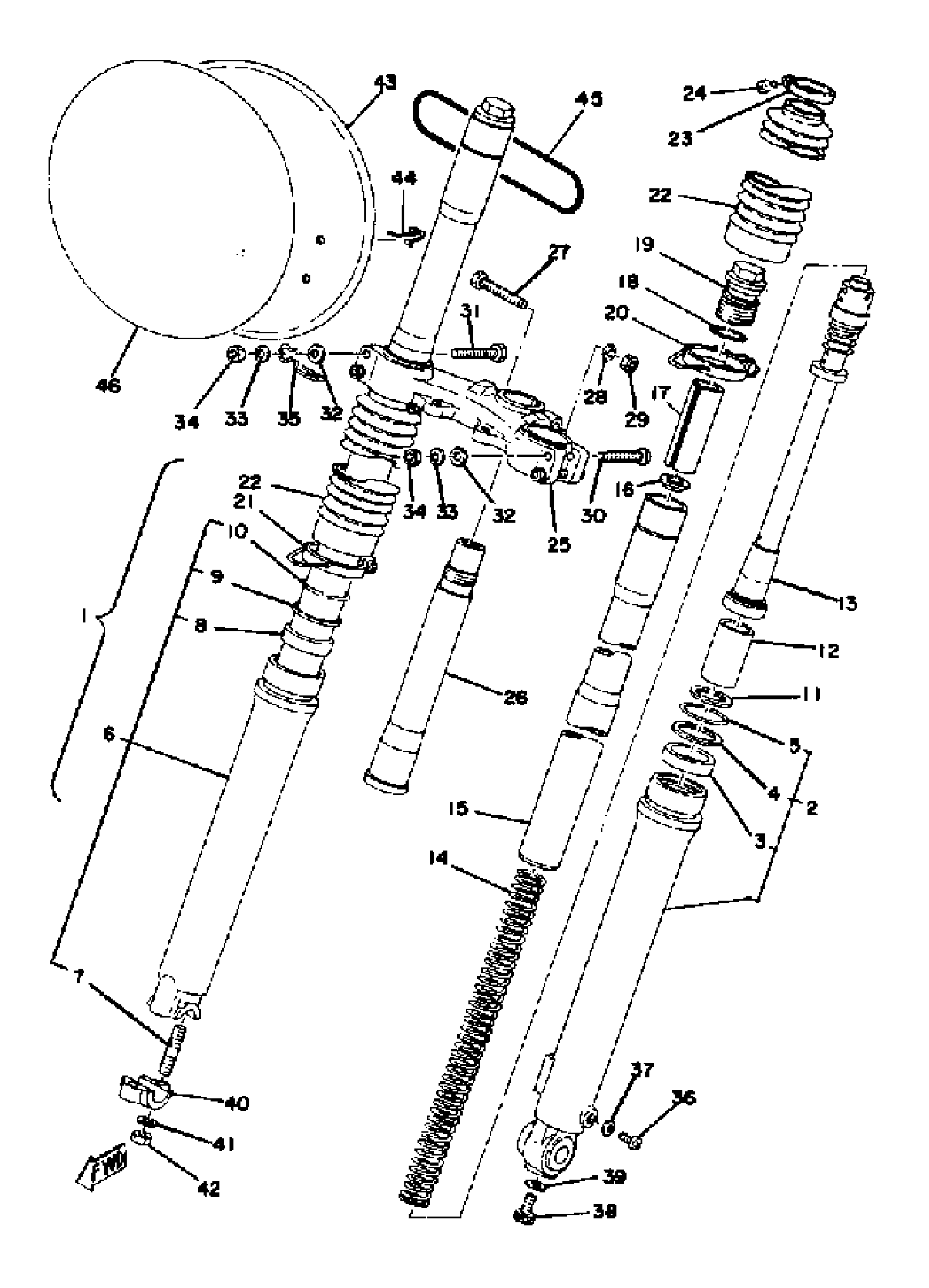

Yamaha YZ100D (YZ100D) 1977 FRONT FORK YZ100D Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(1J4-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(498-23126-00-00)

Unavailable

3

OIL SEAL

584-23145-50-00

$62.99

4

.. WASHER, OIL SEAL

214-23146-00-00

Unavailable

5

.. CLIP, OIL SEAL

214-23156-00-00

Unavailable

6

TUBE, OUTER 2

(498-23136-00-00)

Unavailable

7

BOLT, STUD (278)

90116-08261-00

$4.77

8

OIL SEAL

584-23145-50-00

$62.99

9

.. WASHER, OIL SEAL

214-23146-00-00

Unavailable

10

.. CLIP, OIL SEAL

214-23156-00-00

Unavailable

11

. CIRCLIP, INNER

93450-30033-00

Unavailable

12

PISTON, FRONT FORK

(509-23171-00-00)

Unavailable

13

CYLINDER, FRONT FORK

(509-23170-01-00)

Unavailable

14

SPRING, FRONT FORK

(509-23141-01-00)

Unavailable

15

TUBE, INNER 1

(509-23124-01-00)

Unavailable

16

. SEAT, SPRING UPPER

278-23142-50-00

Unavailable

17

SPACER

(33Y-23118-00-00)

Unavailable

18

. GASKET

214-23114-00-00

Unavailable

19

BOLT, CAP

(291-23111-60-00)

Unavailable

20

CLAMP, HOSE

(90460-54061-00)

Unavailable

21

BAND

90460-54062-00

Unavailable

22

BOOT, FRONT FORK

(1J4-23191-00-00)

Unavailable

23

BAND

(214-23192-40-00)

Unavailable

24

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

25

BRACKET, LOWER

(483-23345-00-33)

Unavailable

26

SHAFT, STEERING

(1E6-23341-00-00)

Unavailable

27

BOLT 2

(322-23356-00-00)

Unavailable

28

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

29

NUT

(322-23357-00-00)

Unavailable

30

BOLT (1E6)

90101-08340-00

Unavailable

31

BOLT (1E6)

90101-08340-00

Unavailable

32

.. WASHER, PLATE

92990-08600-00

Unavailable

33

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

34

NUT, HEXAGON

(90170-08180-00)

Unavailable

35

HOLDER, CABLE 2

(509-23319-00-00)

Unavailable

36

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

37

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

38

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

39

GASKET

509-23158-L0-00

Unavailable

40

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

Unavailable

41

.. WASHER, PLATE

92990-08600-00

Unavailable

42

NUT, HEXAGON

(90170-08176-00)

Unavailable

43

PLATE, NUMBER

322-23485-00-00

Unavailable

44

STAY, PLATE

431-23486-02-00

Unavailable

45

. BAND

288-23489-00-00

Unavailable

46

EMBLEM

322-23395-00-00

Unavailable
