FRONT FORK YZ100 E - F

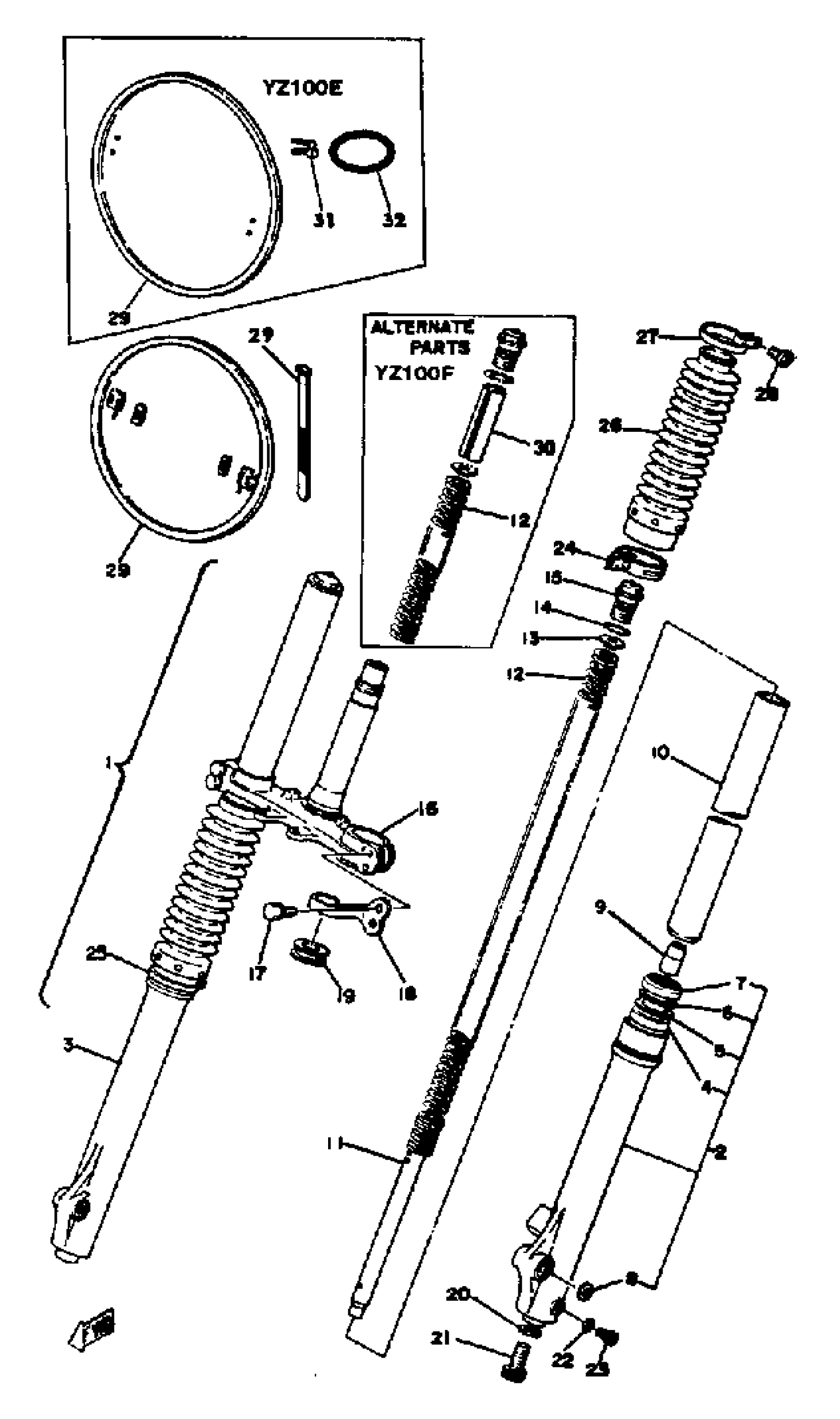

Yamaha YZ100D (YZ100D) 1977 FRONT FORK YZ100 E - F Diagram
#
1
FRONT FORK ASSEMBLY
(2N4-23101-00-00)
Unavailable
2
TUBE, OUTER 1
(2K5-23126-00-00)
Unavailable
3
TUBE, OUTER 2
(2K5-23136-00-00)
Unavailable
4
OIL SEAL
2K5-23145-00-00
Unavailable
5
.. WASHER, OIL SEAL
2K5-23146-00-00
Unavailable
6
RING, SNAP
15E-23153-00-00
Unavailable
7
DUST SEAL
3Y6-23144-00-00
Unavailable
8
WASHER, FELT
(2K5-23165-00-00)
Unavailable
10
INNER TUBE 1
(2K5-23110-00-00)
Unavailable
11
CYLINDER, FRTFRK
(2K5-23170-00-00)
Unavailable
12
SPRING, FRONT FORK
(2K5-23141-10-00)
Unavailable
12
SPRING, FRONT FORK
(2K5-23141-20-00)
Unavailable
12
DUST SEAL
3Y6-23144-00-00
Unavailable
13
. SEAT, SPRING UPPER
256-23142-60-00
Unavailable
14
PACKING(O-RING)
146-23114-00-00
Unavailable
15
BOLT, CAP
(2K5-23111-00-00)
Unavailable
16
UNDER BRACKET
(2K5-23340-00-33)
Unavailable
17
. BOLT, HEXAGON SOCKET HEAD
5X6-23181-L0-00
Unavailable
18
. HOLDER, CABLE
1W1-23317-01-00
Unavailable
19
GUIDE, WIRE
1W1-23389-00-00
Unavailable
20
GASKET
509-23158-L0-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
22
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
23
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
24
HOLDER, CABLE 1
(2K5-23318-00-00)
Unavailable
25
BAND
(2K5-23489-00-00)
Unavailable
26
BOOT, FRONT FORK
(2K5-23191-00-00)
Unavailable
27
BAND, BOOT
2K5-23192-00-00
Unavailable
28
SCREW
509-23194-L0-00
Unavailable
29
. BAND
2X4-23489-00-00
Unavailable
29
. BAND
2X4-23489-00-00
Unavailable
29
. PLATE, NUMBER
3R0-23485-00-00
Unavailable
29
HOSE
(90446-09158-00)
Unavailable
29
PLATE NUMBER
(99999-01016-00)
Unavailable
30
NO LONGER AVAILABLE
306-23118-60-00
Unavailable
31
STAY, PLATE
431-23486-02-00
Unavailable
32
O-RING (3.0-69.0)
93210-69355-00
Unavailable
