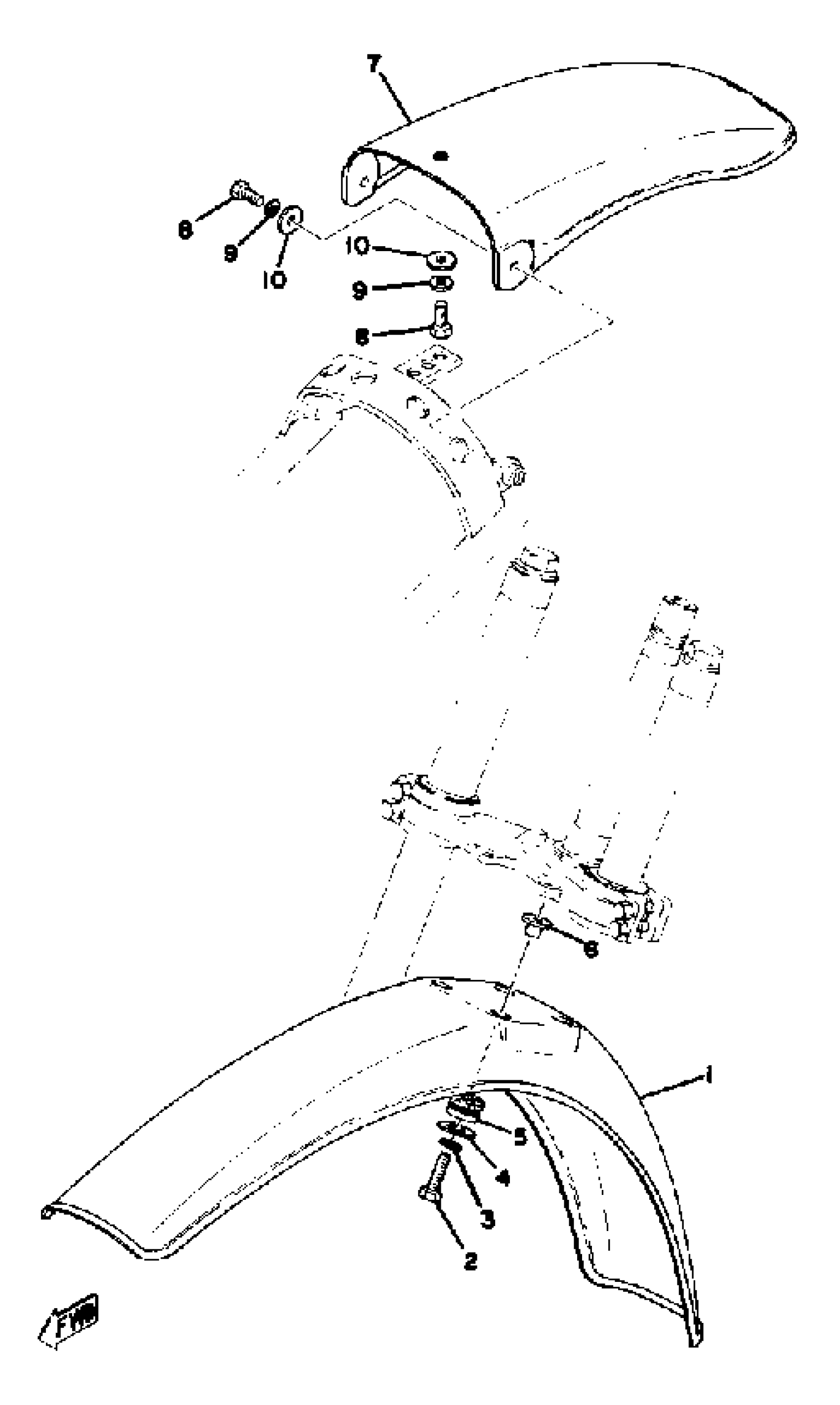

Yamaha YZ100D (YZ100D) 1977 FRONT FENDER - REAR FENDER YZ100D Diagram

#

Description

Price

1

FENDER, FRONT

453-21511-01-00

Unavailable

1

FENDER, FRONT

453-21511-01-00

Unavailable

2

BOLT, HEXAGON

97017-06030-00

$3.61

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

GROMMET

90480-14198-00

$9.49

6

COLLAR

90387-06158-00

$8.49

7

FENDER, REAR

(537-21611-00-00)

Unavailable

7

FENDER, REAR

(537-21611-10-00)

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE

90201-06380-00

$0.60
