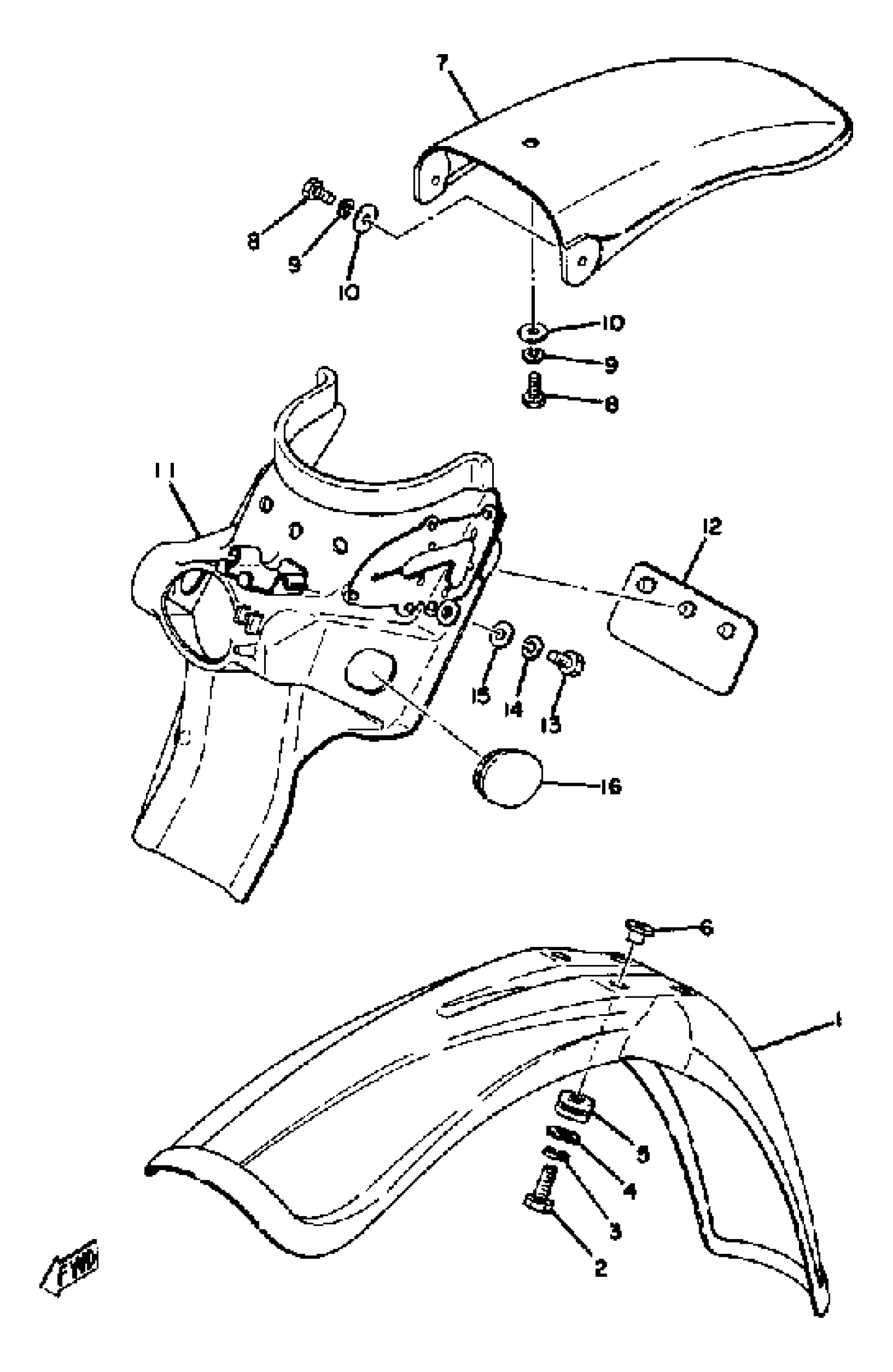

Yamaha YZ100D (YZ100D) 1977 FRONT FENDER - REAR FENDER YZ100 E - F Diagram

#

Description
Price

1

FENDER, FRONT

5X6-21511-01-00

$43.99

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

GROMMET

90480-14198-00

$9.49

6

COLLAR

90387-06158-00

$8.49

6

COLLAR 437216330000

90387-07391-00

Unavailable

7

FENDER, REAR

2K5-21611-00-00

Unavailable

8

BOLT(8CP)

97017-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE

90201-06380-00

$0.60

11

GUARD, MUD

(2K5-21620-00-00)

Unavailable

11

GUARD, MUD

(2W5-21620-00-00)

Unavailable

12

FLAP

1M1-21621-00-00

$16.49

13

BOLT(8CP)

97017-06014-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE

90201-06380-00

$0.60

16

GROMMET

(90480-01230-00)

Unavailable
