Description

Price

1

FRAME

(1G8-21110-02-33)

Unavailable

2

BOLT

90105-08024-00

$7.49

3

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

4

BOLT

90105-10037-00

Unavailable

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

5

WASHER (401)

90209-08050-00

$10.49

7

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

8

PROTECTOR, ENGINE

(537-21471-00-00)

Unavailable

9

BOLT (661)

97013-06012-00

$5.60

10

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

11

COVER, SIDE 1

537-21711-00-00

Unavailable

12

COVER, SIDE 2

537-21721-00-00

Unavailable

13

SEAL 1

537-21732-00-00

Unavailable

14

EMBLEM 7

(401-21787-00-00)

Unavailable

15

EMBLEM 6

1J4-21786-00-00

Unavailable

16

SCREW, BIND (705)

98980-06016-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

PLUG, BLIND

(537-25139-00-00)

Unavailable

19

TOOL KIT

(401-28100-11-00)

Unavailable

20

BAND

341-26397-01-00

Unavailable

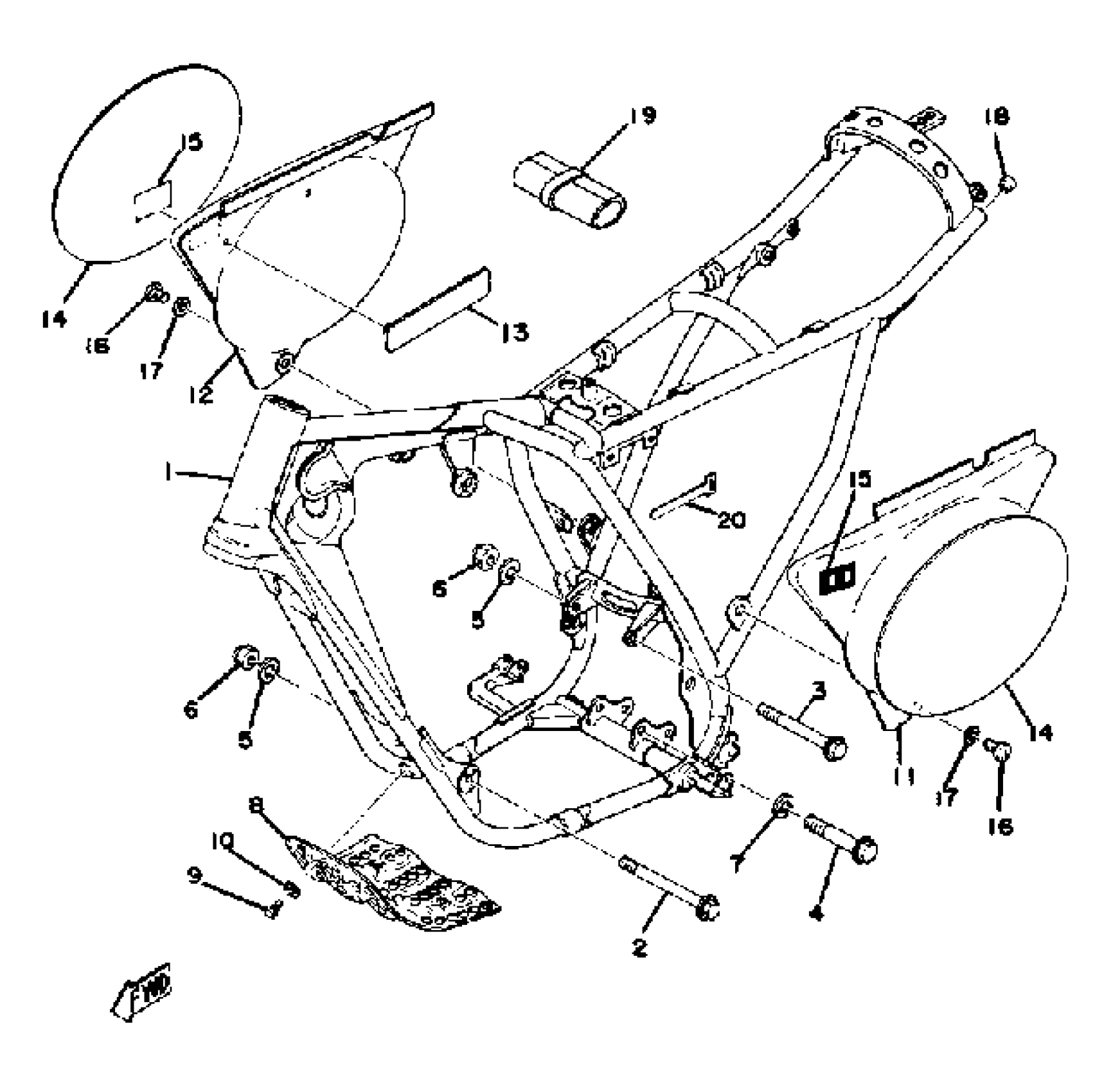

Yamaha YZ100D (YZ100D) 1977 FRAME - SIDE COVER YZ100D Diagram

FRAME

BOLT

BOLT, WASHER BASED (401)

BOLT

NUT, SELF-LOCKING (3Y2)

WASHER (401)

YBS67-10 WASHER, SPRING

PROTECTOR, ENGINE

BOLT (661)

WASHER, PLATE (4H7)

COVER, SIDE 1

COVER, SIDE 2

SEAL 1

EMBLEM 7

EMBLEM 6

SCREW, BIND (705)

WASHER, PLATE

PLUG, BLIND

TOOL KIT

BAND
