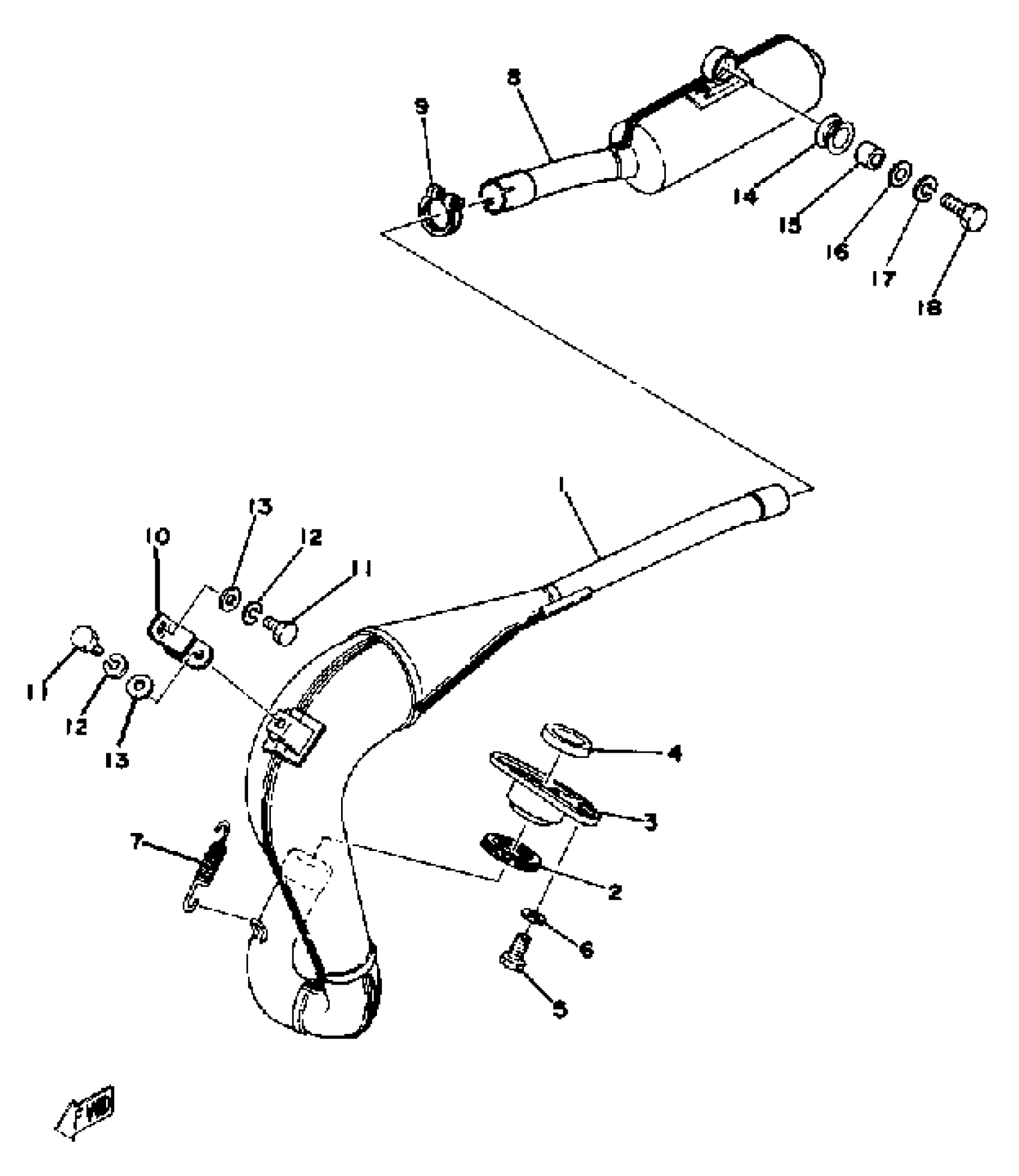

Yamaha YZ100D (YZ100D) 1977 EXHAUST YZ100 E - F Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(2K5-14610-00-00)

Unavailable

2

GASKET

248-14623-10-00

$7.99

3

NUT, RING

2K5-14612-00-00

Unavailable

4

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

WASHER, SPRING

92995-06100-00

Unavailable

7

SPRING, TENSION (1W4)

90507-20030-00

$14.99

8

SILENCER, EXHAUST

(2K5-14753-00-00)

Unavailable

9

BAND, SILENCER

537-14788-00-00

Unavailable

10

STAY, MUFFLER 2

1M1-14772-00-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

14

DAMPER

565-14747-00-00

Unavailable

15

COLLAR (437)

90387-08258-00

$10.49

16

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

BOLT, HEXAGON

97013-08030-00

Unavailable
