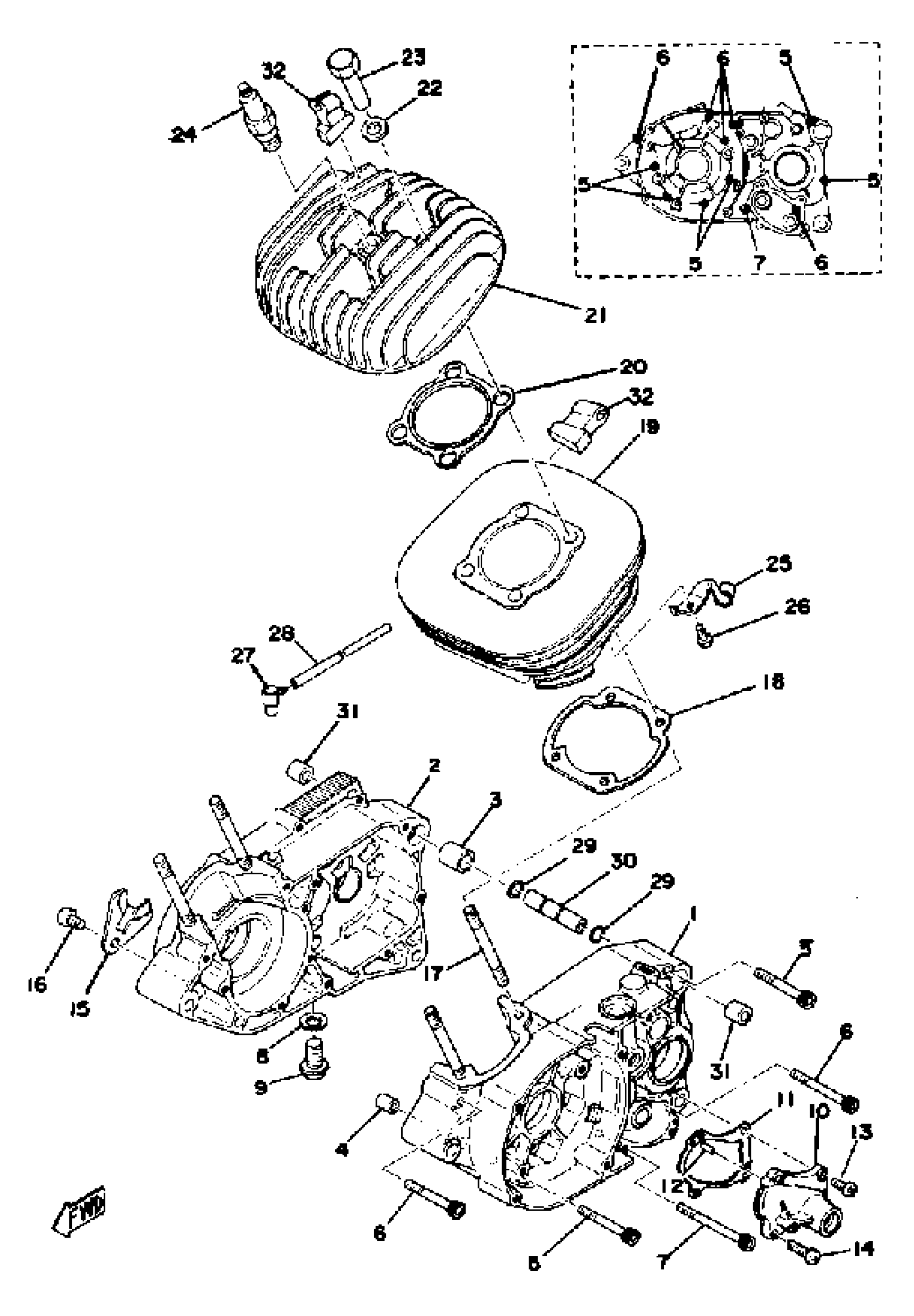

Yamaha YZ100D (YZ100D) 1977 CYLINDER - CRANKCASE YZ100D Diagram

#

Description
Price

1

CRANKCASE 1

(537-15111-00-00)

Unavailable

2

CRANKCASE 2

(537-15121-00-00)

Unavailable

3

PIN, DOWEL

99530-20020-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT,SOCKET

91317-06050-00

$3.88

6

BOLT,SOCKET

91317-06060-00

$3.76

7

BOLT, SOCKET

91317-06070-00

$4.99

8

GASKET (3JD1)

90430-12207-00

$7.99

9

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

10

COVER, SHIFTER 1

(1J4-15419-00-00)

Unavailable

11

GASKET, SHFTR COVER

1J4-15459-00-00

Unavailable

13

SCREW, PAN

98507-06014-00

$8.49

14

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

15

HOLDER (R.H)

304-15128-00-00

$6.99

16

SCREW, PAN

98507-08010-00

$8.49

17

BOLT (248-11361-00)

90116-08064-00

Unavailable

18

GASKET, CYLINDER

1WE-11351-00-00

Unavailable

19

CYLINDER 1

(1J4-11311-00-00)

Unavailable

20

GASKET, CYLINDER HEAD 1

1J4-11181-00-00

Unavailable

20

PIN,DOWEL (603)

93603-12007-00

Unavailable

21

HEAD, CYLINDER 1

(1J4-11111-00-00)

Unavailable

22

WASHER PLATE 278111750000

90201-12362-00

Unavailable

23

NUT (3V6)

90179-08303-00

Unavailable

24

BR10EIX NGK SPLUG 4PK

BR1-0EIX0-00-00

Unavailable

25

HOLDER, CLUTCH CABLE

525-15441-01-00

Unavailable

26

BOLT (661)

97013-06012-00

Unavailable

27

BREATHER

583-15371-00-00

Unavailable

28

HOSE (L570)

90445-07MF1-00

Unavailable

29

SPACER, ENGINE MOUNT

401-15317-00-00

Unavailable

30

O-RING (P95)

93210-11073-00

Unavailable

31

DAMPER

90388-08003-00

Unavailable

32

ABSORBER 1

(537-11161-00-00)

Unavailable
