CRANKSHAFT - PISTON YZ100D

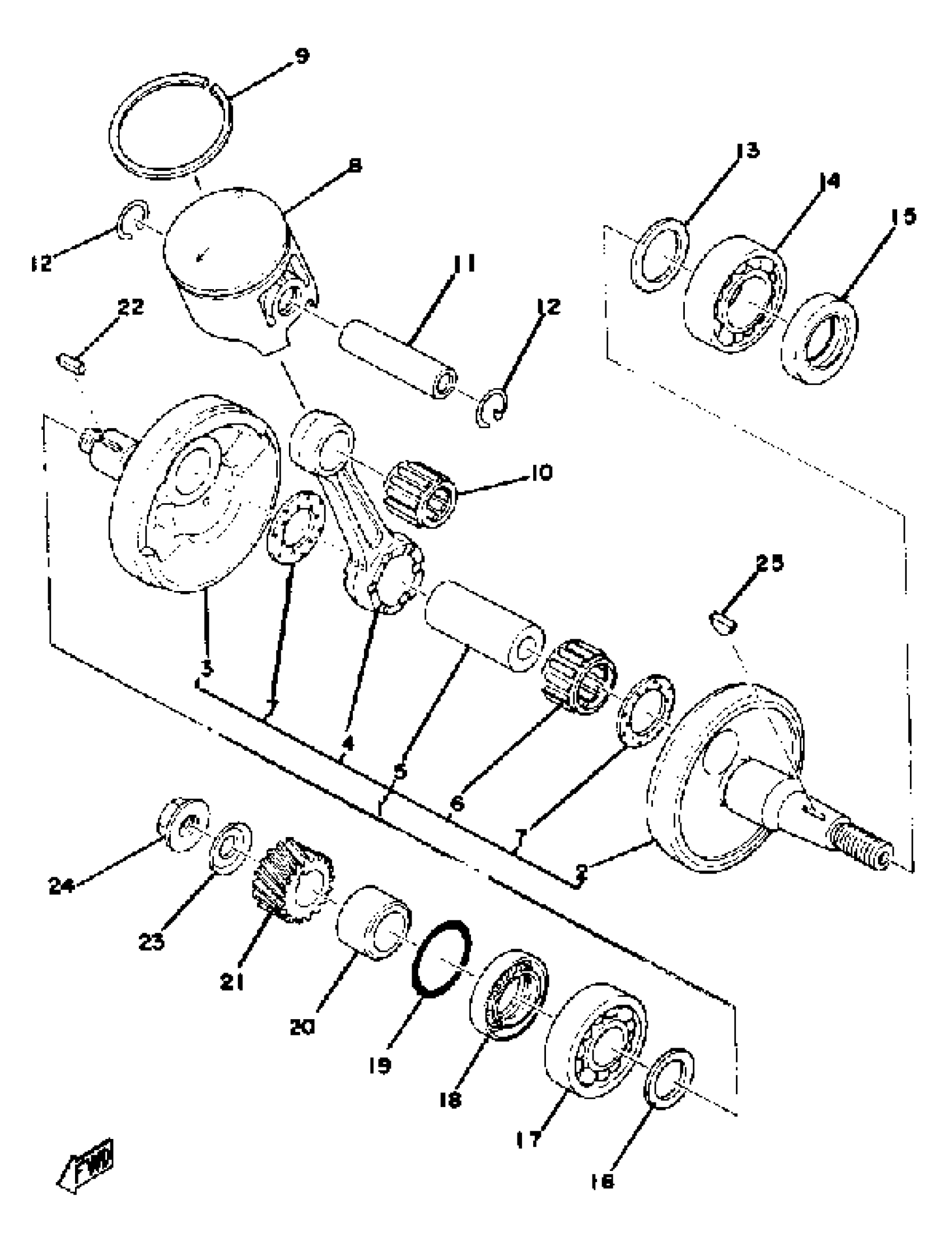

Yamaha YZ100D (YZ100D) 1977 CRANKSHAFT - PISTON YZ100D Diagram
#
1
CRANKSHAFT ASSEMBLY
(1G8-11400-01-00)
Unavailable
2
CRANK (L.H)
1W1-11412-01-00
Unavailable
3
CRANK 2
(525-11422-00-00)
Unavailable
4
. ROD, CONNECTING
3R2-11651-01-00
Unavailable
6
BEARING (3R3)
93310-422H0-00
Unavailable
7
WASHER (29L)
90209-22248-00
Unavailable
8
PISTON STD
(3R2-11631-01-96)
Unavailable
8
PISTON 1O/S 0.25 (1ST O/S 0.25MM)
3R2-11635-01-00
Unavailable
8
PISTON 2 O/S 0.50 (2ND O/S 0.50MM)
3R2-11636-01-00
Unavailable
8
PISTON 3 O/S 0.75 (2RD O/S 0.75MM)
3R2-11637-01-00
Unavailable
8
PISTON 4 O/S 1.00 (4TH O/S 1.00MM)
3R2-11638-01-00
Unavailable
9
RING, PISTON STD (STD)
1G9-11601-00-00
Unavailable
9
RING, PISTON 1ST (1ST O.S.)
1G9-11611-10-00
Unavailable
9
RING, PISTON 2ND
(1G9-11611-20-00)
Unavailable
9
RING, PISTON 3RD
1G9-11611-30-00
Unavailable
9
RING, PISTON 4TH
(1G9-11611-40-00)
Unavailable
9
RING, PISTON STD (STD)
2W5-11611-00-00
Unavailable
9
RING, PISTON 1ST (1ST O/S)
2W5-11611-10-00
Unavailable
9
RING, PISTON 2ND (2ND O/S)
2W5-11611-20-00
Unavailable
9
RING, PISTON 3RD (3RD O/S)
2W5-11611-30-00
Unavailable
9
RING, PISTON 4TH (4TH O/S)
2W5-11611-40-00
Unavailable
10
BEARING, NEEDLE (24X)
93310-216L2-00
Unavailable
11
PIN, PISTON
1J4-11633-00-00
Unavailable
12
CIRCLIP (137-11634-00)
93450-17025-00
Unavailable
13
. SHIM, CRANK 1
132-11561-00-03
Unavailable
13
SHIM, CRANK 1
132-11561-00-05
Unavailable
14
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
15
OIL SEAL (5V6)
93103-25125-00
Unavailable
16
SHIM, CRANK 1
136-11561-00-03
Unavailable
16
SHIM, CRANK 1
136-11561-00-04
Unavailable
16
SHIM, CRANK 1
136-11561-00-05
Unavailable
16
SHIM, CRANK 1
136-11561-00-06
Unavailable
16
SHIM, CRANK 1
136-11561-00-07
Unavailable
16
SHIM, CRANK 1
136-11561-00-08
Unavailable
17
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
18
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
19
O-RING(3KX)
93210-180A6-00
Unavailable
20
COLLAR, DISTANCE (525)
90387-20488-00
Unavailable
21
GEAR, PRI DRIVE
525-16111-00-00
Unavailable
22
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
23
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
24
NUT(1EE)
90179-12659-00
Unavailable
25
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
