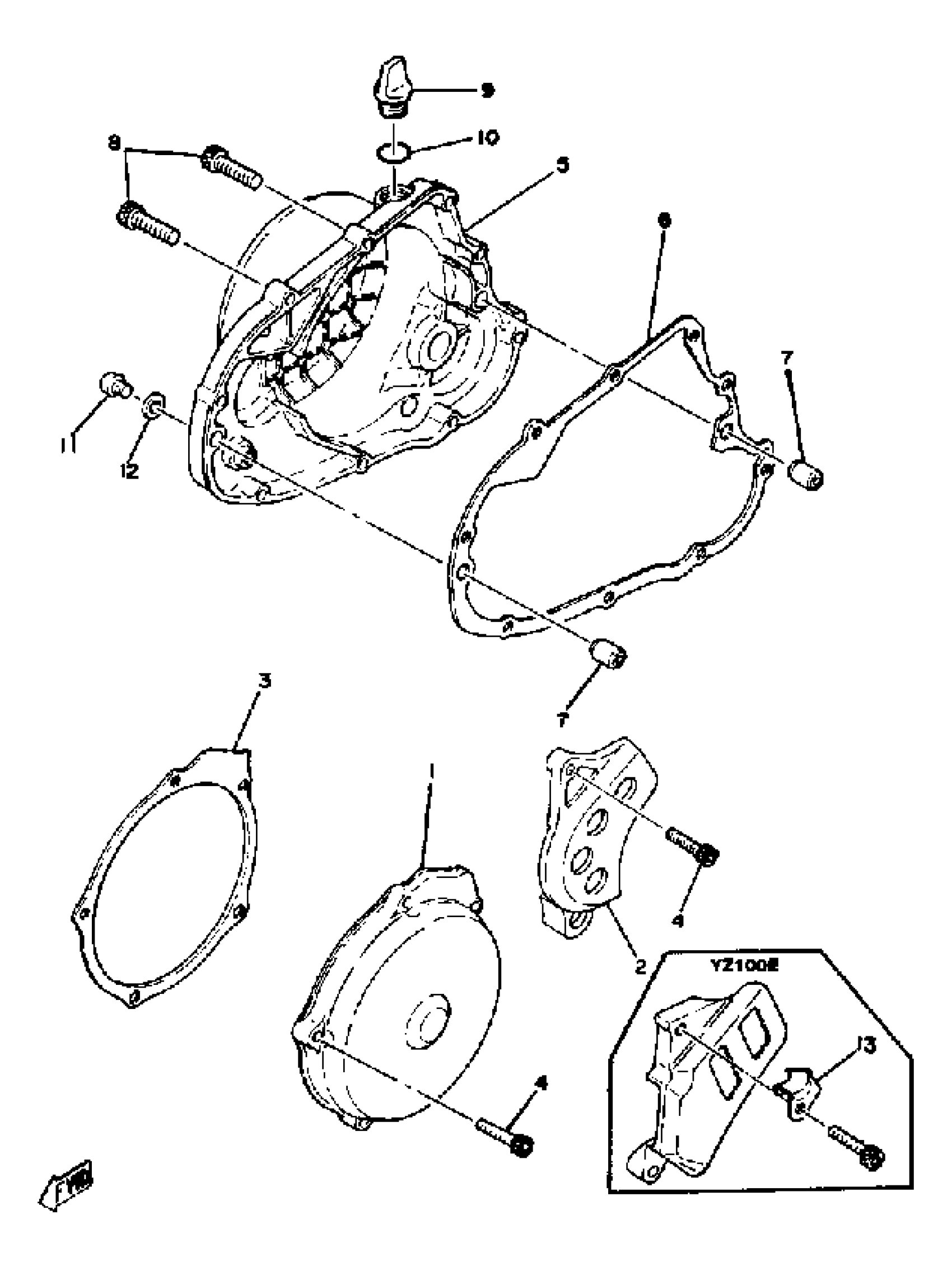

Yamaha YZ100D (YZ100D) 1977 CRANKCASE COVER YZ100 E - F Diagram

COVER, CRANKCASE L

1W1-15411-00-00

Unavailable

COVER, CRANKCASE L

2W5-15411-00-00

Unavailable

COVER, CRANKCASE R

1W1-15421-01-00

Unavailable

COVER, CRANKCASE R

2W5-15421-00-00

Unavailable

GASKET 1

1W1-15455-01-00

Unavailable

GASKET 1

2W5-15455-01-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

COVER, CRANKCASE 3

1W1-15431-00-00

Unavailable

GASKET, CRANKCASE COVER 1

18G-15451-03-00

$28.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

O-RING (26H)

93210-14579-00

$7.49

SCREW, PAN

98517-06008-00

$8.49

GASKET 838153840000

90430-06016-00

Unavailable

CLAMP

90465-10119-00

Unavailable
