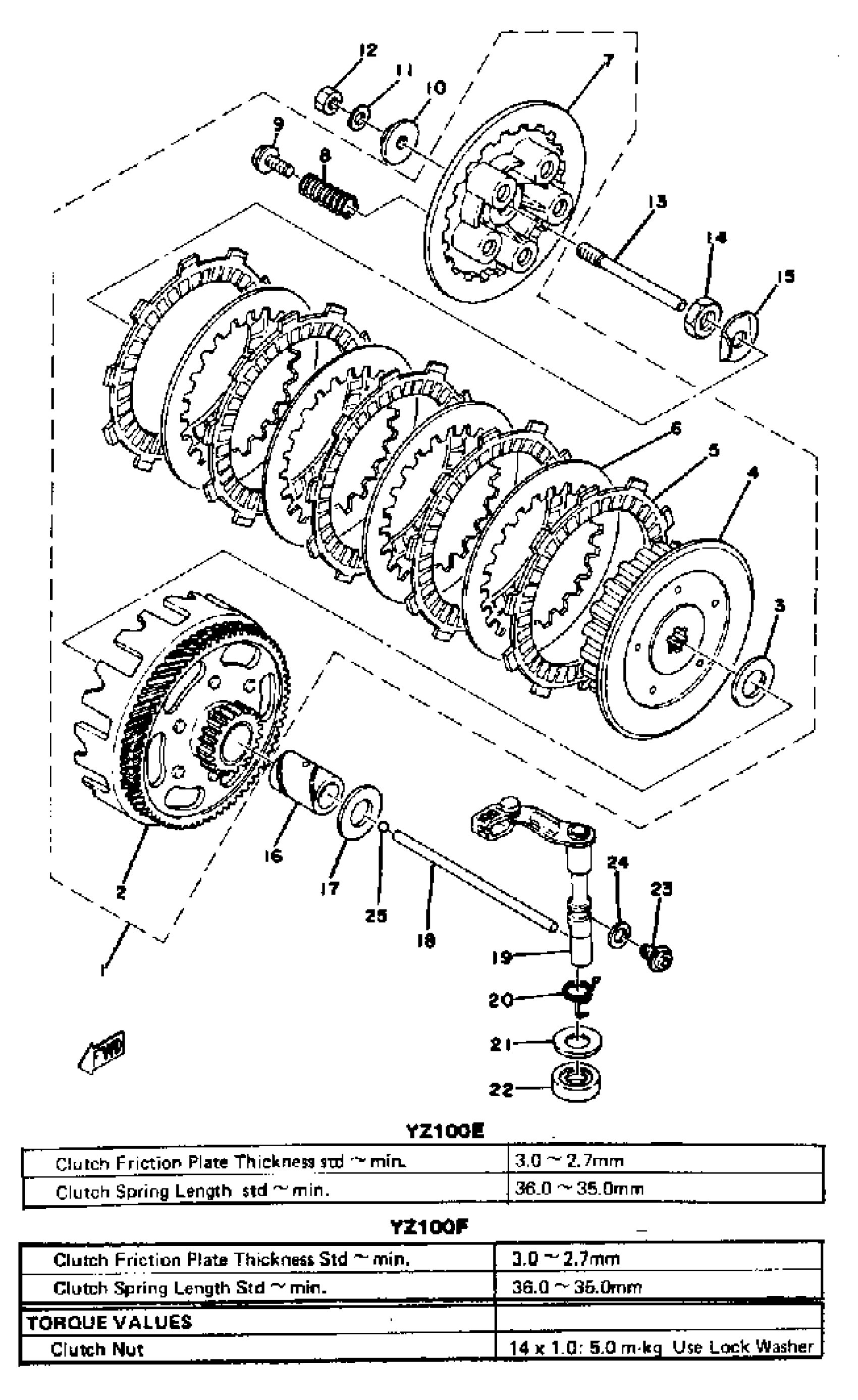

Yamaha YZ100D (YZ100D) 1977 CLUTCH YZ100 E - F Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(2K5-16301-00-00)

Unavailable

2

. PRI DRVN GEARCOMP (71T)

2K5-16150-00-00

Unavailable

3

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

4

. BOSS, CLUTCH

1J4-16371-00-00

Unavailable

5

PLATE, FRICTION

537-16321-00-00

$17.49

6

PLATE, CLUTCH 2

137-16325-80-00

$16.49

7

. PLATE, PRESSURE 1

2A6-16351-00-00

Unavailable

8

SPRING, COMPRESSION (400)

90501-20361-00

$13.49

9

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

10

PLATE, PUSH

1W1-16358-01-00

$23.99

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

ROD, PUSH

1W1-16356-02-00

Unavailable

14

NUT, HEXAGON

90170-14171-00

$9.49

15

WASHER, LOCK (2K6)

90215-14204-00

$9.49

16

SPACER (525)

90560-17147-00

Unavailable

17

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

18

ROD, PUSH 2

1W1-16357-00-00

Unavailable

19

PUSH LEVER ASSEMBLY

(1W1-16380-00-00)

Unavailable

20

SPRING, TORSION (1W1)

90508-20345-00

Unavailable

21

WASHER PLATE 150251530000

90201-14217-00

Unavailable

22

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

23

SCREW (1M1)

90149-08108-00

Unavailable

24

GASKET(3AJ)

90430-08204-00

Unavailable

25

BALL

93503-16003-00

Unavailable
