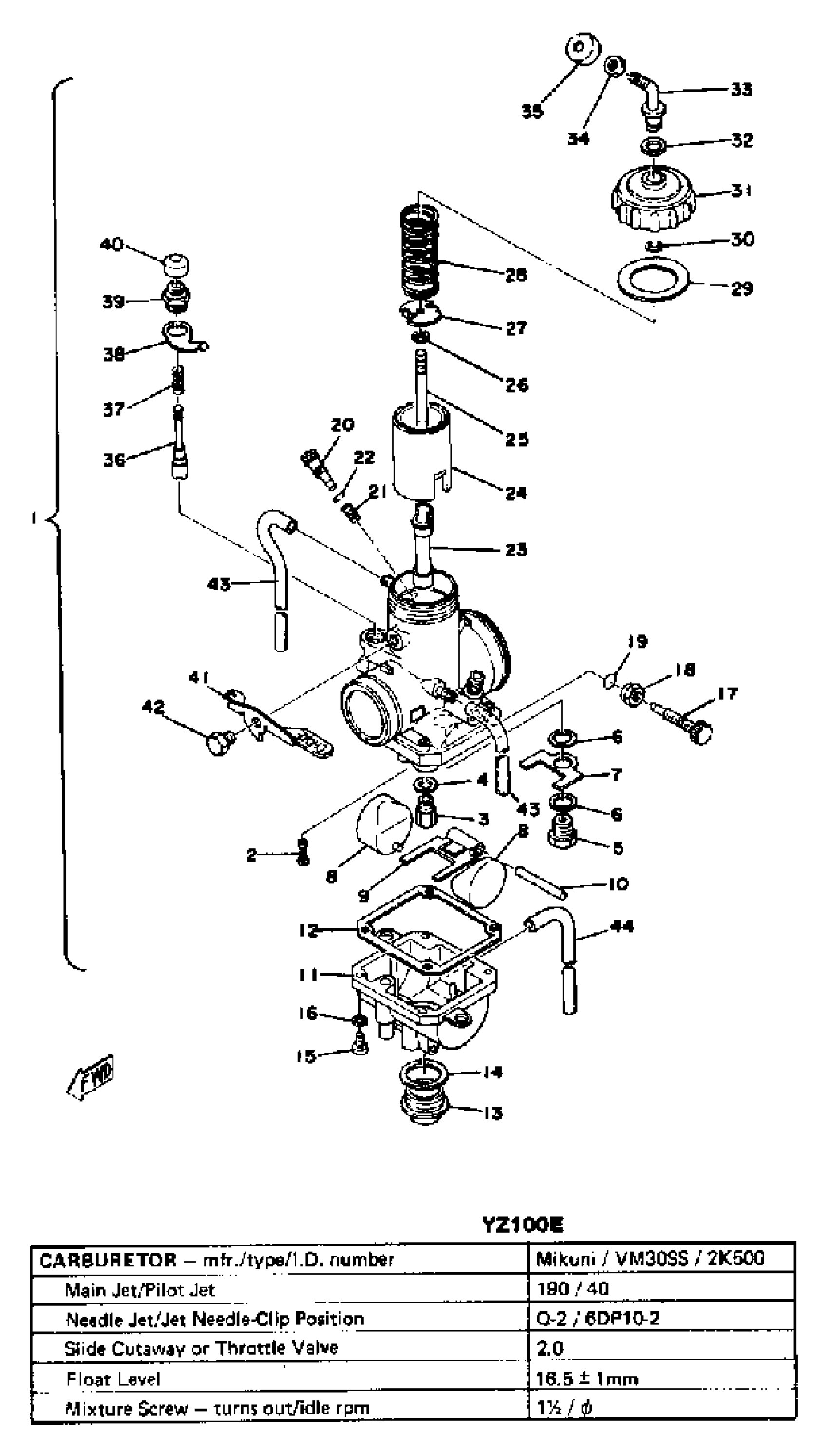

Yamaha YZ100D (YZ100D) 1977 CARBURETOR YZ100 E - F Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(2K5-14101-00-00)

Unavailable

1

CARBURETOR ASSEMBLY 1

(2W5-14101-00-00)

Unavailable

2

. JET, PILOT #40

193-14142-40-A1

Unavailable

3

JET, MAIN #180

137-14143-36-A1

Unavailable

3

JET,MAIN #190

137-14143-38-A0

Unavailable

3

JET, MAIN #200

137-14143-40-A1

$13.49

3

JET, MAIN #210

137-14143-42-A1

Unavailable

4

WASHER, MAIN JET

(537-14153-00-00)

Unavailable

5

VALVE SEAT ASSY

168-14190-28-00

$36.99

6

WASHER, VALVE SEAT

214-14195-00-00

$7.99

7

PLATE

(537-14146-00-00)

Unavailable

8

. FLOAT

280-14185-00-00

Unavailable

9

ARM, FLOAT

(2K5-14187-00-00)

Unavailable

10

PIN, FLOAT

537-14186-00-00

$7.99

11

BODY, FLOAT CHAMBER 1

(537-14181-00-00)

Unavailable

12

. GASKET, FLOAT CHAMBER

537-14184-00-00

Unavailable

13

PLUG, SCREW

(537-14115-00-00)

Unavailable

14

WASHER,SCREW PLUG

278-14117-00-00

Unavailable

15

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

. SCREW, THROTTLE

537-14122-00-00

Unavailable

18

. NUT, CABLE ADJUSTING

537-14161-00-00

Unavailable

19

O-RING

214-14147-00-00

Unavailable

20

AIR SCREW SET

10W-14104-00-00

Unavailable

21

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

22

O-RING (493-CARB.)

354-14147-00-00

Unavailable

23

. NOZZLE, MAIN

278-14141-52-00

Unavailable

24

VALVE, THROTTLE 1

(537-14112-20-00)

Unavailable

25

. NEEDLE

275-14116-10-00

Unavailable

26

CLIP

3FA-14137-00-00

Unavailable

27

. SEAT, SPRING

537-14136-00-00

Unavailable

28

. SPRING, THROTTLE VALVE

537-14131-00-00

Unavailable

29

. GASKET

2K5-14198-00-00

Unavailable

30

CLIP

363-14137-00-00

Unavailable

31

. TOP, MIXING CHAMBER

2K5-14158-00-00

Unavailable

32

GASKET

363-14198-00-00

Unavailable

33

. GUIDE, CABLE

2K5-14155-00-00

Unavailable

33

GUIDE, CABLE

(363-14155-01-00)

Unavailable

34

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

35

CAP

3X3-14169-00-00

Unavailable

36

. PLUNGER, STARTER

174-14171-00-00

Unavailable

37

. SPRING, PLUNGER

500-14135-00-00

Unavailable

38

. PLATE, STARTER LEVER

537-14178-00-00

Unavailable

39

. CAP, PLUNGER

802-14174-00-00

Unavailable

40

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

41

. LEVER, STARTER 1

537-14175-00-00

Unavailable

42

. BOLT, HOLDING

537-14162-00-00

Unavailable

43

. PIPE, OVERFLOW

310-14196-00-00

Unavailable

44

PIPE, AIR VENT

183-14197-01-00

Unavailable
