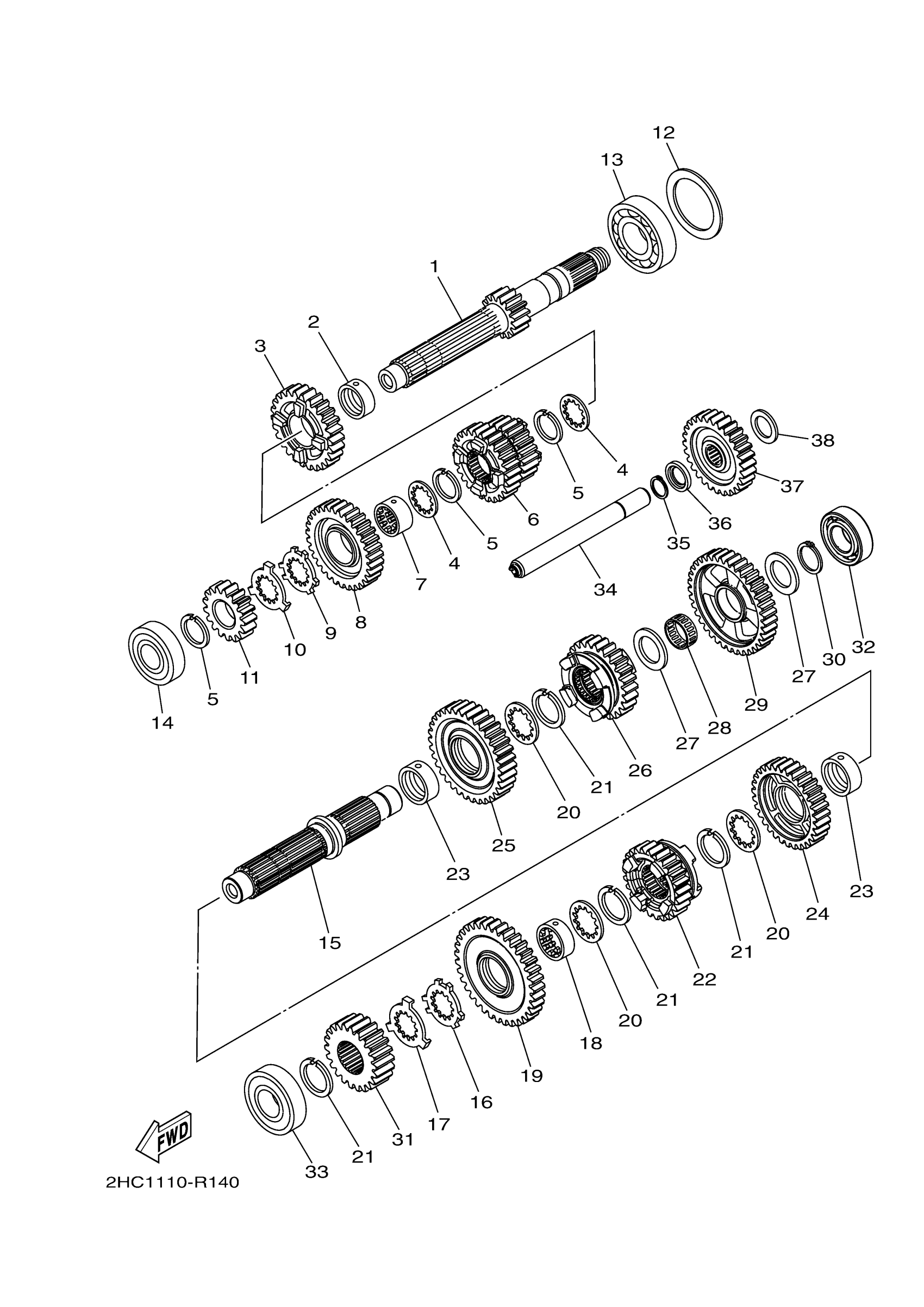

Yamaha YXZ10YPXGO (YXZ1000 EPS) 2HC41 2016 TRANSMISSION Diagram
#
Description
Price
16
WASHER, CLAW
90214-29002-00
Unavailable
17
WASHER, CLAW
90214-28002-00
Unavailable
18
COLLAR
90387-28004-00
Unavailable
19
GEAR, 1ST WHEEL (35T)
2HC-17211-00-00
Unavailable
20
WASHER
90209-28008-00
Unavailable
21
CIRCLIP
93440-31187-00
Unavailable
22
GEAR SET (G5W/G3W)
99999-04428-00
Unavailable
23
COLLAR
90387-31003-00
Unavailable
24
GEAR SET (G3W/G5W)
99999-04317-00
Unavailable
25
GEAR SET(G4W/G2W)
99999-04429-00
Unavailable
26
GEAR SET(G4W/G2W)
99999-04429-00
Unavailable
27
WASHER, PLATE(1FK)
90201-256K6-00
Unavailable
28
BRG,CYL-CAL ROLLER 15G KY
93310-32590-00
Unavailable
29
GEAR, REVERSE WHEEL 2 (37T)
2HC-17253-00-00
Unavailable
30
CIRCLIP (256)
93410-25017-00
Unavailable
31
GEAR, MIDDLE DRIVE (22T)
2HC-17582-00-00
Unavailable
32
BEARING
93306-20595-00
Unavailable
33
BEARING
93306-30585-00
Unavailable
34
AXLE, IDLE
2HC-17432-00-00
Unavailable
35
CIRCLIP (525)
93410-17037-00
Unavailable
36
RETAINER, SPRING
2HC-18473-00-00
Unavailable
37
REVERSE WHEEL ASSY (28T)
2HC-1724A-00-00
Unavailable
38
WASHER PLATE 306155610000
90201-17257-00
Unavailable
