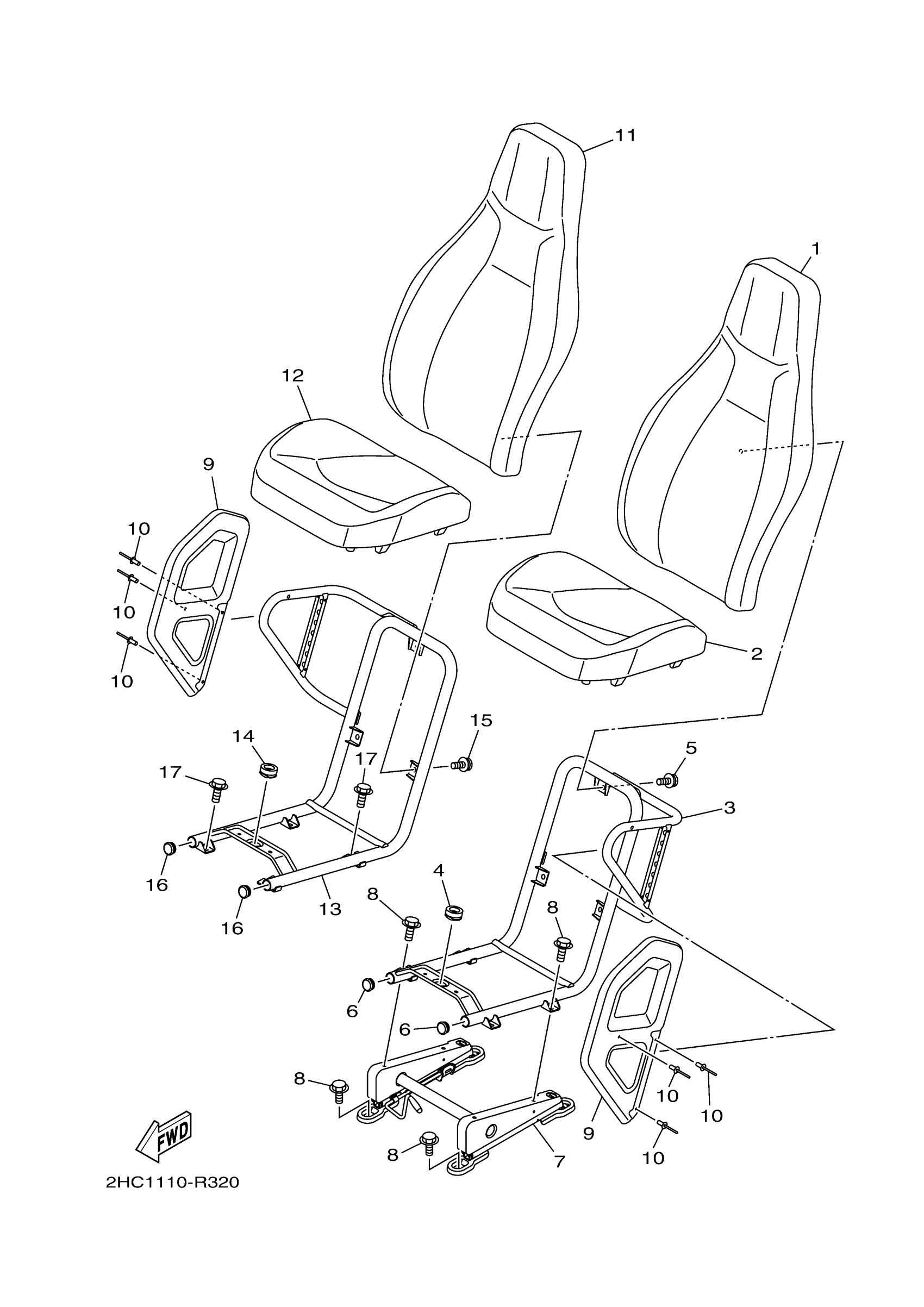

Yamaha YXZ10YPXGO (YXZ1000 EPS) 2HC41 2016 SEAT Diagram

#

Description
Price

1

SEATASSY

2HC-F4790-01-00

Unavailable

2

SEATASSY

2HC-F4700-01-00

$672.99

3

FRAME, SEAT 1

2HC-F473C-01-00

Unavailable

4

GROMMET

1XD-F4742-00-00

$3.69

5

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

6

PLUG

2HC-F2417-00-00

$2.75

7

ADJUSTER ASSY

2HC-F7270-00-00

$393.99

8

BOLT, FLANGE

95817-08012-00

$5.49

9

COVER,2

2HC-F475X-01-00

$40.99

10

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

11

SEATASSY

2HC-F4790-01-00

Unavailable

12

SEATASSY

2HC-F4700-01-00

$672.99

13

FRAME, SEAT 2

2HC-F473D-01-00

Unavailable

14

GROMMET

1XD-F4742-00-00

$3.69

15

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

16

PLUG

2HC-F2417-00-00

$2.75

17

BOLT, FLANGE

95817-08012-00

$5.49
