- YXZ10YPXGO (YXZ1000 EPS) 2HC41 2016
RADIATOR HOSE

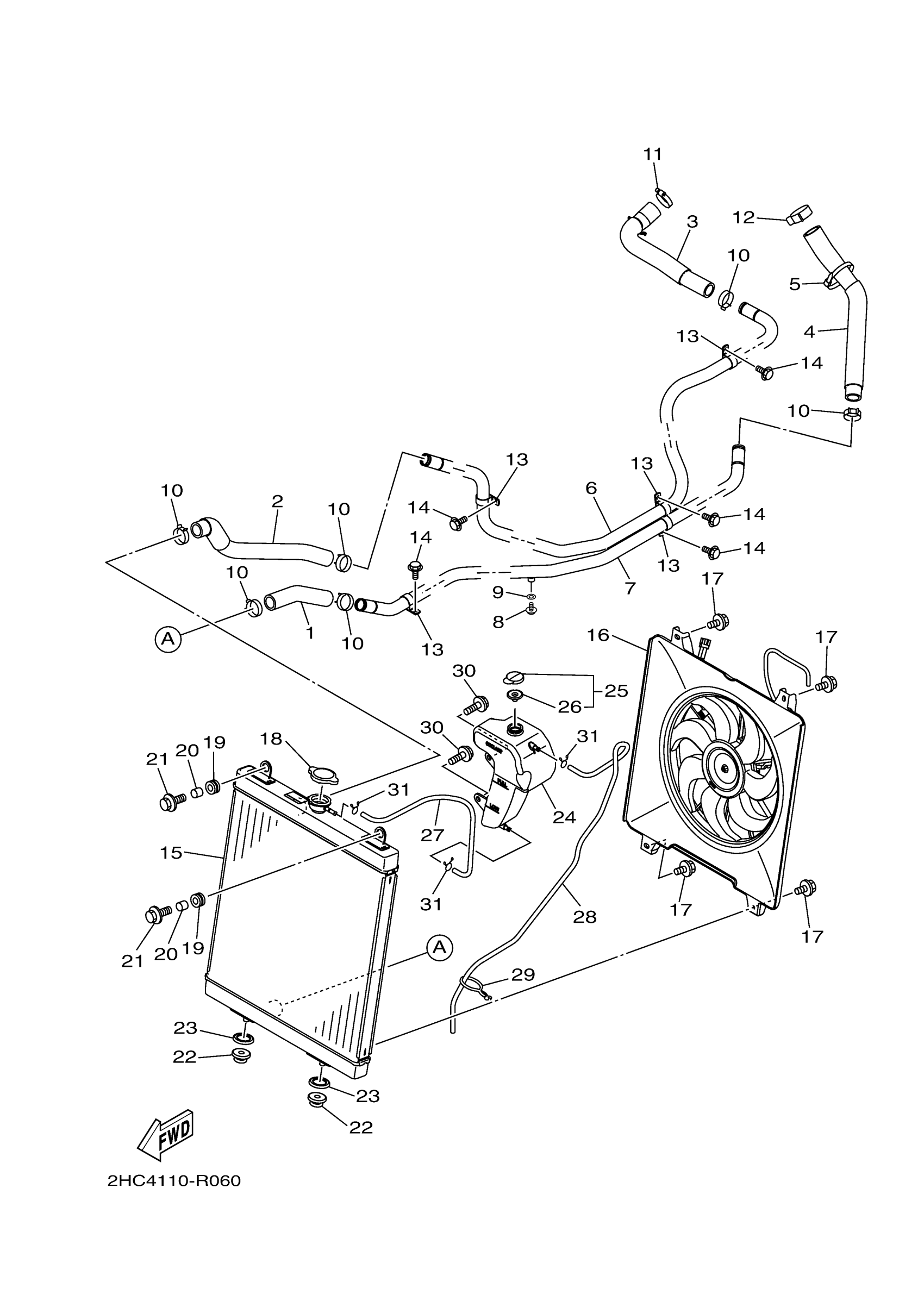

Yamaha YXZ10YPXGO (YXZ1000 EPS) 2HC41 2016 RADIATOR HOSE Diagram
#
1
HOSE 1
2HC-E2576-00-00
$8.99
2
HOSE 2
2HC-E2577-00-00
$15.49
3
HOSE 3
2HC-E2578-00-00
$16.49
4
HOSE 4
2HC-E2579-00-00
$16.49
5
BAND, SWITCH CORD
25G-83936-01-00
$4.78
6
PIPE, WATER
2HC-E2564-00-00
Unavailable
7
PIPE 3
2HC-E2483-00-00
Unavailable
8
BOLT, FLANGE
95022-06008-00
$8.49
9
GASKET 256113960000
90430-06014-00
Unavailable
10
CLIP
90467-26189-00
$7.49
11
HOSE CLAMP ASSY
90450-35001-00
$5.60
12
CLIP
90467-310A0-00
$4.72
13
CLAMP
90461-12800-00
$2.28
14
BOLT, FLANGE
90105-06831-00
$2.29
15
RADIATOR COMP
2HC-E2461-00-00
$237.99
16
BLOWER ASSY
2HC-E2405-00-00
Unavailable
17
BOLT, BLOWER HOLDI
1XD-E2675-00-00
Unavailable
18
CAP, RADIATOR
1XD-E2462-00-00
Unavailable
19
GROMMET(2GH)
90480-12475-00
Unavailable
20
COLLAR
90387-06113-00
Unavailable
21
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
22
GROMMET
90480-18004-00
Unavailable
23
WASHER
90209-24011-00
Unavailable
24
TANK, RECOVERY
2HC-F1871-00-00
Unavailable
25
CAP
1AA-21815-00-00
Unavailable
26
GASKET
1AA-21874-00-00
Unavailable
27
HOSE (L600)
90445-083J5-00
Unavailable
28
HOSE (L1500)
90445-084J0-00
Unavailable
29
CLAMP
90464-37257-00
Unavailable
30
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
31
CLIP 101235600
90467-08003-00
Unavailable
